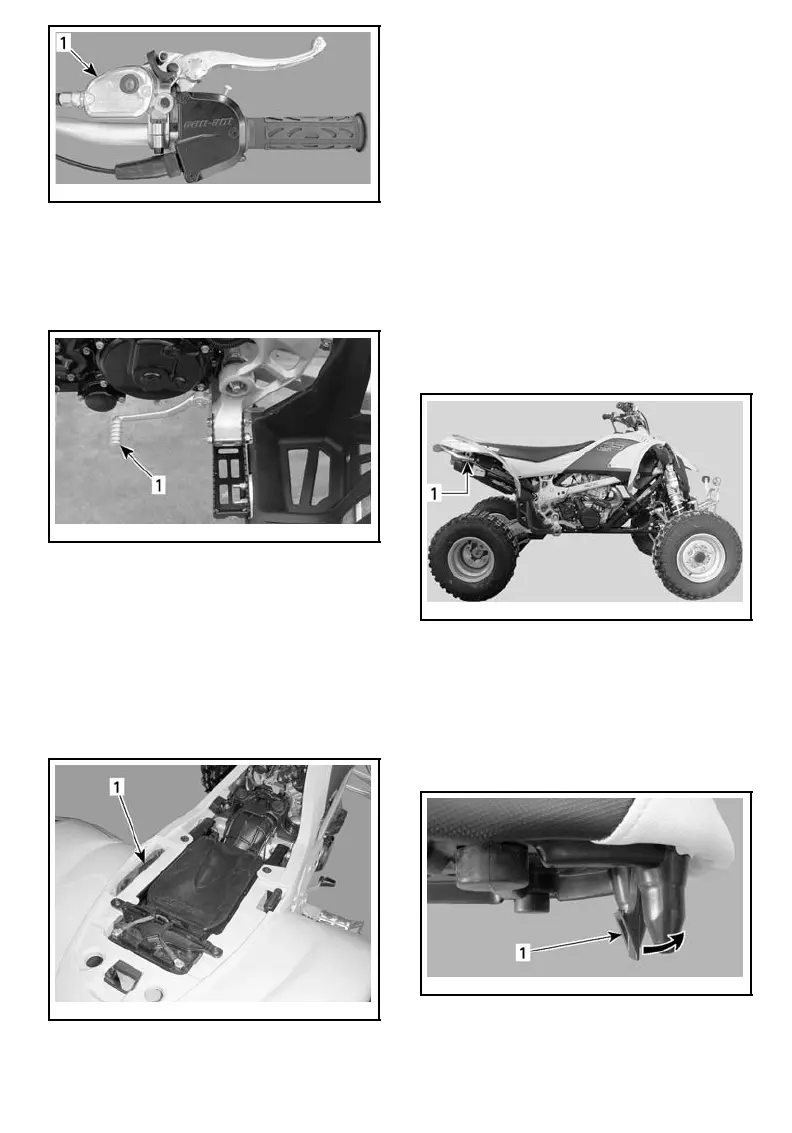

vmo2008-011-010_a
1. Front brake fluid reservoir
Refer to LIQUIDS section to check
brake fluid level correctly.
10) Gearshift Pedal
vmo2008-011-011_a
LH SIDE OF VEHICLE
1. Gearshift pedal
Refer to SHIFTING THE TRANSMIS-
SION in OPERATING INSTRUCTIONS
section for more details.
11) Tool Kit
The tool kit is located in the service
compartment underneath seat.
vmo2008-011-029_a
1. Tool kit
The tool kit contains tools for basic
maintenance.
The tools included in the tool kit are:
– pliers (1)
– screwdriver (1)
– open wrench 10/13 mm (1)
– socket wrench 16/18 mm (1)
– tire pressure gauge (1)
– clutch adjustments tool (1).
12)Seat Latch
Located underneath rear end of seat.
It allows the removal of seat to give
access to air filter housing and service
compartment.
vmo2008-011-026_c
1. Seat latch
Seat Removal
Pull latch rearward while gently lifting
rear of seat. Continue lifting move-
ment until you can release seat retain-
ing devices, then completely remove
seat.
vmo2008-011-030_a
1. Seat latch
_____________________
69
