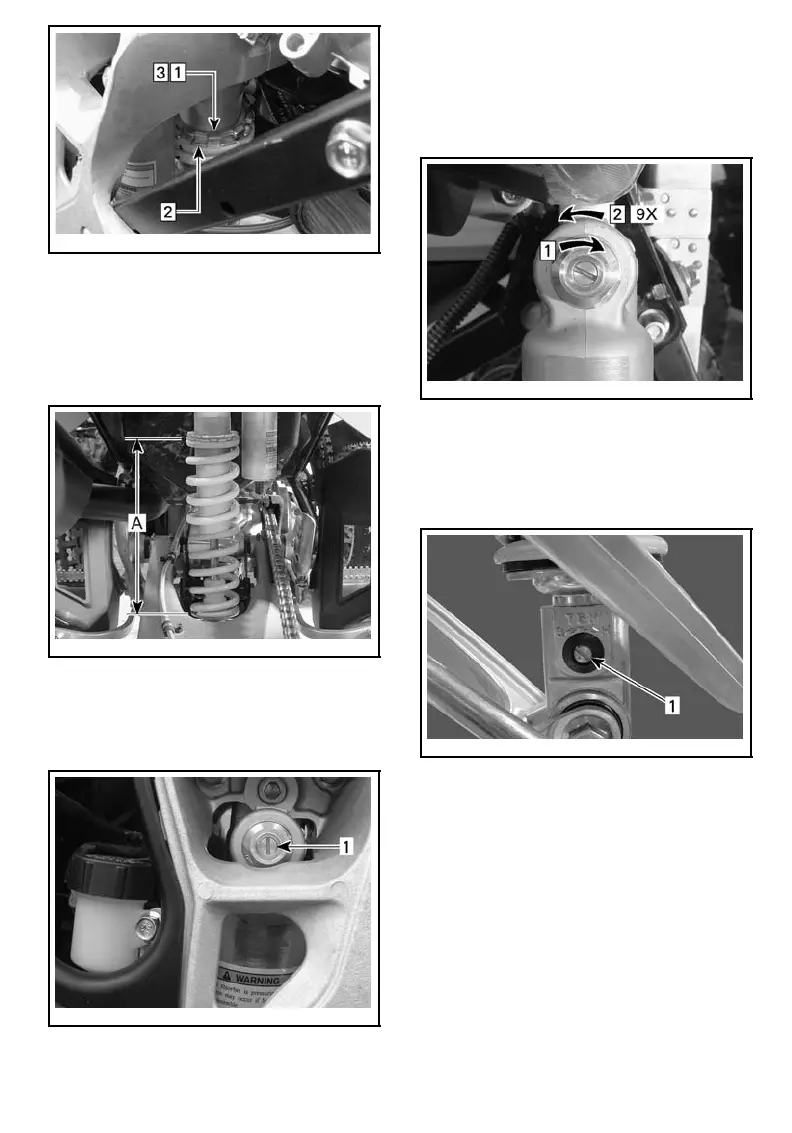

PRELOAD ADJUSTMENT
Step 1: Loosen top locking ring
Step 2: Turn adjusting ring accordingly
Step 3: Tighten top locking ring
Lift the rear of the vehicle. Spring
length should be measured without
load on the wheels.
vmo2008-011-079_a
SPRING LENGTH — FACTORY SETTING
A. 262 mm (10 in)
Compression
Use a flat screwdriver to adjust it.
vmo2008-011-060_a
1. Compression adjuster (flat screwdriver)
First, turn compression adjuster clock-
wise until it stops.
Then, turn compression adjuster
counterclockwise (9 clicks) to return
to factory setting.
vmo2008-011-078_a
FACTORY SETTING
Step 1: Turn clockwise until it stops
Step 2: Turn counterclockwise (9 clicks)
Rebound
Use a flat screwdriver to adjust it.
vmo2008-011-075_a
1. Rebound adjuster (flat screwdriver)
First, turn rebound adjuster clockwise
until it stops.
Then, turn rebound adjuster counter-
clockwise (9 clicks) to return to facto-
ry setting.
