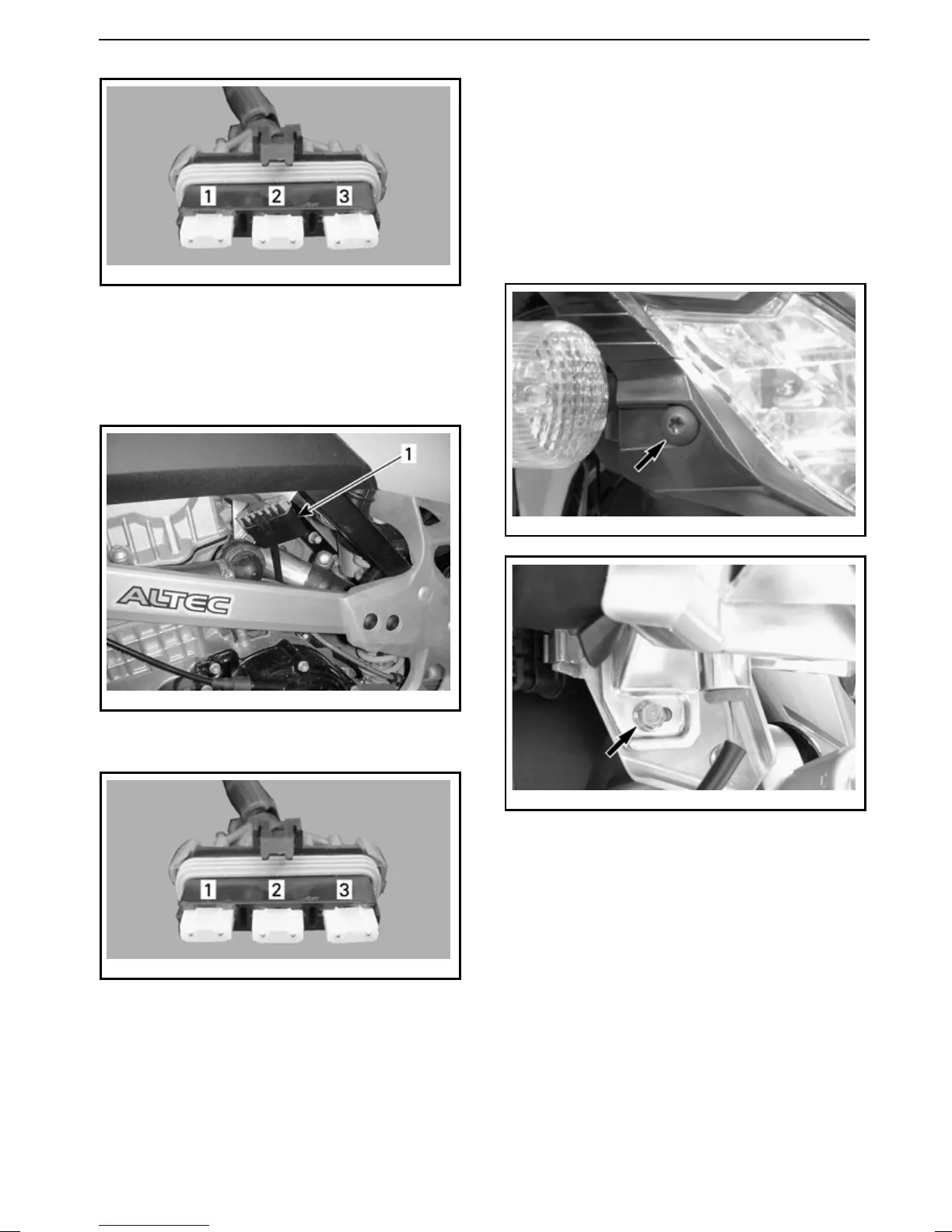

MAINTENANCE PROCEDURES
vmo2008-011-081_a
FUSES DESCRIPTION
1. Main (30 A)
2. Charging system (20 A)
3. Turn signal (CE) (5 A)
Fuses on LH Side of Engine
vmo2008-011-037_a
FUSES LOCATION
1. Fuse holder
vmo2008-011-081_a
FUSES DESCRIPTION
1. Cooling fan and accessories (20 A)
2. ECM (Engine Control Module) (5 A)
3. Fuel pump (15 A)
Lights
Beam Aiming Adjustment
To adjust beam, proceed as follows.
Loosen the bolts shown on the fol-
lowing illustrations but do not remove
them.
vmo2008-018-039_a
vmo2008-018-040_a
Adjust headlight housing angle by
hand.
Adjust both headlights evenly.
Tighten screw when proper adjust-
ment is reached.
Headlights Bulbs Replacement
Each headlight has two bulbs, one
headlight bulb and one position lamp
bulb.
_____________________
103
