MAINTENANCE PROCEDURES
WARNING
Always wear eye protection.
Chemicals can cause a rash break
out and an injury to your eyes.
Wipe off any oil spillage on oil tank.
Install a new O-ring on the oil tank out-
let fitting.
Install the oil tank outlet fitting on the
oil tank.
Carefully reinstall all previously re-
moved parts.
NOTICE
Take care not to damage
O-ring while inserting outlet fitting
into oil tank. Apply oil on O-ring to
ease installation.
vmo2008-011-100_a

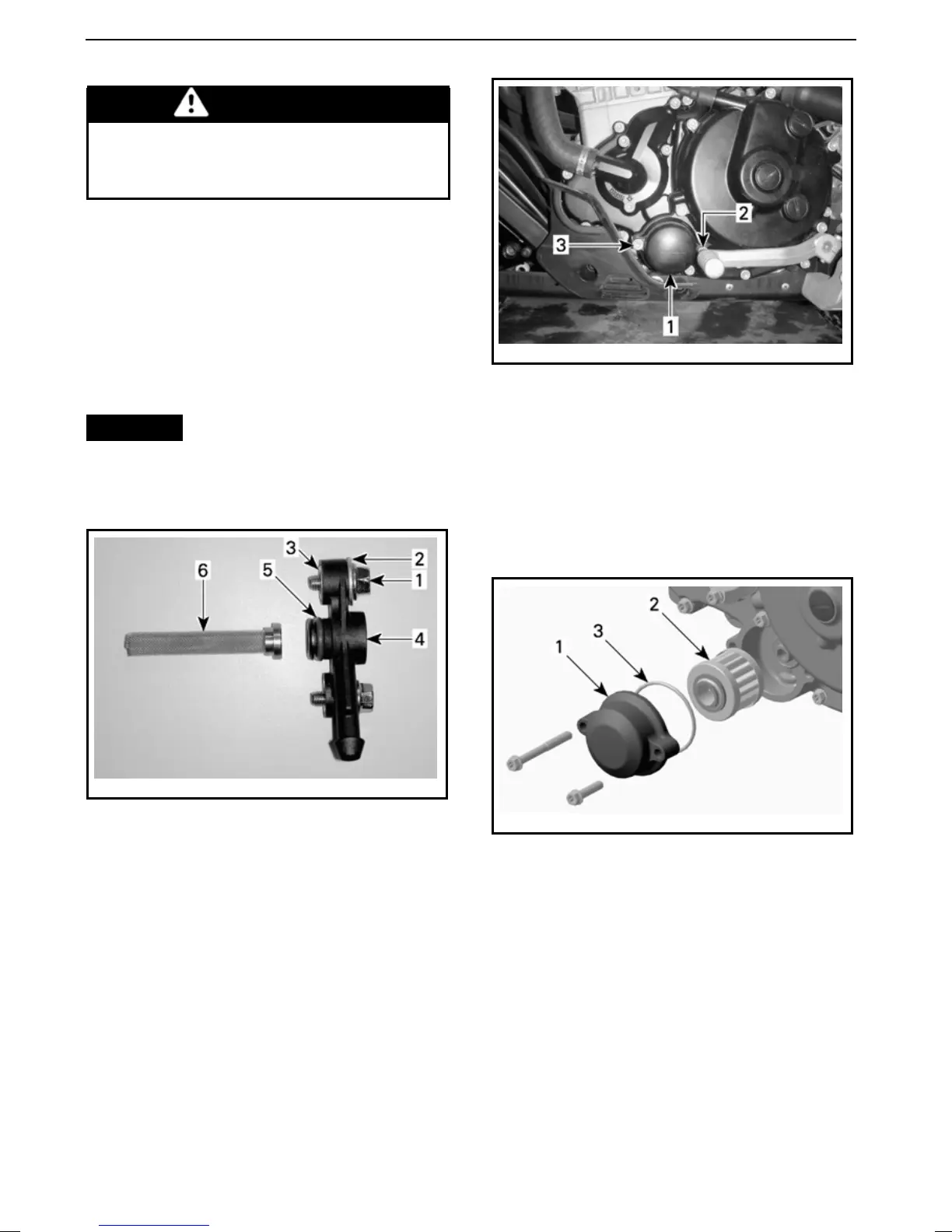

OIL OUTLET ASSEMBLY
1. Hexagonal bolt
2. Washer
3. Insert
4. Outlet fitting
5. O-ring
6. Strainer
Oil Filter Replacement
Unscrew oil filter cover.
NOTE: Remember screws location.
vmo2008-011-042_a
LH SIDE OF ENGINE
1. Oil filter cover
2. Screw (M6 x 25)
3. Screw (M6 x 55)
Remove the oil filter and replace by a
new one.
NOTE: Check and change the O-ring, if
necessary.
vmo2008-011-084_a
LH SIDE OF ENGINE
1. Oil filter cover
2. Oil filter
3. O-ring
Wipe off any oil spillage on engine.
Change gasket on drain plugs. Clean
gasket area on engine, oil tank and
drain plugs then reinstall plugs.
Refill oil tank with 1.8 L of the recom-
mended oil. Refer to
RECOMMEND-
ED ENGINE OIL
in this section for
more details.
