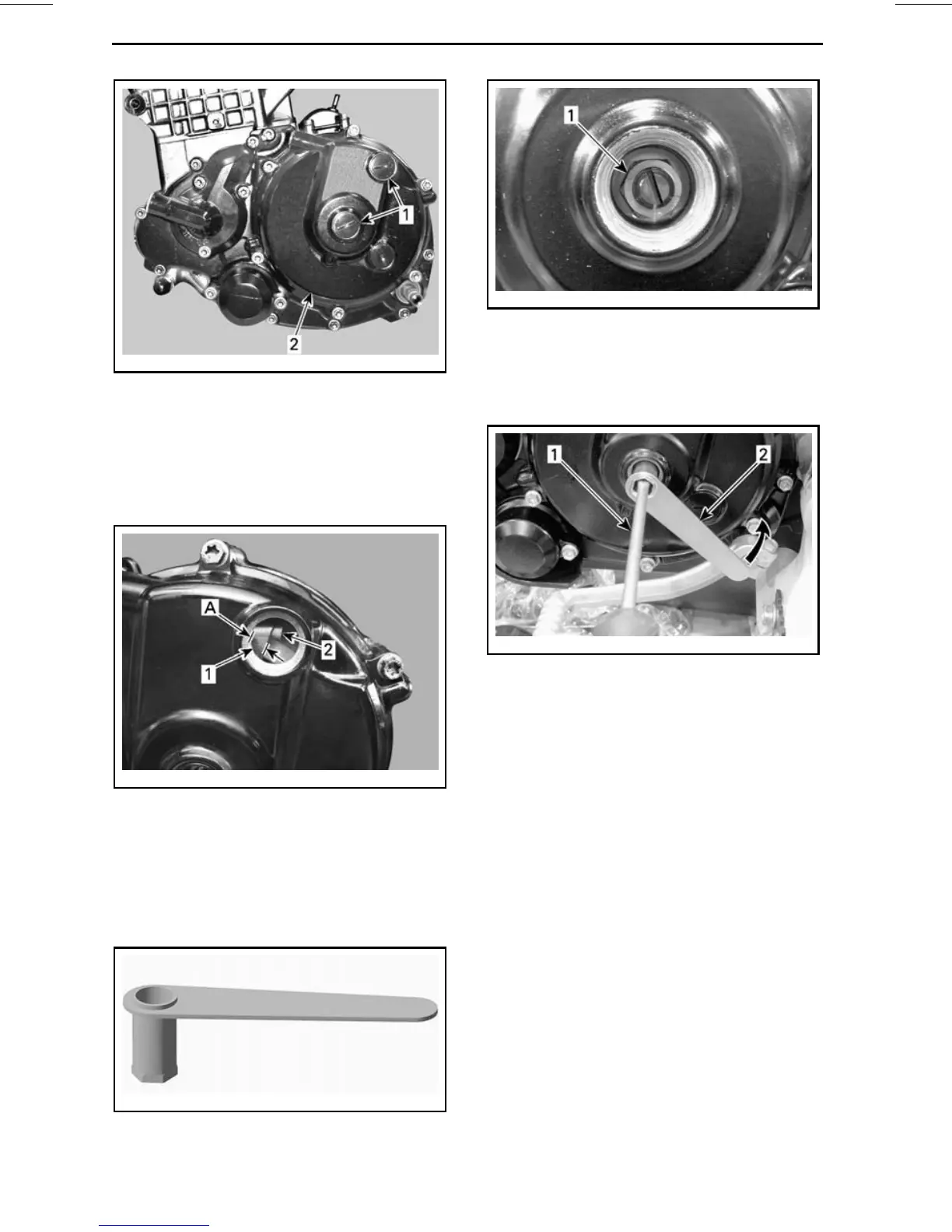

MAINTENANCE PROCEDURES
vmo2010-012-001_a
LH SIDE OF ENGINE
1. Access plugs
2. Clutch cover
Ve rify through clutch cover upper win-
dow if clutch cable and clutch release
cam are fully released.
vmo2010-012-002_a
1. Clutch cable
2. C l utch release cam
A. 4mmto5mm(.16into.2in)
Install CLUTCH ADJUSTMENT
WRENCH 11 MM (P/N 529 036 076)
provided in tool k it onto loc k nut.
529036076
CLUTCH ADJUSTMENT WRENCH
vmo2008-011-071_a
1. Lock nut
Hold adjustment screw using a flat
screwdriver, then loosen lock nut
counterclockwise.
vmo2008-011-085_a
1. Screwdriver
2. Clutch adjustment wrench
By using the screwdriver, gently turn
clutch adjuster screw c lockwise to lo-
cate the point of contact with release
bearing, then turn screw out (counter-
clockwise) 3/8 to 1/2 turn from contact
point.
Hold adjustment screw using the flat
screwdriver, then tighten lock nut
clockwiseusingtheclutchadjustment
wrench.
102
