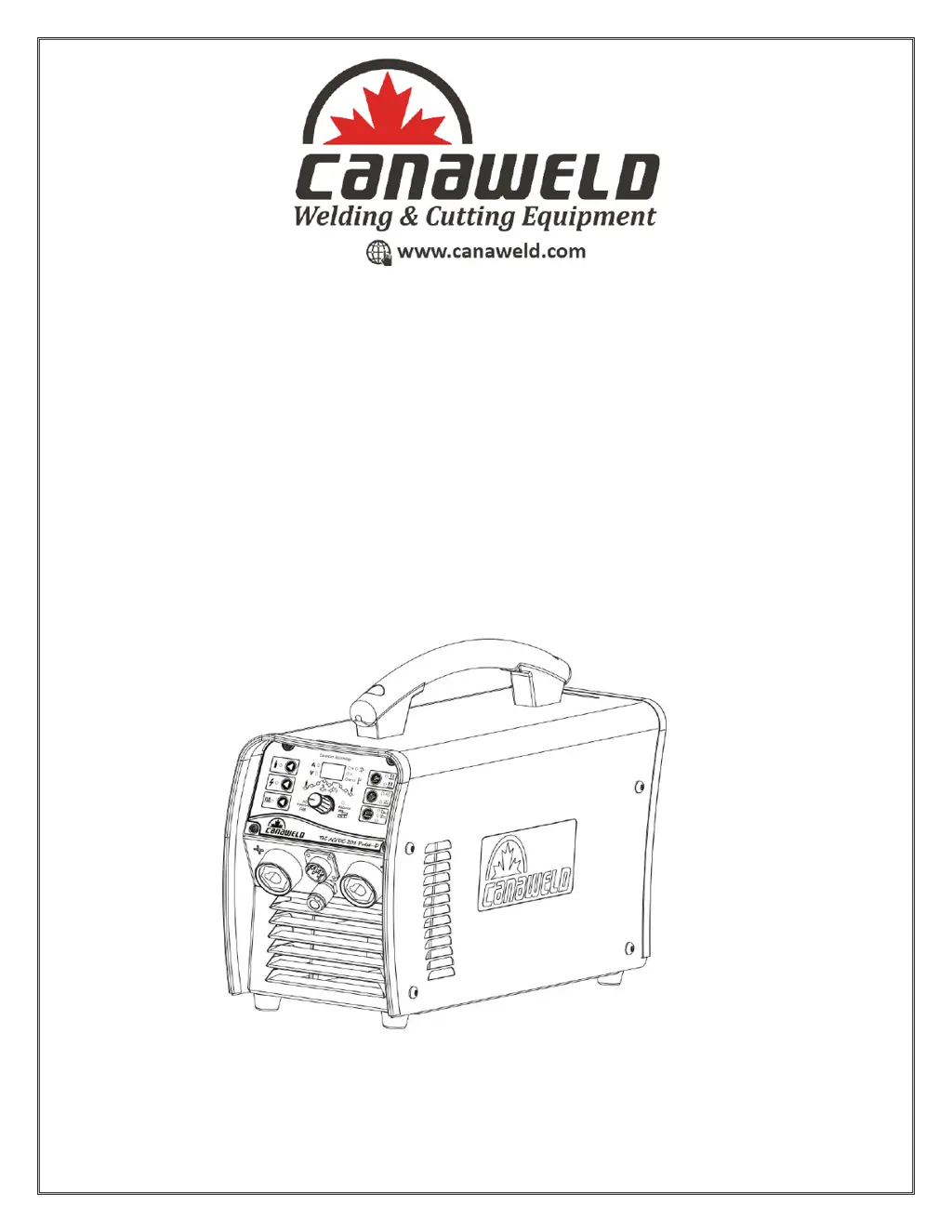

CANAWELD TIG AC DC 201 pulse D

Questions and Answers

C
Crystal JacksonAug 18, 2025
Why is the alarm lamp on the front panel of my CANAWELD TIG AC DC 201 pulse D Welding System on?
- S
  Sabrina EllisonAug 18, 2025
  The alarm lamp might be on due to several reasons: * Overheat protection: Reduce the welding current output. * Working time too long: Reduce the duty cycle and work intermittently. * Over-voltage or low-voltage protection: Use a stable power supply. * Too many machines using the power supply simultaneously: Reduce the number of machines in use. * Over-current protection: Check and repair the main circuit and drive Pr6.
S
Sierra WebsterAug 20, 2025
What to do if arc can not be ignited on CANAWELD Welding System (TIG)?
- E
  Elizabeth LeonardAug 20, 2025
  If the arc cannot be ignited during TIG welding, consider the following: * Ensure the welding cable is correctly connected to the welder's output. * Check the welding cable for damage and repair or replace it if necessary. * Verify the earth cable connection is stable. * Use an appropriate welding cable length. * Clean any oil or dust from the workpiece. * Inspect the HF igniting board; repair or replace Pr8 if it's not working. * Check the welding gun switch, control cable, and aero socket for malfunctions.
P
pbrownAug 23, 2025
What to do if there is no gas flow in CANAWELD TIG AC DC 201 pulse D Welding System (TIG)?
- K
  Kimberly AndersonAug 23, 2025
  If there is no gas flow during TIG welding, check these: * Ensure the gas cylinder is open and the gas pressure is adequate; open or change the gas cylinder if needed. * Check for obstructions in the valve and remove them. * If the electromagnetic valve is damaged, replace it.
M
Maureen KellyAug 26, 2025
What to do if the welding current displayed isn’t accordant with the actual value on CANAWELD TIG AC DC 201 pulse D Welding System?
- J
  Johnny PierceAug 26, 2025
  If the displayed welding current doesn't match the actual value: * If the minimum value displayed isn’t accordant with the actual value, adjust potentiometer Imin on the power board. * If the maximum value displayed isn’t accordant with the actual value, adjust potentiometer Imax on the power board.
D
Duane LongAug 28, 2025
Why does gas always flow in CANAWELD TIG AC DC 201 pulse D Welding System?
- G
  Gregory PerezAug 28, 2025
  If the gas is always flowing, consider these solutions: * Ensure the gas-test on the front panel is off. * Check for obstructions in the valve and remove them. * If the electromagnetic valve is damaged, replace it. * If the adjustment knob of pre-gas time on the front panel is damaged, repair or replace it.
D
Daniel SmithAug 30, 2025
Why is there no AC output while selecting “AC” on CANAWELD TIG AC DC 201 pulse D Welding System?
- L
  Larry MejiaAug 30, 2025
  If there is no AC output when selecting 'AC', the possible causes are: * The power PCB is in trouble: Repair or change it. * The AC drive PCB damaged: Change it. * The AC IGBT module damaged: Change it.
J
Joseph RiveraSep 1, 2025
What to do if the penetration of molten pool is not enough in CANAWELD TIG AC DC 201 pulse D?
- M
  mckenziejuliaSep 2, 2025
  If the penetration of the molten pool is insufficient: * Increase the welding current if it is set too low. * If the arc is too long during welding, use 2T operation.
K
Kathleen OdonnellSep 4, 2025
What to do if CANAWELD TIG AC DC 201 pulse D turns on, the power lamp is on, but the fan doesn’t work?
- C
  Colleen Campbell MDSep 5, 2025
  If the power lamp is on, but the fan isn't working: * Check if there is something obstructing the fan and clear it out. * If the start capacitor of the fan is damaged, replace it. * If the fan motor is damaged, replace the fan.
K
Kristin CordovaSep 6, 2025
What to do if CANAWELD TIG AC DC 201 pulse D Welding System turns on, and fan works, but the power pilot lamp is not on?
- T
  Thomas HowardSep 6, 2025
  If the fan works but the power pilot lamp is not on, check the following: * The power light may be damaged, or the connection may not be good: Check and repair Pr7. * The transformer of power may be broken: Repair or change the transformer. * There may be control PCB failures: Repair or change the control Pr4.
P
patricia19Sep 9, 2025
What to do if there is no no-load voltage output (MMA) in CANAWELD TIG AC DC 201 pulse D?
- J
  jenniferreynoldsSep 9, 2025
  If there is no no-load voltage output, it indicates the machine is damaged. Check the main circuit and the Pr4.

Summary

Safety Cautions and Symbols

Electric Shock Hazards

Dangers and precautions related to electric shock during operation.

Welding Workplace Safety

Guidelines for safe working environments and positions.

Hot Welded Parts Precautions

Handling procedures for hot welded parts to prevent burns.

Environmental Safety Precautions

Welding Fumes and Gases Safety

Health risks and protective measures against welding fumes and gases.

Welding Rays and Fire Prevention

Protection against welding rays and measures to prevent fires.

Operational Safety Hazards

Gas, Noise, and EMF Safety

Gas Cylinder and Line Safety

Handling and securing gas cylinders to prevent damage or explosion.

Operation of Equipment

Power Supply Connection

TIG Equipment Assembly

Machine Operation and Controls

Front Panel Connections and Controls

Control Panel Layout and Functions

AC;DC Mode Selection

Mode and Indicator Functions

Adjusting Dial and Parameters

Welding Parameter Settings

Starting and Upslope Parameters

Base and Pulse Current Parameters

Downslope and Crater Arc Settings

AC Frequency and Balance Control

TIG Welding Operations

4 T Operation Guide

Detailed steps and timings for TIG welding in 4T mode.

2 T Operation Guide

Detailed steps and timings for TIG welding in 2T mode.

Short Circuit and Arc Break Protection

Functions to protect the electrode and maintain arc stability.

Operational Notices and Tips

Maintenance and Troubleshooting

Machine Maintenance Procedures

Guidelines for cleaning, checking cables, and protecting the machine.

Basic Troubleshooting Guide

Solutions for common issues like power, fan, and display problems.

Troubleshooting Arc Ignition and Gas Flow

Resolving issues with arc ignition, no gas flow, and continuous gas flow.

Troubleshooting Current Adjustment and Output

Alarm Lamp and Protection Troubleshooting

Diagnosing and resolving issues related to alarm lamps and protection circuits.

Electrical Specifications

Welder Specifications Summary

Electrical Schematic Diagram
