9

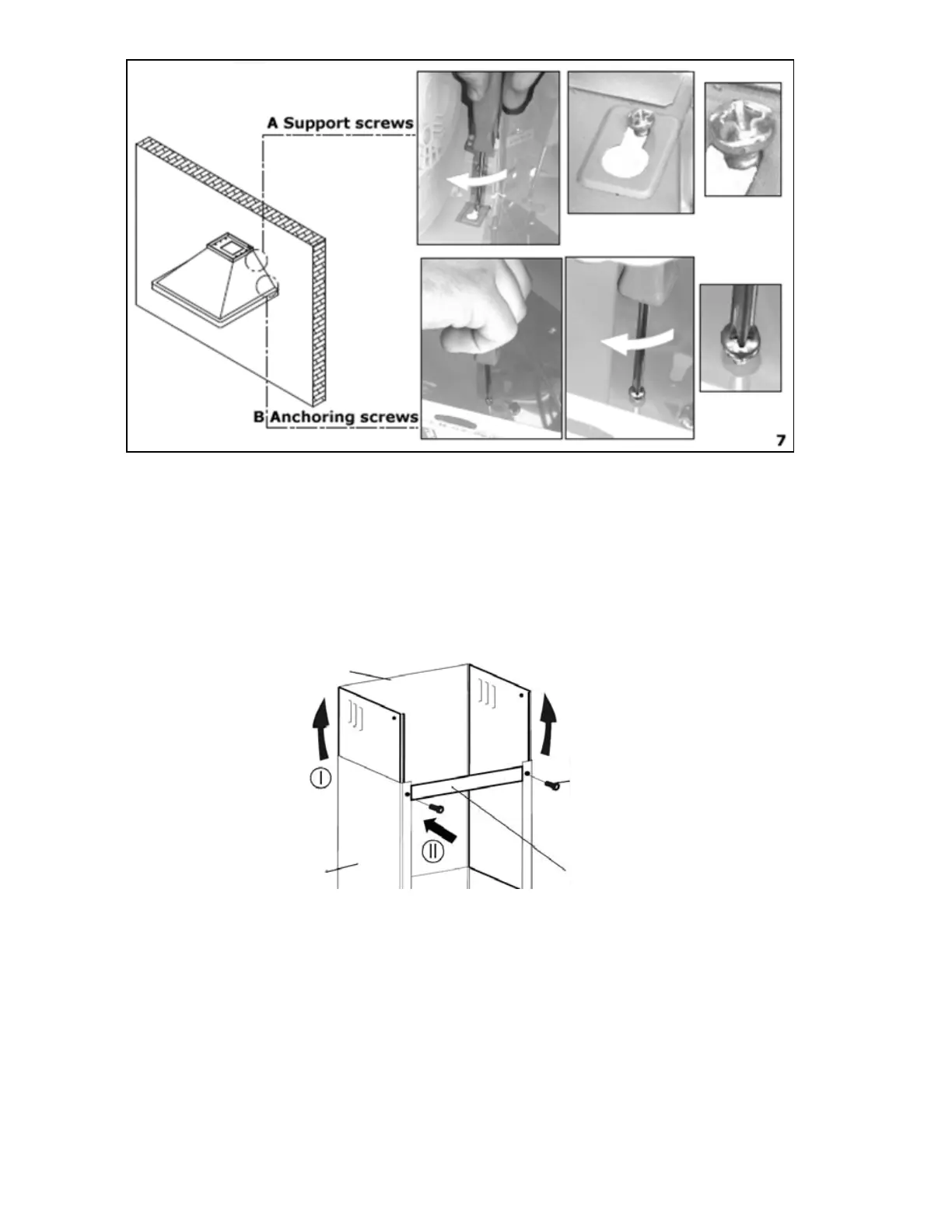

7. Fully tighten the support screws (A) and then screw the anchoring
screws (B) through the relevant holes in the cooker hood. Fully tighten
the anchoring screws into the wall.
8. Plate I and II are used to fix the chimney on the wall. Put the inner chimney on the
outer chimney. Then pull the inner chimney upwards. Install plate I on the chimney
by two screws (4mm x 8mm).
Place the chimney on the cooker hood and determine the location of plate I and II.
Drill holes to accommodate plate I & II.
