10

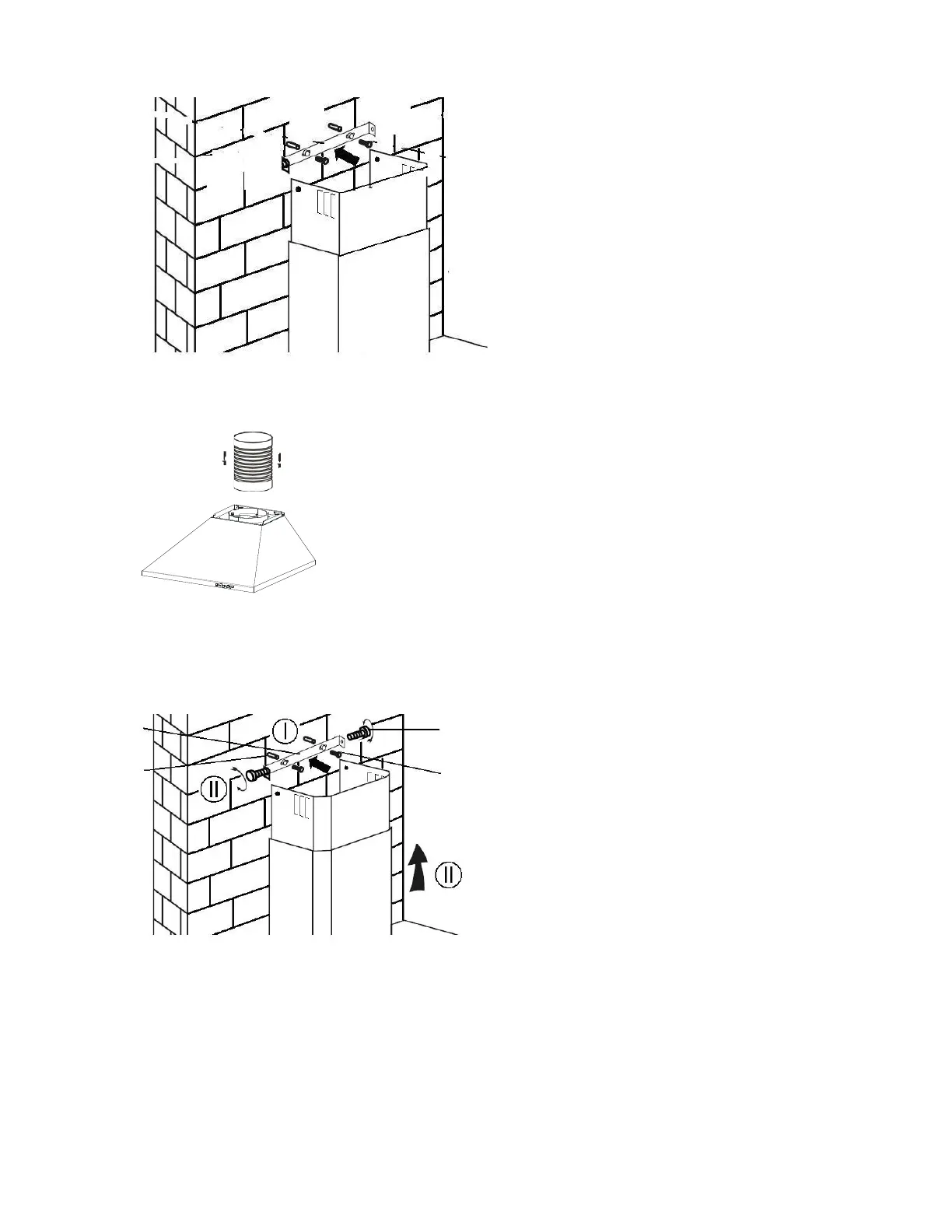

Fix plate II on the wall by two screws (4mm x 40mm) and wall plugs.
9. Take out the chimney from the cooker hood Attach the exhaust pipe onto the
one-way-valve as shown below.
10. Put the chimney back to the cooker hood. Before lifting the chimney on the
desired height, fix plate I on the wall by two screws (4mm x 40mm) and wall
plugs. Lift up the chimney to the desired height and fix the chimney on the
plate II by 2 screws (4mm x 8mm)
Fix the lower chimney on the cooker hood by 2 screws (4x8mm)
