17
Installation instructions
1
2
3
If space is limited
for fixing, push
hose through drain
hose support
to required height

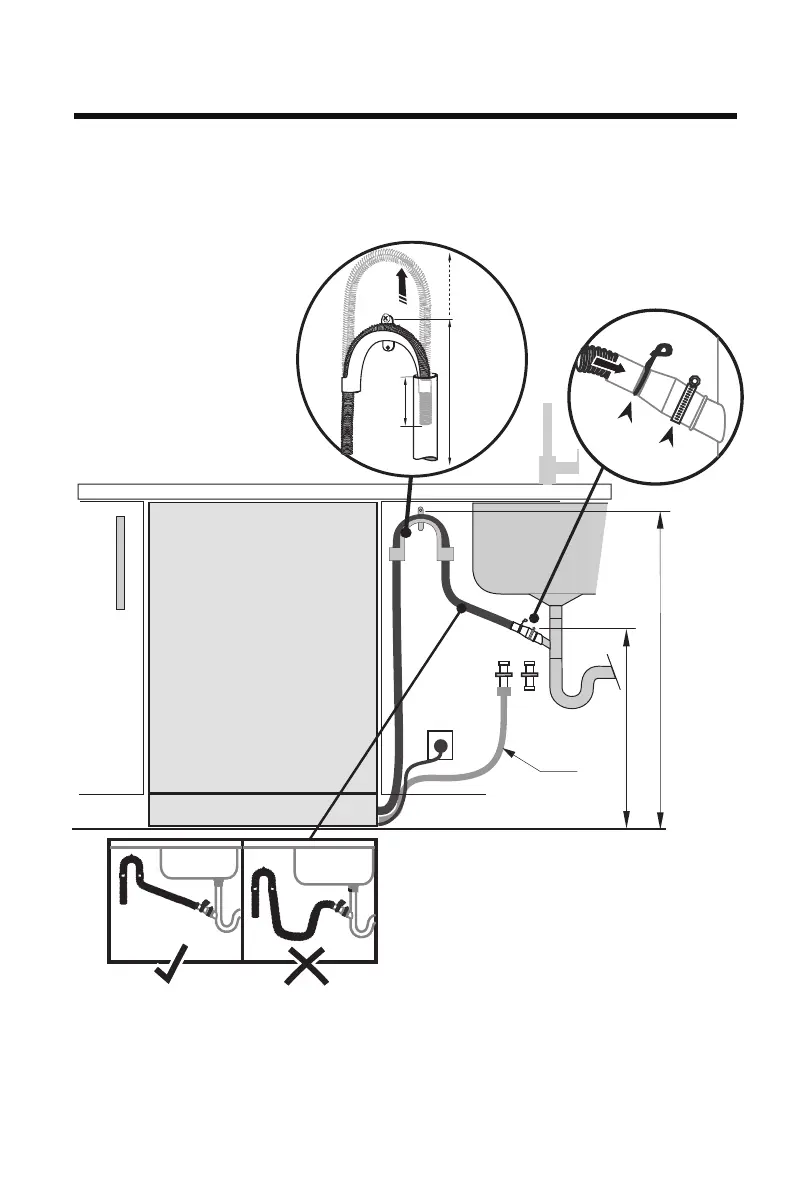

Dishwasher using drain hose joiner
onto sink trap/waste tee
min. 500 mm
min. radius
200 mm
step 9
Installer to provide
drain hose joiner to suit
min. 15mm waste tee
Ensure drain hose is routed
straight to joiner. Remove excess
drain hose material if necessary.
Do not shorten the inlet hose.
IMPORTANT!
Do not connect the drain hoses
to a Waste Disposal Unit, as this
type of connection may lead to a
blockage in the drain hoses.
750-882.5 mm
750 - 882.5 mm
