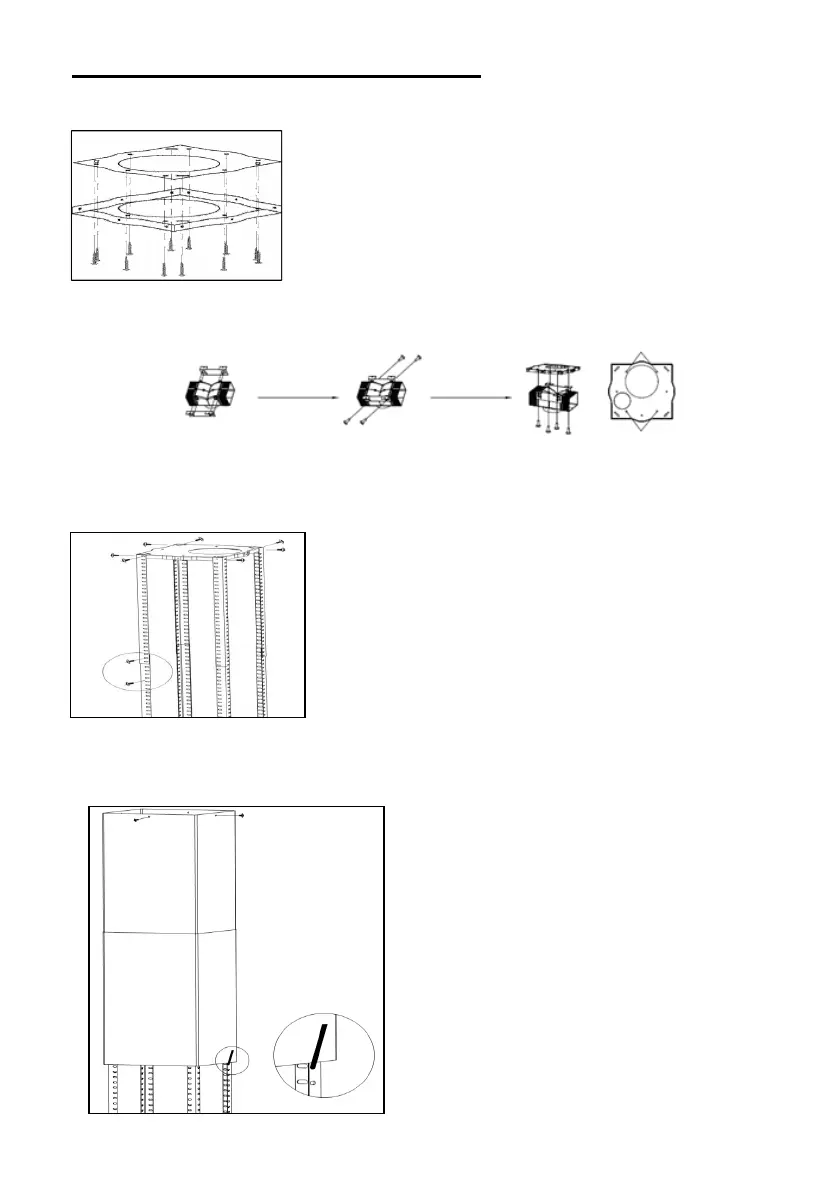

CEILING MOUNTING INSTALLATION
1)Position the hanging plate on the
ceiling and then mark the position of the
screw holes.
The hanging plate should be securely fixed
to the ceiling,
11 x ST6 (40 mm)screws for wooden ceiling
8 x expansion bolts for cement ceiling
2)
Fix the angle bars to the hanging plate,using
the 8 x M5 screws.
3)
Extend the angle bars to the repuired
height and then fix them in position using the
16 x M5 screws and nuts with metal washers.
IMPORTANT: The angle bars must have an overlap of AT LEAST 100
mm.
4) If your cooker hood is going to
be used in extraction mode, then
you should connect the ducting
hose to the ceiling adaptor at this
point.
Fix the upper chimney
section to
the hanging plate, using the 4 x
self tapping screws.
Slide the lower chimney section
onto the angle bars and raise it
until it sits just below the upper
chimney section.
Air deflector is mentioned as included and not optional.
2)Fix the 2pcs brackets to the T-shaped plastic outlet with 4pcs
ST3.5x12mm screws provided.
