EN 27

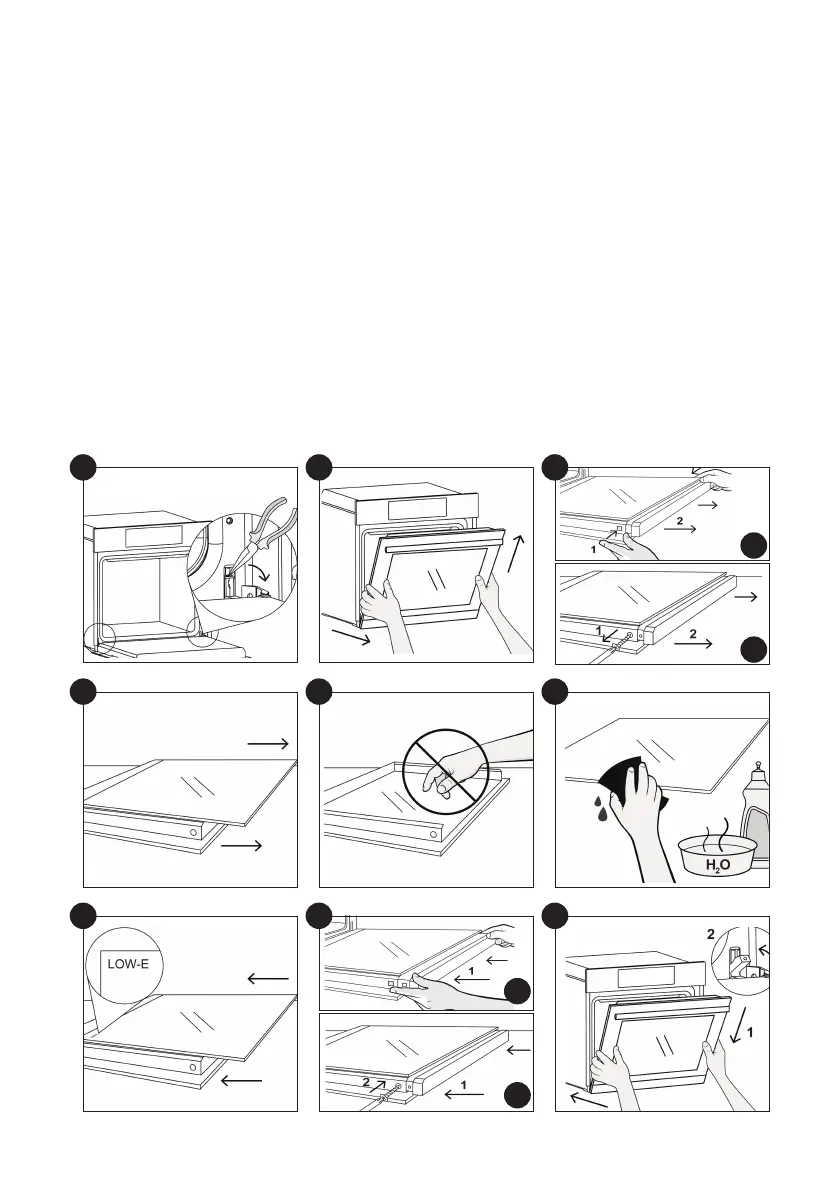

1.
2. Put the door at a 45° angle, then pull the door forwards and upwards at the same time to release it.
facing down.
3. V1.Press the two buttons on the left and right at the same time and pull the upper door cover towards
you to remove it. V2. Unscrew the two screws on the left and right and pull the upper door cover towards
you to remove it.
4.
surface.
5.If there are glass panels in between, remove them and place them on a soft surface.
ATTENTION: the outer panel of glass is not removable
6. Clean the glass with a soft cloth using an appropriate cleaning product.
7.
indication must be correctly legible and positioned on the left side of the door, near the left side hinge. This
8. V1. V2.
To attach, push the top cover forward and tighten the two screws on the left and right.
9. Holding the door at 45°, simultaneously insert the right and left male parts of the hinge into the holes of
tabs in place by pushing them towards the inside of the oven.
1
4
7
2
5
8
3
V1
6
9
V2
V1
V2
