B. Install the Oven

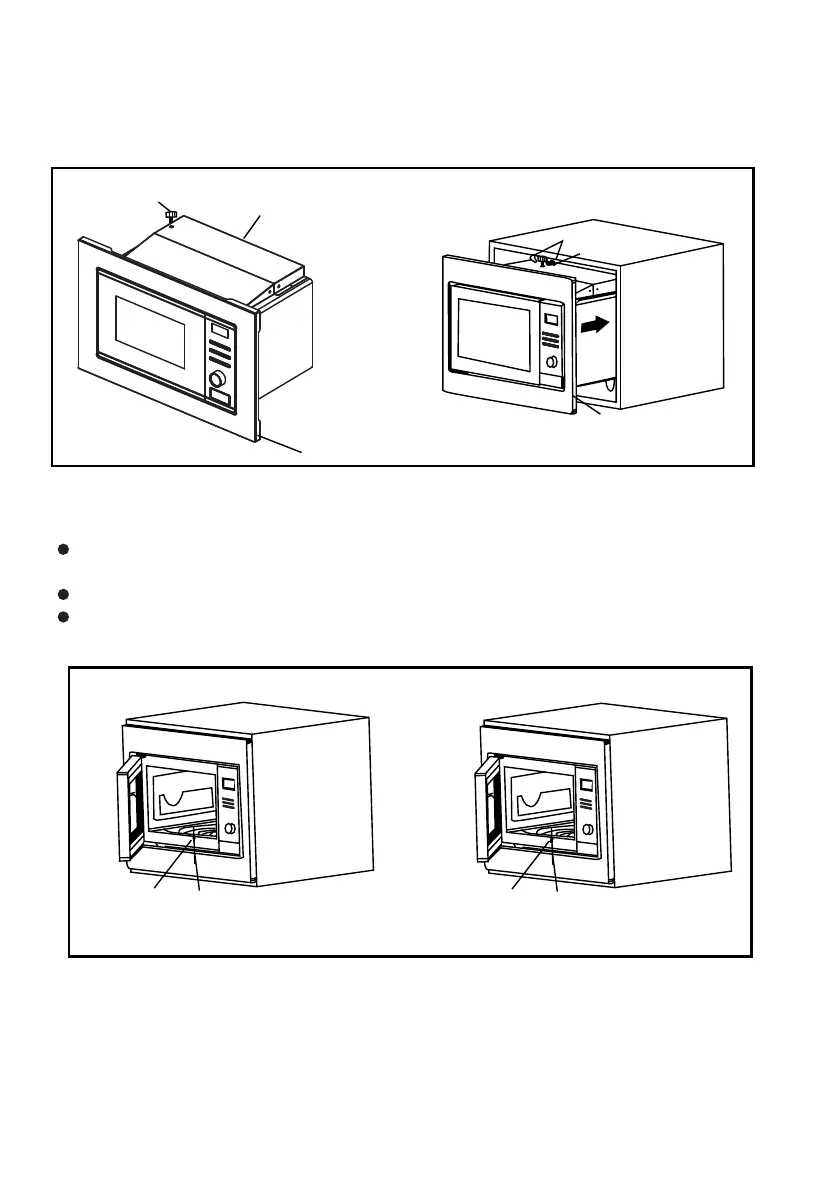

1. Fix ADJSUTSCREW A on the UPPER AIR TUNNEL of the oven, and then
install the oven into the cabinet.
Adjust the height of ADJUST SCREW A to keep 1mm gap between the
ADJUST SCREW A and the top plane of cabinet.
Do not trap or kink the power cord.
Make sure that the oven is installed in the center of the cabinet.
2. Open the door; fix the oven to the cabinet with SCREW B at the
to the INSTALLATION HOLE.
ADJUST HEIGHT
ADJUST SCREW A
TRIM KIT
INSTALLATION HOLE
TRIM-KIT PLASTIC COVER
INSTALLATION HOLE
SCREW B
INSTALLATION HOLE of TRIM KIT. Then fix the TRIM-KIT PLASTIC COVER
ADJUST SCREW A
UPPER AIR TUNNEL
TRIM-KIT
To Next Page
