Cannondale Lefty MAX - Compression Damping Assembly

22

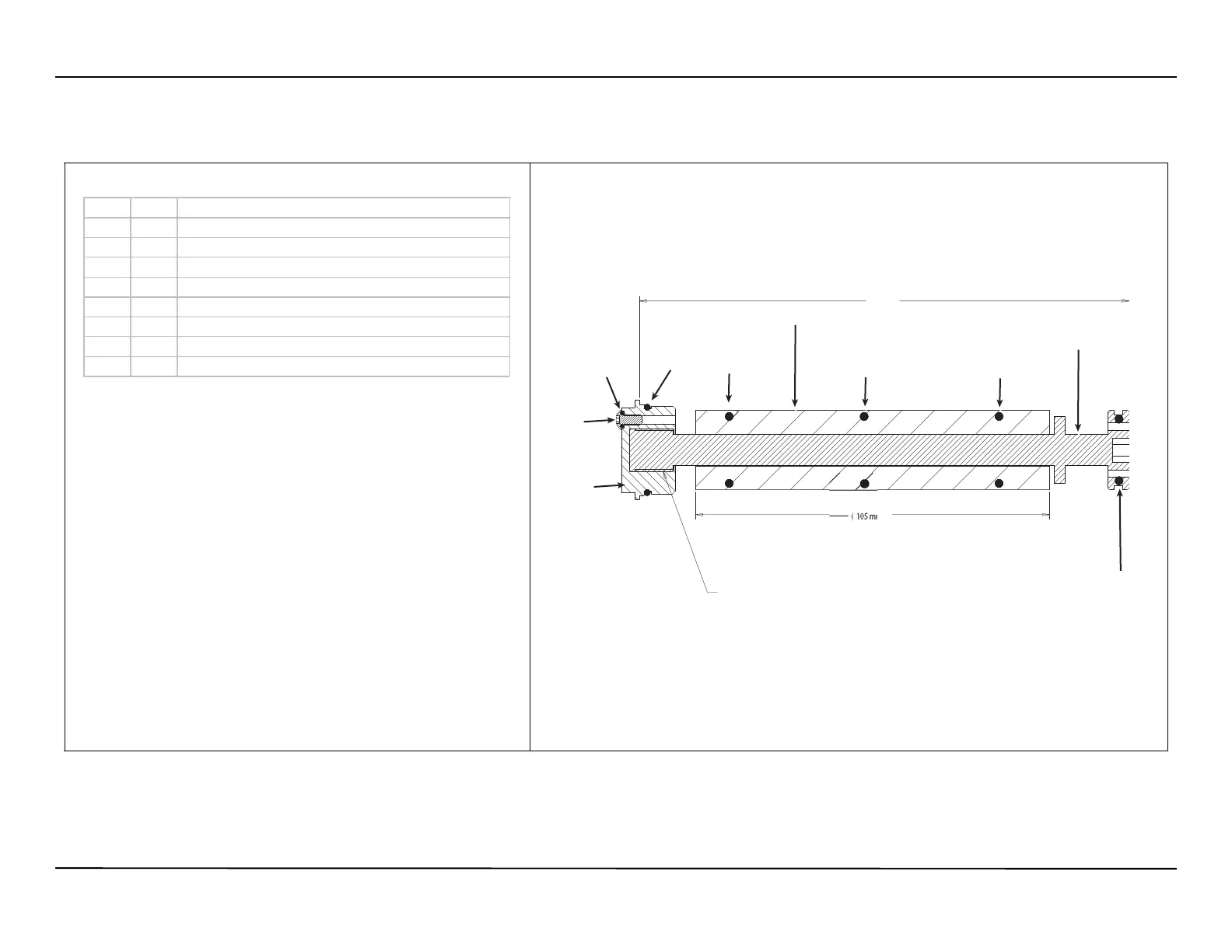

COMPRESSION DAMPING ASSEMBLY
REF QTY DESC
1 1 O-RING (-021)
2 3 O-RING (-115)
3 1 COMPRESSION VALVE
4 1 O-RING (-114)
5 1 5-632 O-RING, .110 X .040
6 1 BLEED SCREW
7 1 FOAM COMPENSATOR
8 1 BOTTOM BLEED CAP
TORQUE: 18.0 IN-LB (2.03 N-M) WITH EPOXY BOND
