Color Grading with the ACES Workflow
ACESproxy: ACESproxy video data that is output from the MON. terminals or HDMI OUT terminal when
performing on-set color grading. Select the [ACESproxy] option for the LUT setting of the
appropriate terminal (A 154) to enable ACESproxy output.
Input Transform: Refers to the table used for converting color information of the input device to ACES2065-1
color space.
Output Transform: Refers to the table used for mapping ACES2065-1 color space information to the specific
color information scheme used by the display device.
ASC-CDL: Refers to the list that contains color grading adjustment data. This step requires equipment
compatible with ASC-CDL.
Extension
module
connector
(docking)
CDX-36150
Recorder
Cinema RAW
Development
Color grading
Post-production

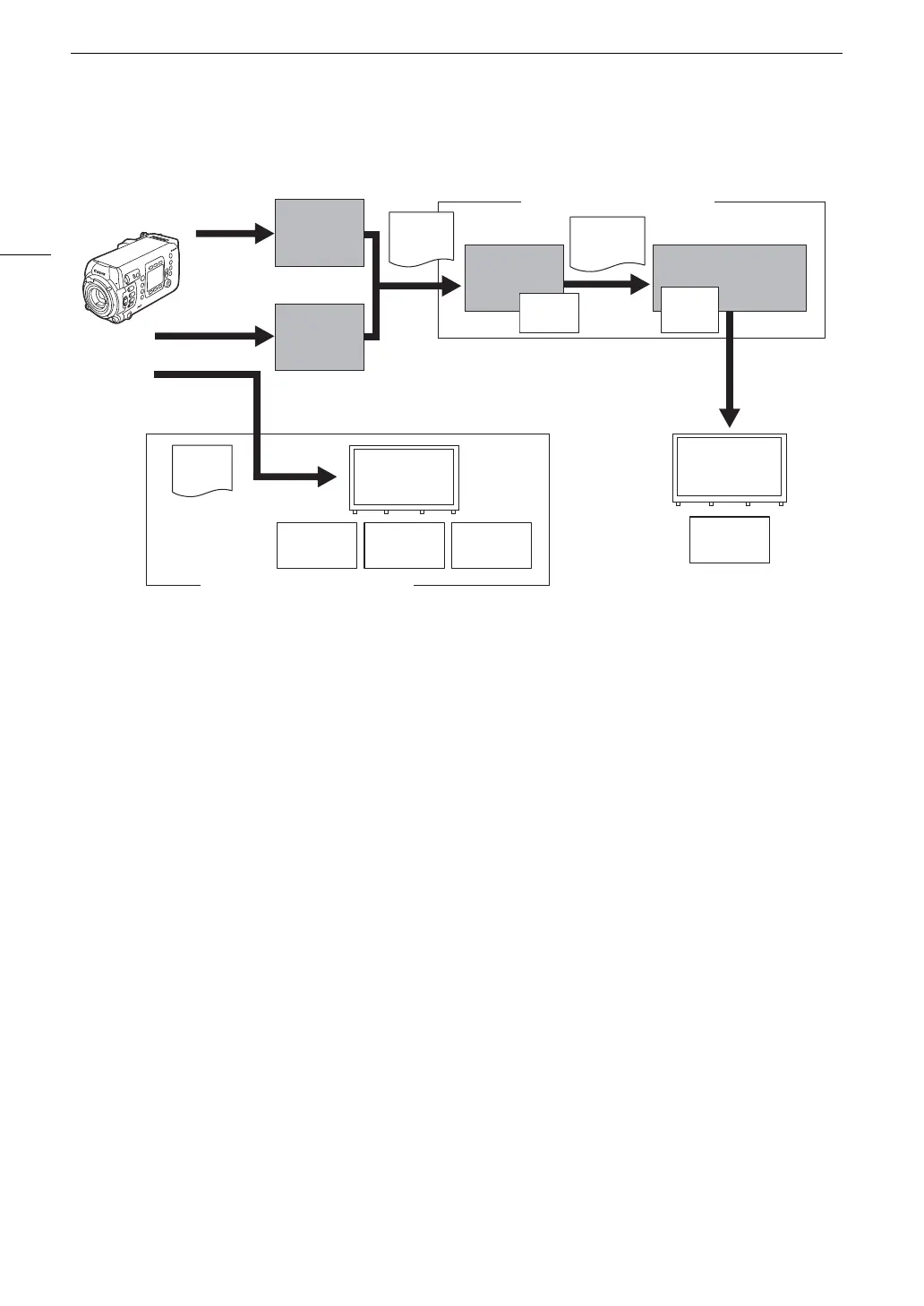

On-set Color Grading
ACES
proxy
Inverse log
ASC-CDL
MON. or HDMI OUT
output
RAW
data
OpenEXR
(ACES 1.0)
Input
Transform
ASC-
CDL
4K recording
(RAW)
SDI OUT terminals
External
Raw
Recorder
Output
Transform
Output
Transform
