CHAPTER 6 FIXING SYSTEM
3) While lifting the hook w, slide the
delivery door switch e to the front to
remove.

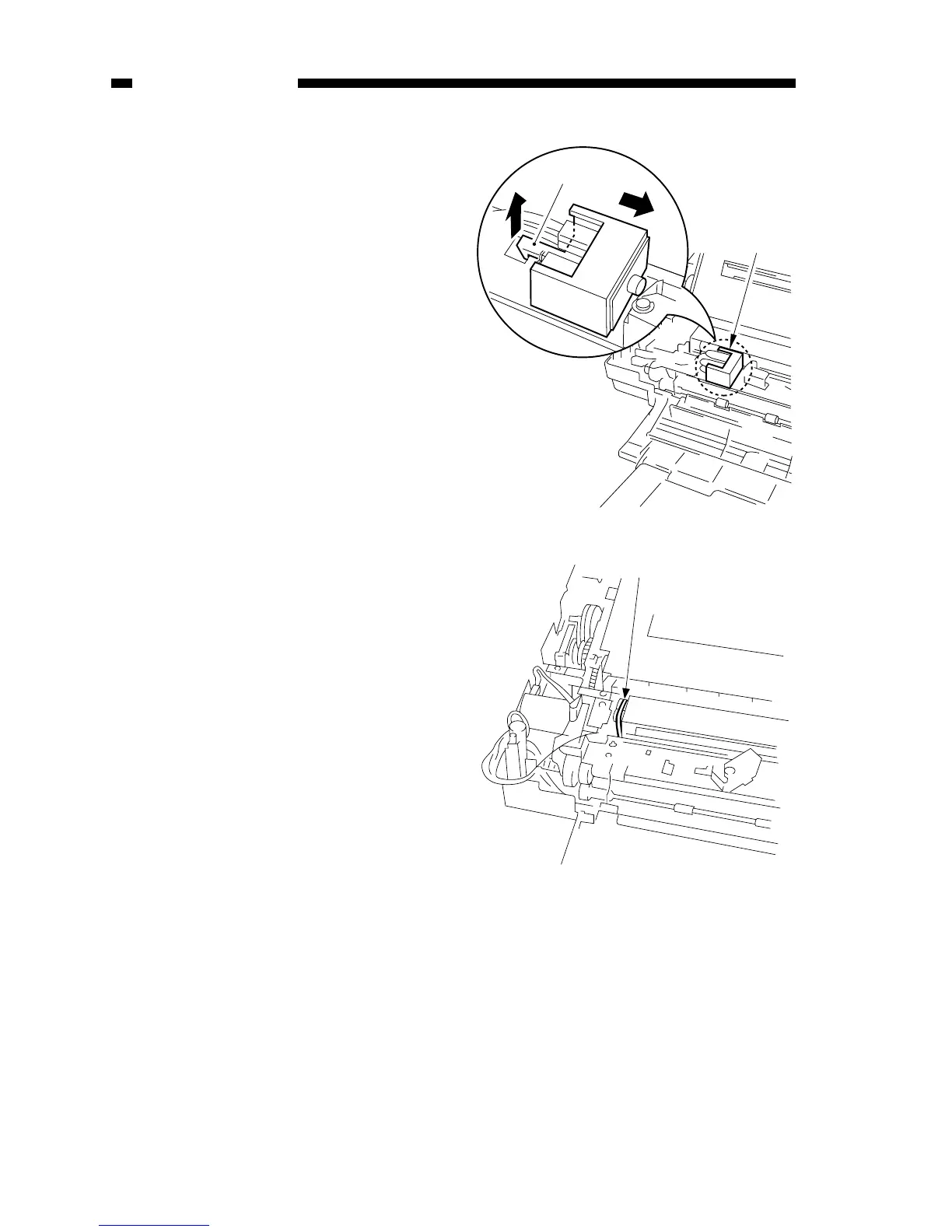

Figure 6-203A
Figure 6-204A
4) Detach the drive belt r.
➁
➂
➃
