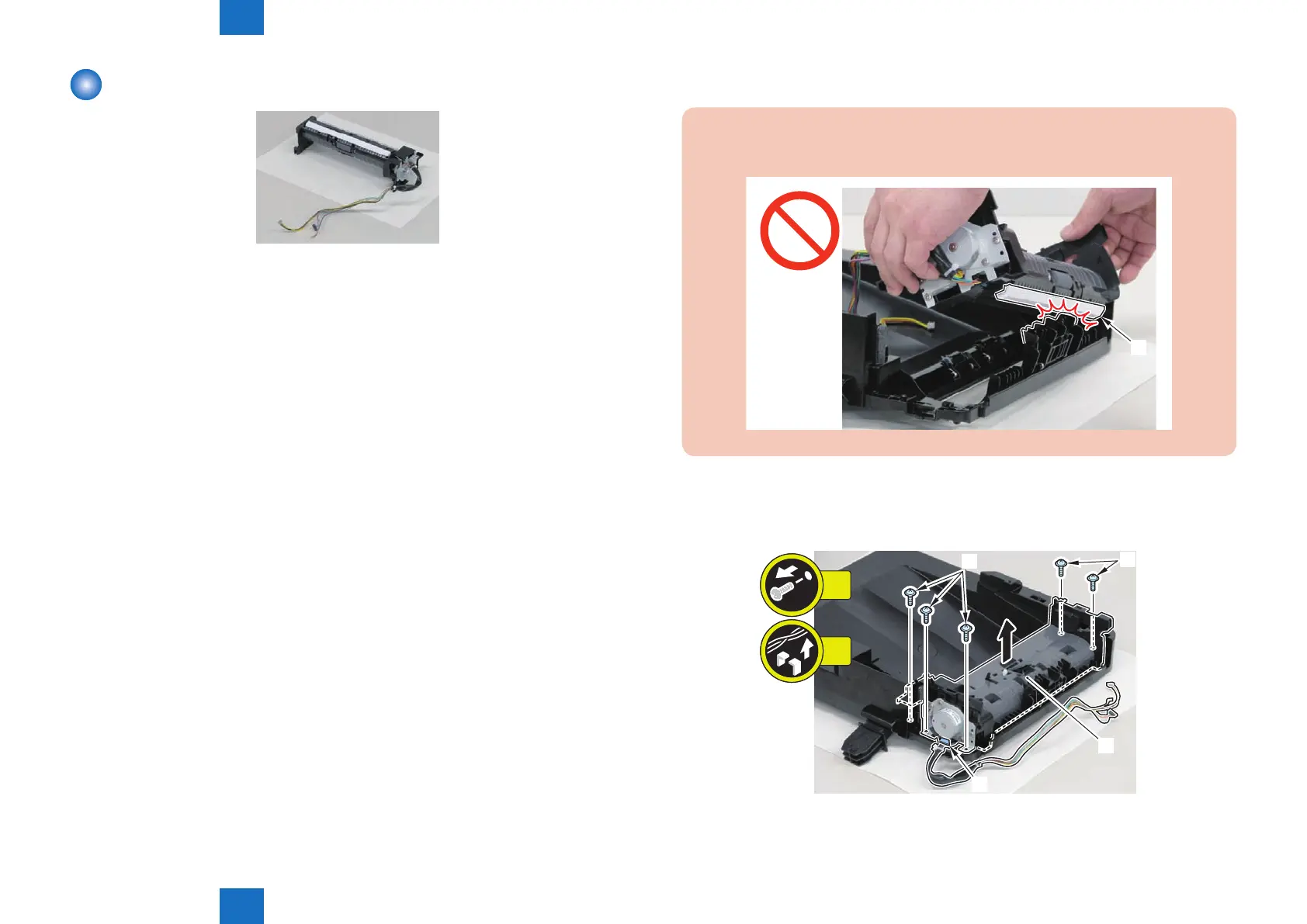

Disassembly/Assembly > Original Exposure/Feed System (SADF Model) > Removing the SADF Pickup Unit > Procedure
Disassembly/Assembly > Original Exposure/Feed System (SADF Model) > Removing the SADF Pickup Unit > Procedure
Removing the SADF Pickup Unit
■
Preparation
●
Duplex Model
1) Remove the Left Cover (Duplex Model) (Refer to page 4-86).
2) Remove the SADF Unit + Reader Unit (Refer to page 4-51).
3) Separate the SADF Unit and the Reader Unit (Refer to page 4-54).
4) Remove the SADF Upper Cover Unit (Refer to page 4-56).
●
Sinplex Model
1) Remove the Left Cover (Sinplex Model)(Refer to page 4-144).
2) Remove the SADF Unit + Reader Unit (Refer to page 4-51).
3) Separate the SADF Unit and the Reader Unit (Refer to page 4-54).
4) Remove the SADF Upper Cover Unit (Refer to page 4-56).
F-4-139
■
Procedure
CAUTION:
Do not damage the White Guide Plate [1].
[1]
F-4-140
1) Remove the SADF Pickup Unit [1].
• 5 Screws (B Tightening) [2]
• Guide [A]
5x
1x
[1]
[2]
[2]
[A]
F-4-141
