Canon imagePROGRAF TA-20 Setup Guide

6
4

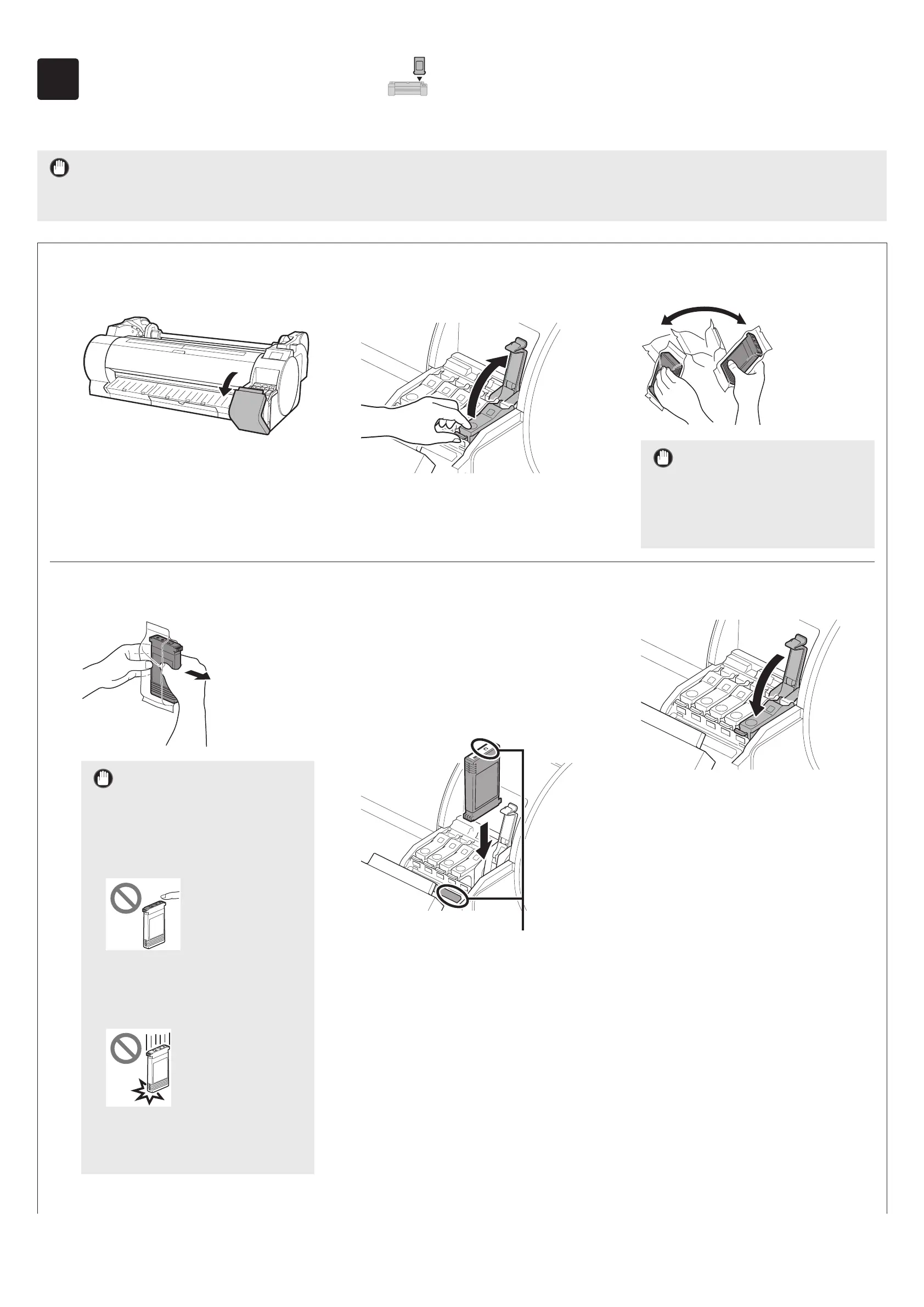

Installing the Ink Tanks
Instructions on ink tank installation are shown on the touch screen. Install the 5 ink tanks as instructed. If the ink tank is cold, allow it to adjust to room temperature
before attaching it to the printer.
Important
● Note that 2 MBK ink tanks are included with this product. After installing the ink tanks, a message asking you to install the second MBK ink tank may be
displayed. If this happens, remove the ink tank that you first installed and then install the second ink tank.
1
Open the ink tank covers by
grasping the handles.
2
While pushing the tip of the ink tank
lock lever horizontally, open the ink
tank lock lever upwards.
3
Shake each ink tank gently 1 or 2
times before opening its pouch.
Important
● Failure to shake the ink tanks may
result in reduced print quality because
ink ingredients have settled on the
bottom of the tank.
4
Open the pouch and remove the ink
tank.
Important
● Never touch the ink holes or metal
contacts (the area shown shaded in
the diagram). Touching these parts
may cause stains, damage the ink
tank, and affect print quality.
● Avoid dropping the ink tank after
removing it from the pouch.
Otherwise, ink may leak and cause
stains.
● Do not remove ink tanks to shake
them after they have been mounted.
Doing so may cause ink to spill.
5
Check that the color of the ink tank
is the same as the color displayed
on the label in the printer, and insert
the ink tank into the holder in the
orientation shown in the diagram.
● Insert with the ink tank label facing
up and ensuring that the text on the
label is not upside-down.
Match the color of the ink
tank label to the color of
the label in the printer
6
Close the ink tank lock lever until it
clicks.

Canon imagePROGRAF TA-20 Specifications

General

Package depth	874 mm
Package width	1147 mm
Package height	542 mm
Package weight	49000 g
Cartridge(s) included	Yes
Printing colors	Black, Cyan, Magenta, Pigment matte black, Yellow
Print technology	Inkjet
Maximum resolution	2400 x 1200 DPI
Number of print cartridges	5
Page description languages	HP-GL/2, HP-RTL, JPEG
USB connector	USB Type-A
USB 2.0 ports quantity	1
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Media thickness	0.07 - 0.8 mm
Maximum print size	-
Maximum roll width	610 mm
Maximum roll length	18 m
Paper tray media types	Roll
Print margin cut-sheet	210 - 431.8 mm
Mac operating systems supported	Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 10.5 Leopard, Mac OS X 10.6 Snow Leopard, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks
Windows operating systems supported	Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64
Operating temperature (T-T)	15 - 30 °C
Operating relative humidity (H-H)	10 - 80 %
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (off)	0.3 W
Power consumption (standby)	3.6 W
Power consumption (typical)	52 W
Certification	C TUVus, FCC Part 15B, FCC Part 15C
Product color	Black, Silver
Sound power level (standby)	35 dB
Sound pressure level (printing)	42 dB
Sustainability certificates	ENERGY STAR

Weight and Dimensions

Depth	748 mm
Width	982 mm
Height	438 mm
