8
5

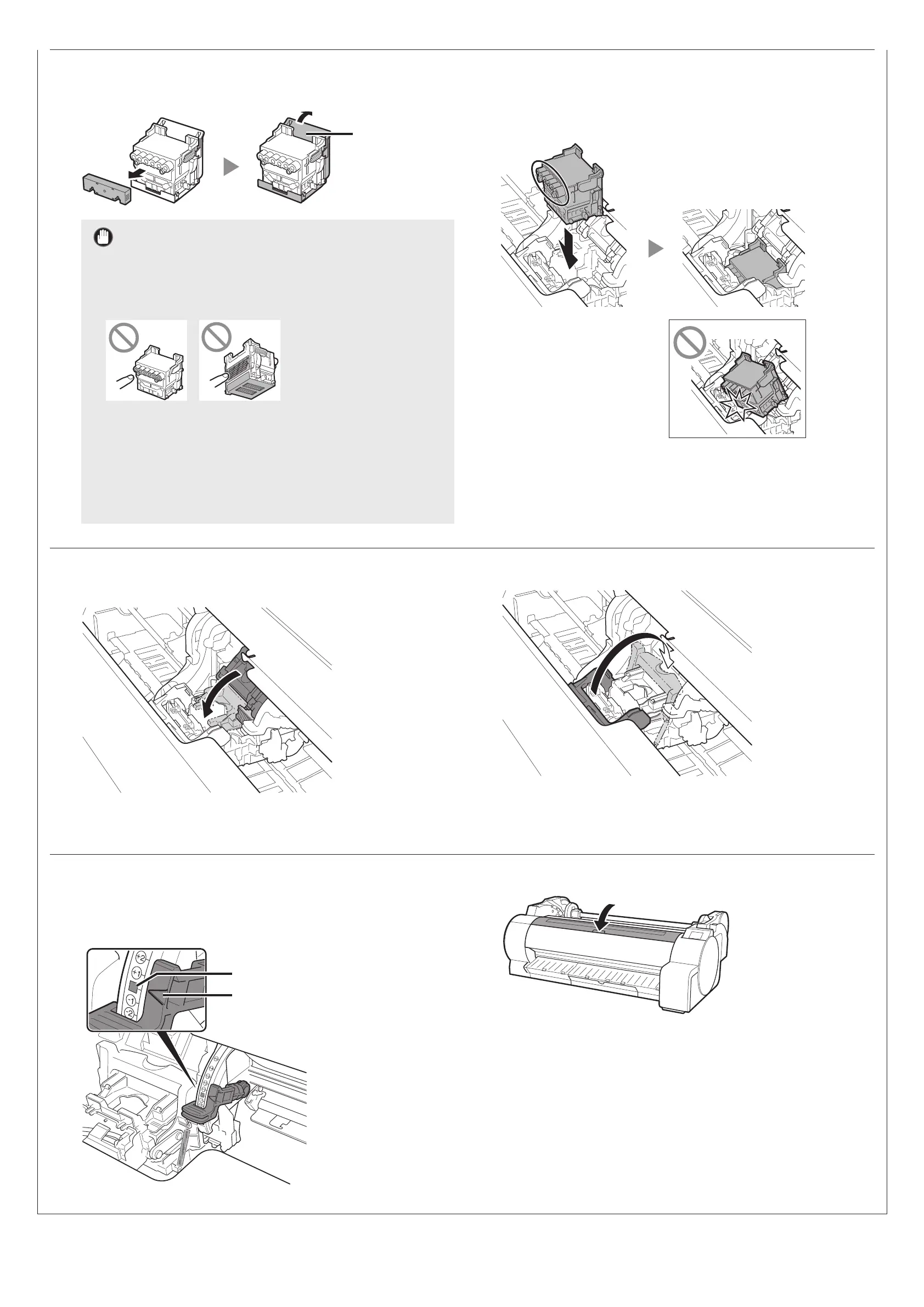

Remove the orange protective caps in the order shown in
the diagram.
Remove by
holding here
Important
● Do not touch the part that was being protected by the
protective cap (part shown shaded in the diagram) under any
circumstances. Touching it may cause damage to the print head
or printing problems.
● The print head is filled with ink. Be careful to avoid getting
your clothes and surrounding items dirty when removing
the protective caps. It is recommended that you remove the
protective caps over the bag that the print head came in.
● Do not reattach the protective caps after removing them.
Furthermore, dispose of them according to local regulations.
6
Align the print head so that the area enclosed by a circle
in the diagram is facing you, and carefully push the print
head rmly into the printer, ensuring that the part covered
by the protective caps does not touch the carriage.
7
Pull the print head locking cover down toward you to lock
the print head in place.
8
Push the print head lock lever all the way to the end.
9
Check that the triangular mark on the angle adjustment
lever is aligned with the position of the red ■. If it is not
aligned, move the angle adjustment lever up or down to
align it with the red ■.
Triangular mark
Red ■
10
Close the top cover.
To Next Page
