Canon iR2020 Series Portable Manual

Chapter 5
19
F-5-6

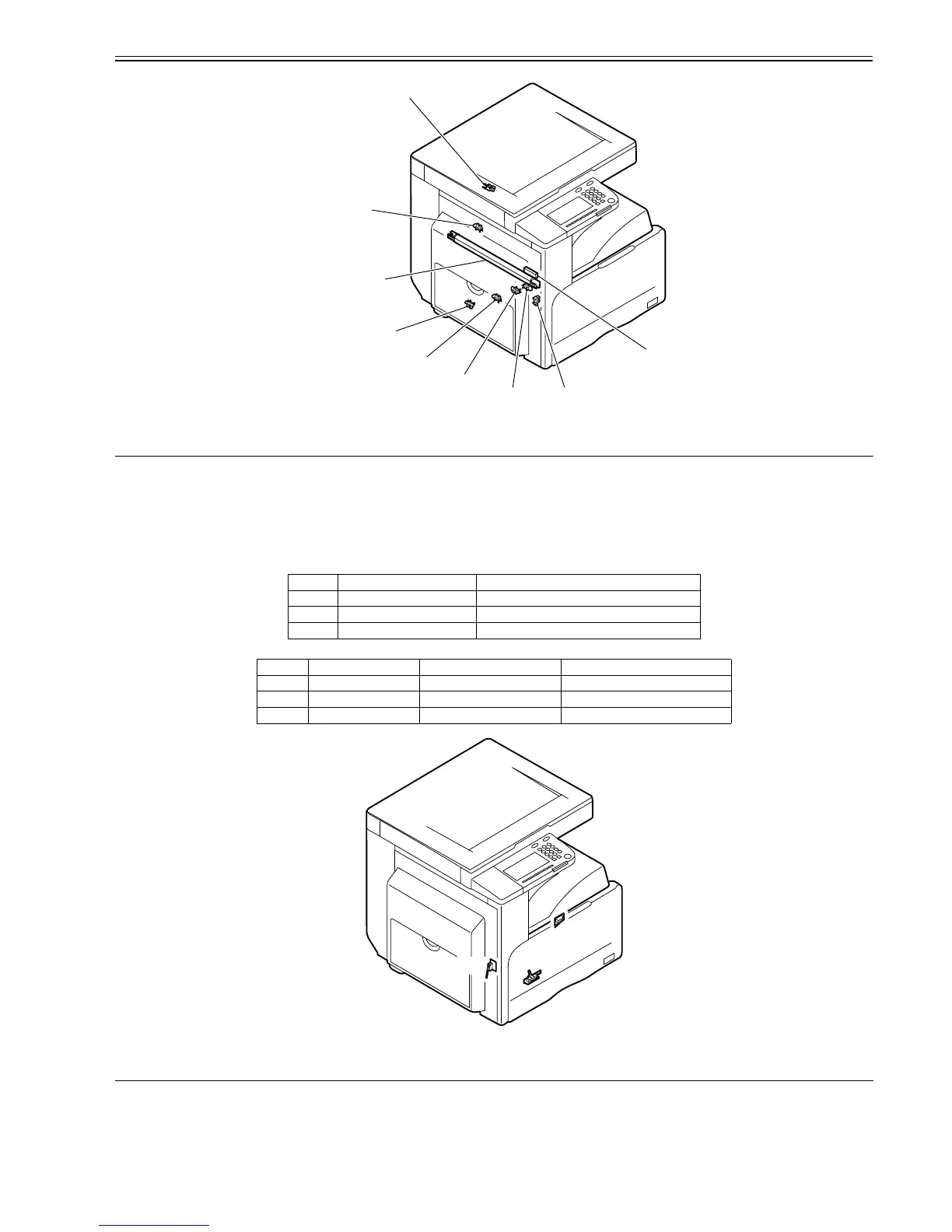

5.5 Switch
5.5.1 List of Switches
0011-2724
iR2016J / iR2016 / iR2020 / / iR2016i / iR2020i
<Reader Unit>
The reader unit has no switch.
<Printer Unit>
T-5-14
T-5-15
F-5-7
5.6 Lamps, Heaters, and Others
5.6.1 List of Lamps, Heaters, and Others
0011-2725
iR2016J / iR2016 / iR2020 / / iR2016i / iR2020i
<Reader Unit>
Symbol Name Function
SW2 Front cover switch Detects opening/closing of the front cover.
SW3 Left door switch Detects opening/closing of the left door.
SW4 Cassette 1 size detection switch Detects the cassette 1 paper size.
Symbol Part No. DC controller PCB Power supply PCB
SW2 FM2-4433 J12
SW3 FM2-4433 J12
SW4 WC2-5332 J213
SR101
SR206SR202
SR204
SR209
SR208
TH1, TH2, TP1
SR203
SR207
SW2
SW4
SW3

Canon iR2020 Series Specifications

General

Print Technology	Laser
Copy Resolution	600 x 600 dpi
Scan Resolution	600 x 600 dpi
Network Ready	Optional
Print Speed	20 ppm
Resolution	600 x 600 dpi
Duplex Printing	Optional
Connectivity	USB 2.0
Type	Monochrome
Paper Size	A4, A5, B5
Copy Speed	20 cpm
Multiple Copy	Up to 99 copies
Scan Speed	20 ipm
Warm-up Time	Less than 15 seconds
First Print Time	Less than 10 seconds
Paper Input	250 sheets
First Copy Time	Less than 10 seconds
