2. Installation and Connections
❶
Setting Up the Screen and the Projector
Selecting a Location (LV-7265)

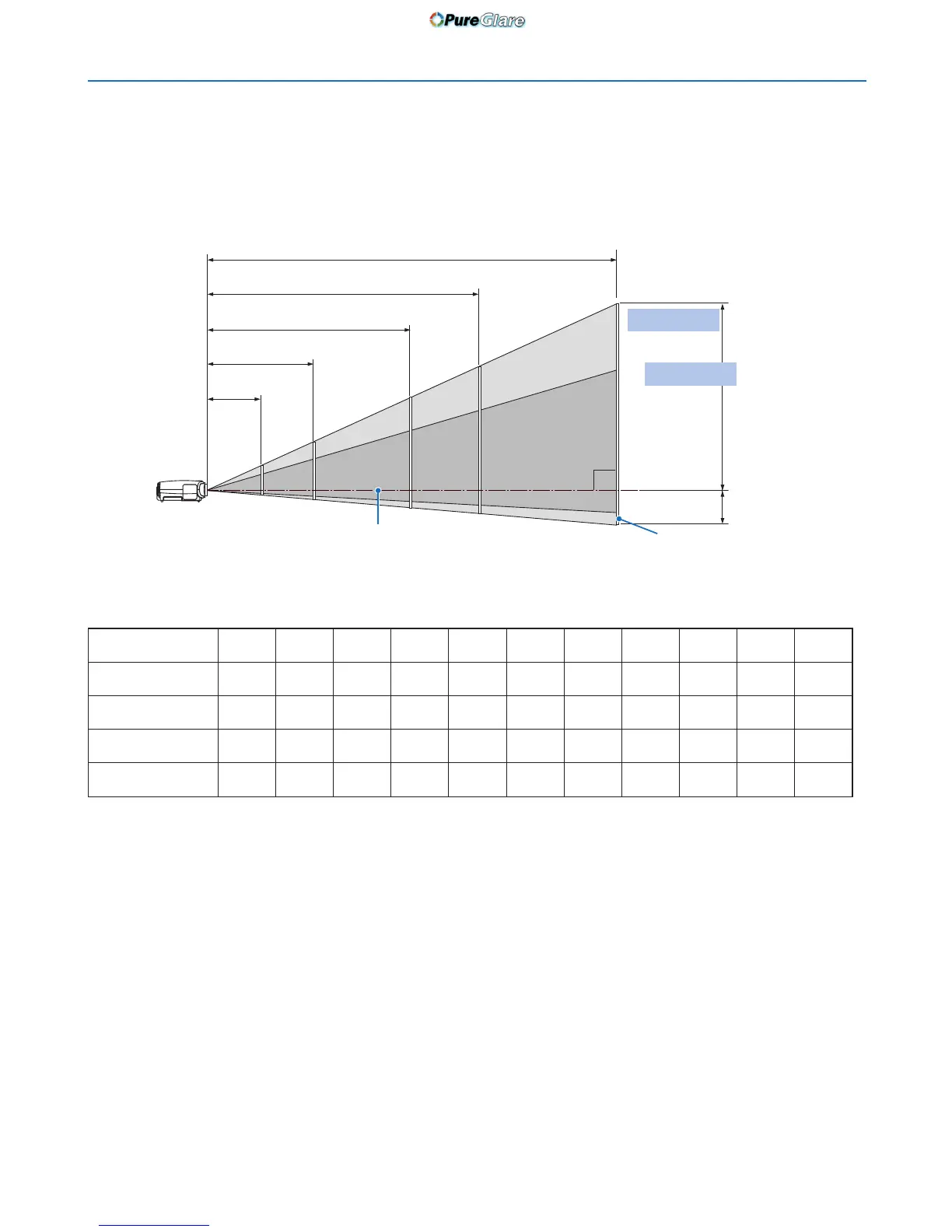

The further your projector is from the screen or wall, the larger the image. The minimum size the image can be
is approximately 25" measured diagonally when the projector is roughly 1.1 m (3.7’) from the wall or screen. The
largest the image can be is 300" when the projector is about 8.8 m (29.1’) from the wall or screen. Use the drawing
below as a guide.
200"
128"
190"
150"
96"
80"
50"
40"
25"
300"
H1
H2
8.4m
5.6m
4.2m
2.2m
1.1m
Zoom (max.)
Zoom (min.)
Optional axis when image is projected
at right angle to the screen.
Throw Distance and Screen Size
Screen
H1 and H2: H1 is the height of the screen from the intersection of optical axis and screen surface, and H2 is the
height of the intersection when an image is projected at right angle to the screen.
Screen size (W×H) cm
25”
51×38
30”
61×46
40”
81×61
60”
122×91
80”
163×122
100”
203×152
150”
305×229
180”
366×206
200”
406×305
250”
508×381
300”
610×457
Projection distance
Zoom (max)
––
1.1m
(3.6’)
1.7m
(5.5’)
2.2m
(7.3’)
2.8m
(9.2’)
4.2m
(13.8’)
5.0m
(16.6’)
5.6m
(18.4’)
7.0m
(23.1’)
8.4m
(27.7’)
Projection distance
Zoom (min)
1.1m
(3.5’)
1.3m
(4.2’)
1.7m
(5.7’)
2.6m
(8.5’)
3.5m
(11.4’)
4.3m
(14.3’)
6.5m
(21.6’)
7.9m
(25.9’)
–––
H1
32cm
(1.1’)
39cm
(1.3’)
51cm
(1.7’)
77cm
(2.5’)
103cm
(3.4’)
129cm
(4.2’)
193cm
(6.4’)
231cm
(7.6’)
257cm
(8.5’)
321cm
(10.6’)
386cm
(12.7’)
H2
6cm
(0.2’)
7cm
(0.2’)
10cm
(0.3’)
14cm
(0.5’)
19cm
(0.6’)
24cm
(0.8’)
36cm
(1.2’)
43cm
(1.4’)
48cm
(1.6’)
60cm
(2.0’)
71cm
(2.4’)
http://www.pureglare.com.au

Canon LV-7265 Specifications

General

Resolution	XGA (1024 x 768)
Brightness	3000 ANSI lumens
Lamp Life	3000 hours (Normal Mode)
Technology	LCD
Projection Size	30" to 300"
Input Ports	HDMI, VGA, Composite Video, S-Video
Output Ports	VGA, Audio
Noise Level	30 dB (Eco Mode)
