Canon MF728Cdw - Image Formation System

2. Removing the Left Cover.(Refer to “Removing the
Left Cover” on page 118)
3. Removing the Rear Upper Cover.(Refer to
“Removing the Rear Upper Cover” on page 123)
4. Removing the Rear Cover.(Refer to “Removing the
Rear Cover” on page 123)
5. Removing the Rear Lower Cover.(Refer to
“Removing the Rear Lower Cover” on page 123)
6. Removing the Rear Cover Rib Unit.(Refer to
“Removing the Rear Cover Rib Unit” on page 125)

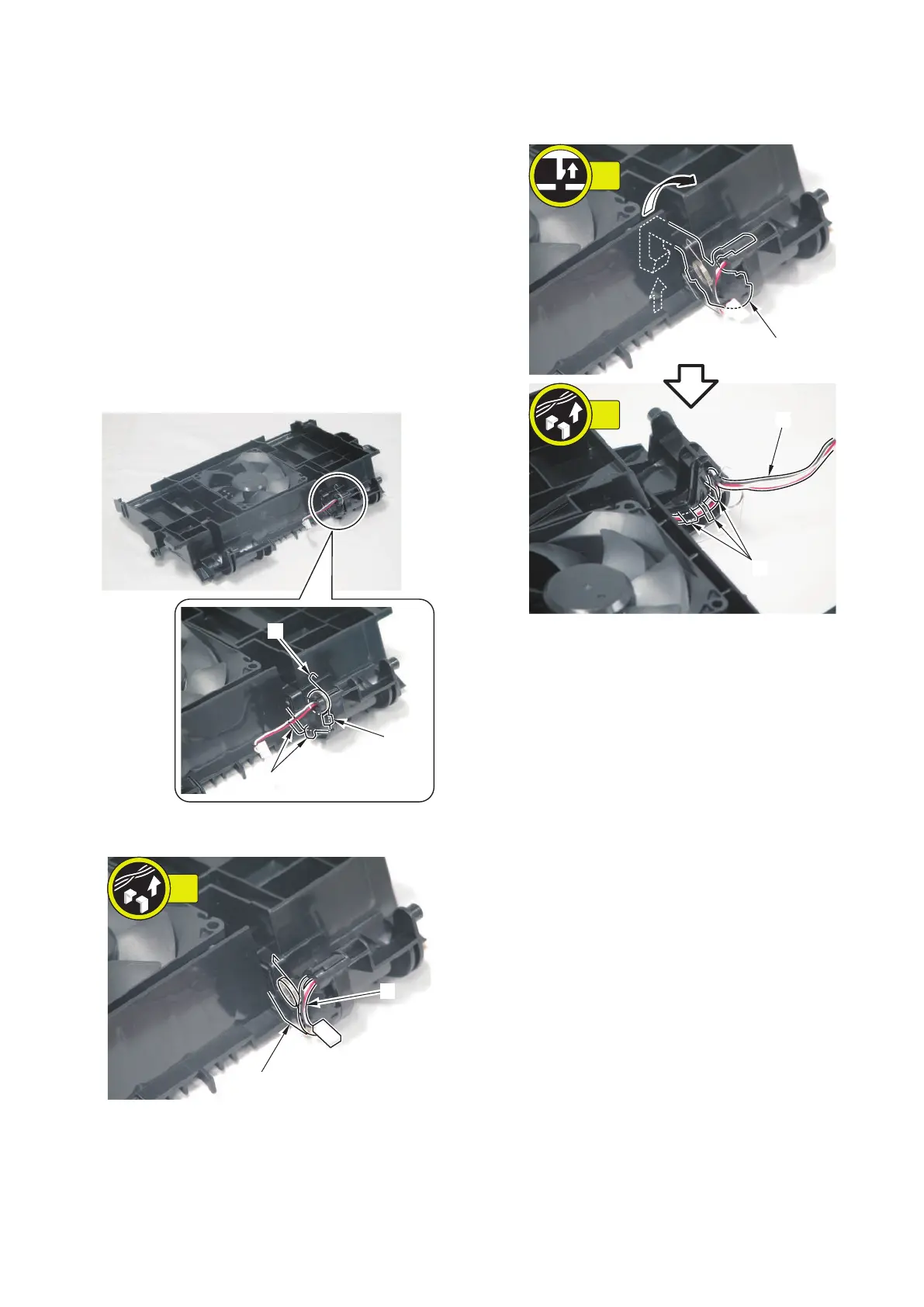

■ Procedure
1. Remove the spring [1].
• 3 bosses [2]
[1]
[2]
[2]
2. Free the harness [2] from the spring [1].
[1]
[2]
1x
3. Remove the fixing guide [1] and free the harness [2]
from the harness guide.
• 3 fixing guides [3]
[2]
[1]
[3]
3x
1x
4. Disassembly/Assembly
182
