Canon MF728Cdw - Page 222

■ Procedure
CAUTION:
Be sure not to touch the Secondary Transfer Roller [1]
and the ITB [2].
[1]
[2]

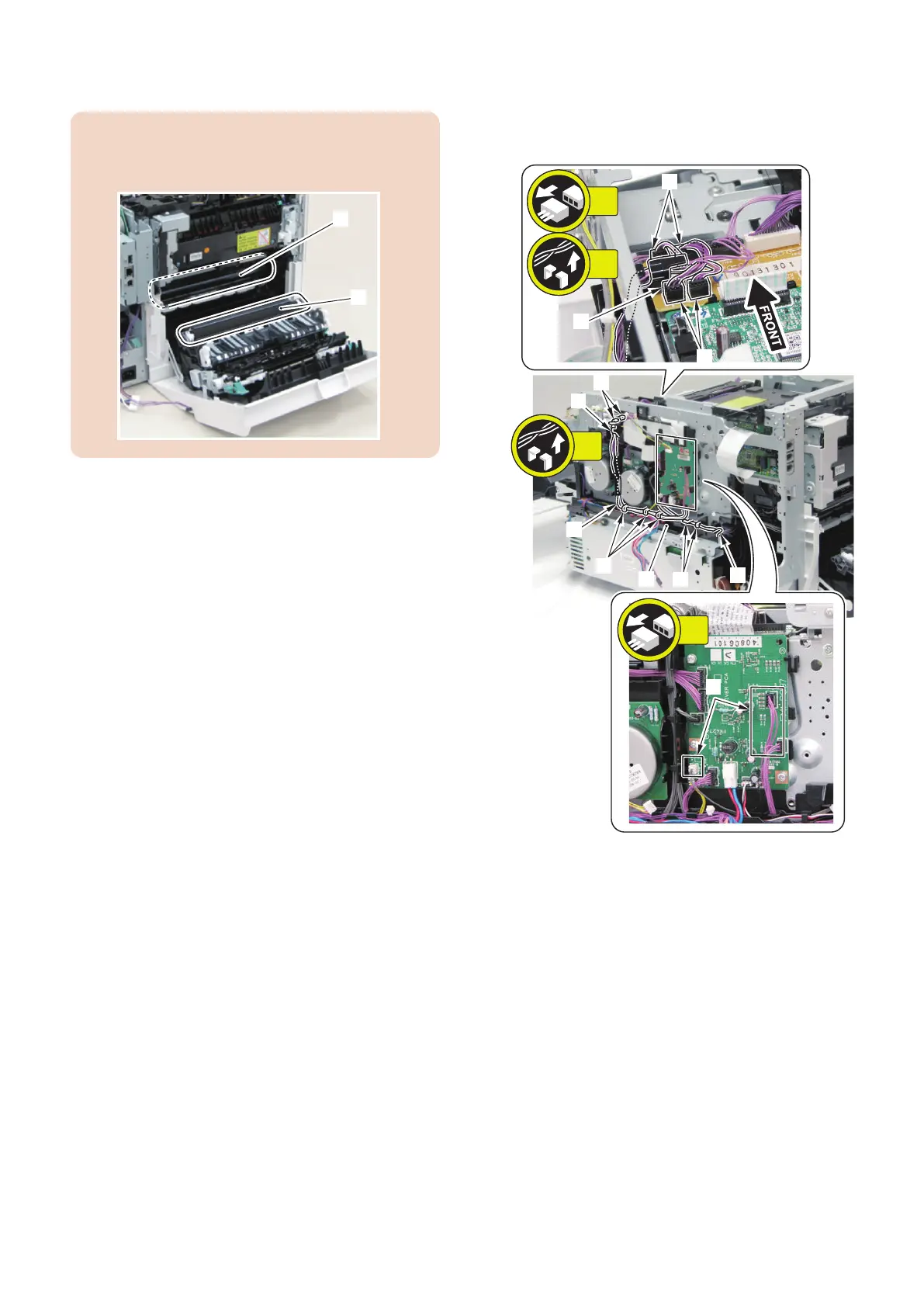

1. Remove the wire harness [2] from the wire harness
guide [1].
• 8 connectors [3]
• 10 fixing guides [4]
[3]
[3]
[4]
[4]
[4]
[4]
[4]
[2]
[4]
[1]
[3]
1x
9x
4x
3x
4. Disassembly/Assembly
214
