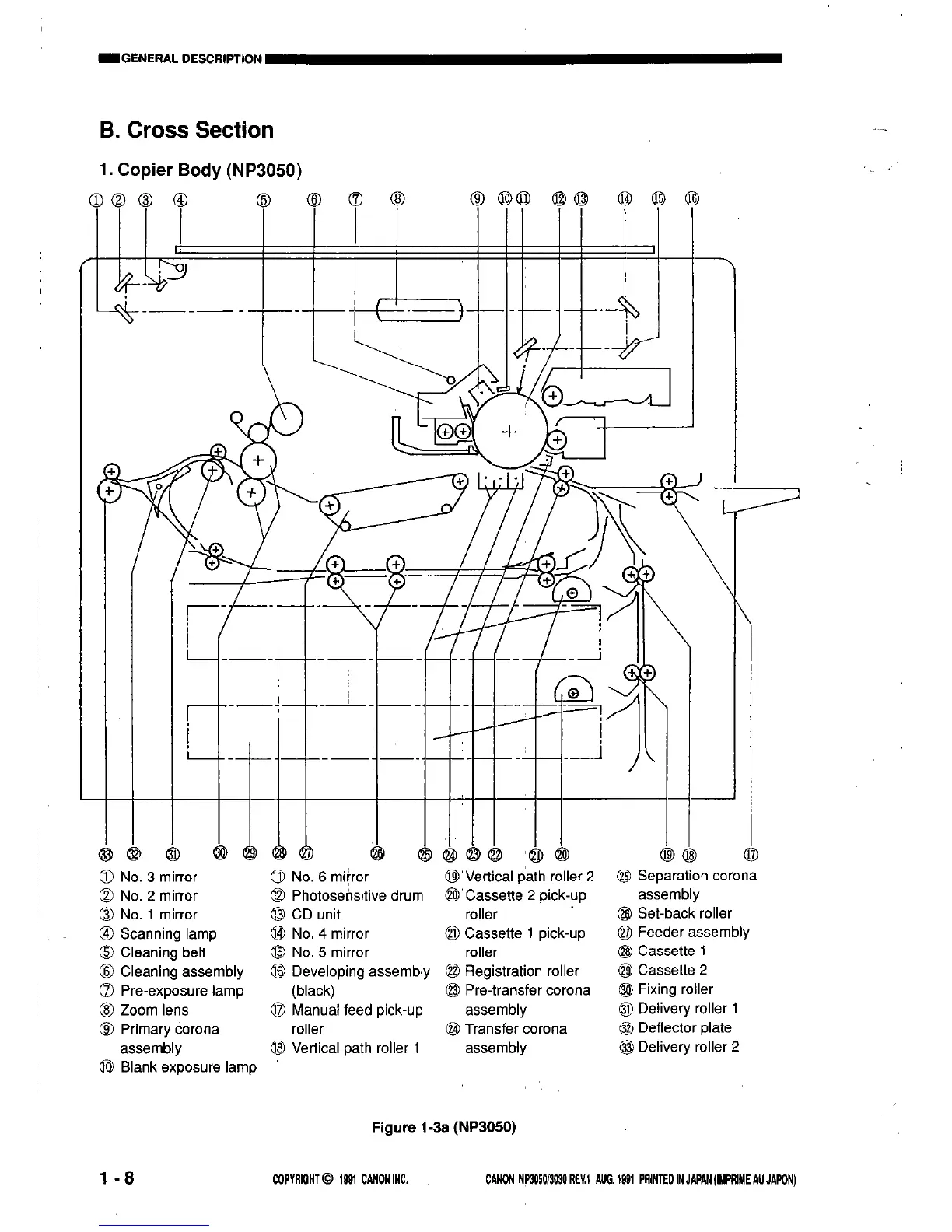

B. Cross Section
1. Copier Body (NP3050)
0 No. 3 mirror
0 No. 2 mirror
@ No. 1 mirror
@I Scanning lamp
@ Cleaning belt
8 Cleaning assembly
0 Pre-exposure lamp
@ Zoom lens
@ Primary corona
assembly
@ Blank exposure lamp
_
I
D
0jI No. 6 mirror
0 Photosensitive drum
@ Vertical path roller 2
@I Cassette 2 pick-up
@J CD unit
roller
@ No. 4 mirror 0 Cassette 1 pick-up
@ No. 5 mirror
roller
@ Developing assembly
@I Registration roller
(black)
@ Pre-transfer corona
0 Manual feed pick-up assembly
roller
@ Transfer corona
@ Vertical path roller 1 assembly
@$ Separation corona
assembly
Q$ Set-back roller
@I Feeder assembly
@ Cassette 1
@ Cassette 2
@ Fixing roller
@ Delivery roller 1
@ Deflector plate
@ Delivery roller 2
Figure 1-3a (NP3050)
l-8
