Canon PowerShot ELPH 320 HS User Manual

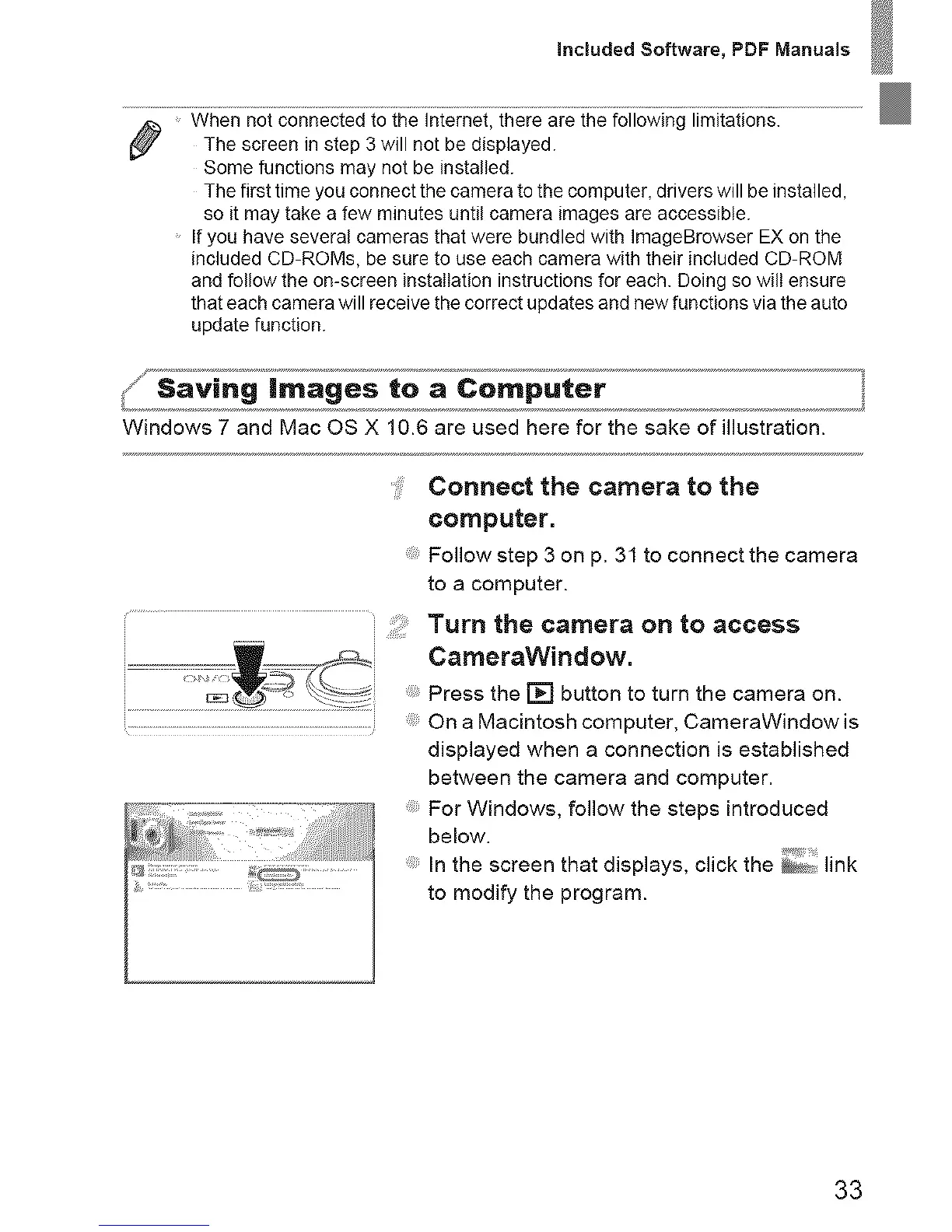

IncEuded Software, PDF Manuals
When not connected to the Internet, there are the following limitations.The screen in step 3 will not be displayed.
Some functions may not be installed.
The first time you connect the camera to the computer, drivers will be installed,
so it may take a few minutes until camera images are accessible.
If you have several cameras that were bundled with ImageBrowser EX on the
included CD-ROMs, be sure to use each camera with their included CD-ROM
and follow the on-screen installation instructions for each. Doing so wilt ensure
that each camera will receive the correct updates and new functions via the auto
update function.
Windows 7 and Mac OS X 10.6 are used here for the sake of illustration.
Connect the camera to the
computer.
Follow step 3 on p. 31 to connect the camera
to a computer.
Turn the camera on to access
CameraWindow.
Press the [] button to turn the camera on.
On a Macintosh computer, CameraWindow is
displayed when a connection is established
between the camera and computer.
For Windows, follow the steps introduced
below.
In the screen that displays, click the _ link
to modify the program.
33

Canon PowerShot ELPH 320 HS Specifications

General

Megapixel	16.1 MP
Camera type	Compact camera
Sensor type	CMOS
Image stabilizer	Yes
Total megapixels	16.8 MP
Image sensor size	1/2.3 \
Supported aspect ratios	3:2, 4:3, 16:9
Maximum image resolution	4608 x 2592 pixels
Still image resolution(s)	640 x 360, 640 x 424, 1600 x 1064, 1920 x 1080, 3264 x 1832, 3264 x 2176, 4608 x 3072
Digital zoom	4 x
Optical zoom	5 x
Combined zoom	20 x
Focal length range	4.3 - 21.5 mm
Maximum aperture number	5.9
Minimum aperture number	2.7
Maximum focal length (35mm film equiv)	120 mm
Minimum focal length (35mm film equiv)	24 mm
Focus	TTL
Focus adjustment	Auto
Normal focusing range	0.05 - ∞/0.9 - ∞ m
Auto focusing (AF) modes	Single Auto Focus
Macro focusing range (wide)	0.03 - 0.5 m
Normal focusing range (wide)	0.05 - ∞ m
Auto Mode focusing range (tele)	0.9 - ∞ m
Auto Mode focusing range (wide)	0.03 - ∞ m
Light metering	Centre-weighted, Spot
ISO sensitivity	100, 200, 400, 800, 1600, 3200
ISO sensitivity (max)	3200
ISO sensitivity (min)	100
Light exposure correction	± 2EV (1/3EV step)
Fastest camera shutter speed	1/2000 s
Slowest camera shutter speed	15 s
Flash modes	Auto, Flash off, Flash on, Slow synchronization
Flash range (tele)	0.9 - 2.5 m
Flash range (wide)	0.5 - 3.5 m
Flash recharging time	10 s
Digital SLR	No
Power source type	Battery
Camera shutter speed	1-1/2000; 15-1/2000 s
Scene modes	Night, Portrait, Self-portrait, Snow
Image editing	Resizing, Rotating, Trimming
Photo effects	Black&White, Neutral, Sepia, Skin tones, Vivid
White balance	Auto, Cloudy, Custom modes, Daylight, Fluorescent, Tungsten
Shooting modes	Auto, Movie
Camera playback	Movie, Single image, Slide show, Thumbnails
Self-timer delay	2, 10 s
Camera file system	DPOF 1.1, Exif 2.3
Image quality adjustment	Contrast, Saturation, Sharpness
On Screen Display (OSD) languages	ARA, CHI (SIMPL), CHI (TR), CZE, DAN, DEU, DUT, ENG, ESP, FIN, FRE, GRE, HUN, ITA, JPN, KOR, NOR, POL, POR, RUM, RUS, SWE, THA, TUR, UKR
Video resolutions	640 x 480, 1280 x 720 pixels
Motion JPEG frame rate	24 fps
Video formats supported	H.264, MOV
Maximum video resolution	1920 x 1080 pixels
Analog signal format system	NTSC, PAL
Internal memory	- MB
Compatible memory cards	SD, SDHC, SDXC
Maximum memory card size	32 GB
Field of view	100 %
Display diagonal	3.2 \
Display resolution (numeric)	461000 pixels
USB version	2.0
Product color	Black
Battery type	NB-11L
Battery life (CIPA standard)	170 shots
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Depth	20.8 mm
Width	93.5 mm
Height	56.8 mm
Weight	130 g
Weight (including battery)	145 g
