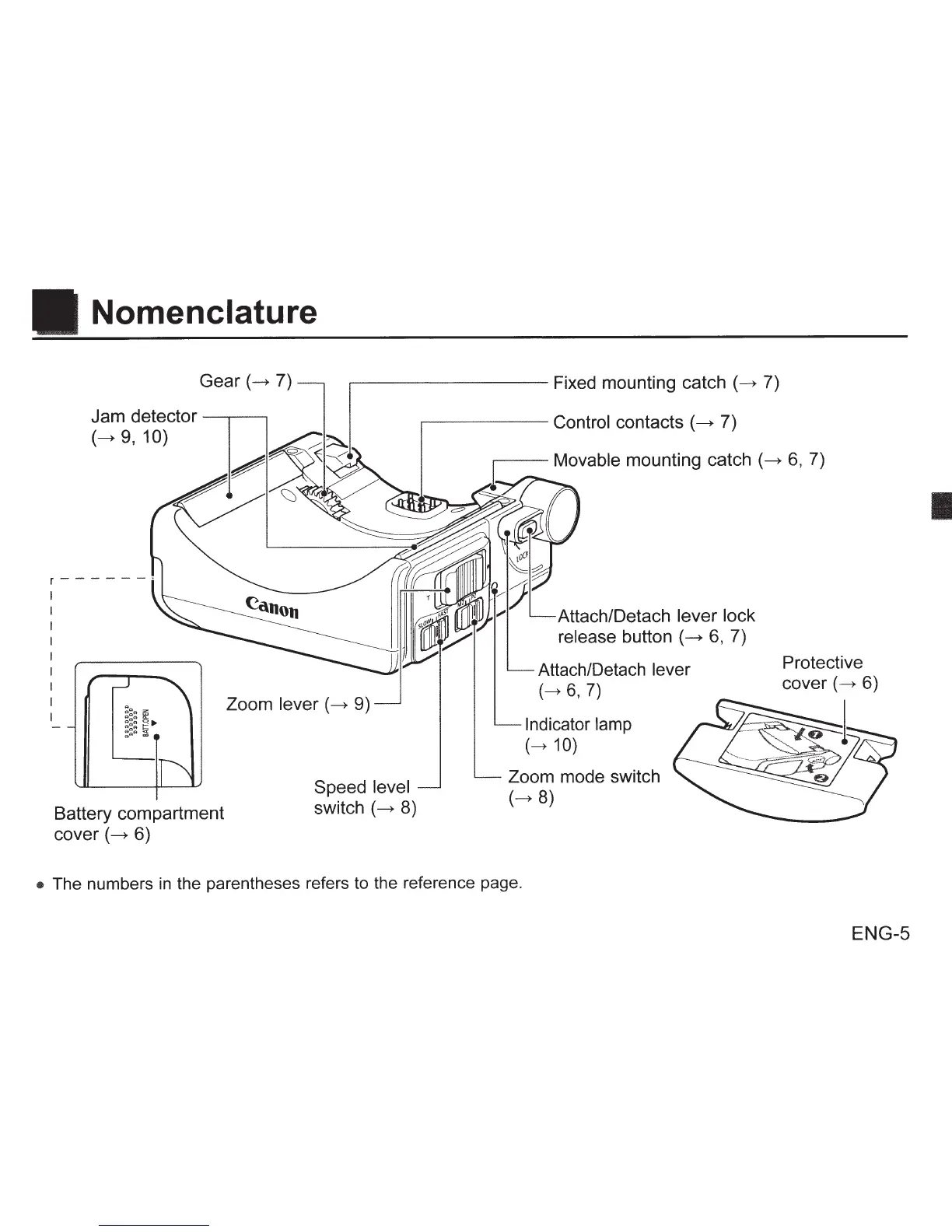

Nomenclature
Gear(~
7)
r---------
Fixed mounting catch
(~
7)
Jam detector
-.-----.
(~9,10)
r----
--
·
I
Battery compartment
cover(~
6)
Zoom
lever(~
9)
Speed level
switch(
~
8)
...-------Control
contacts(~
7)
.-----
Movable
mounting catch (
~
6,
7)
Attach/Detach lever
(~
6,
7)
Indicator lamp
(~
10)
Zoom mode switch
(~
8)
•
The numbers in the parentheses refers to the reference page.
