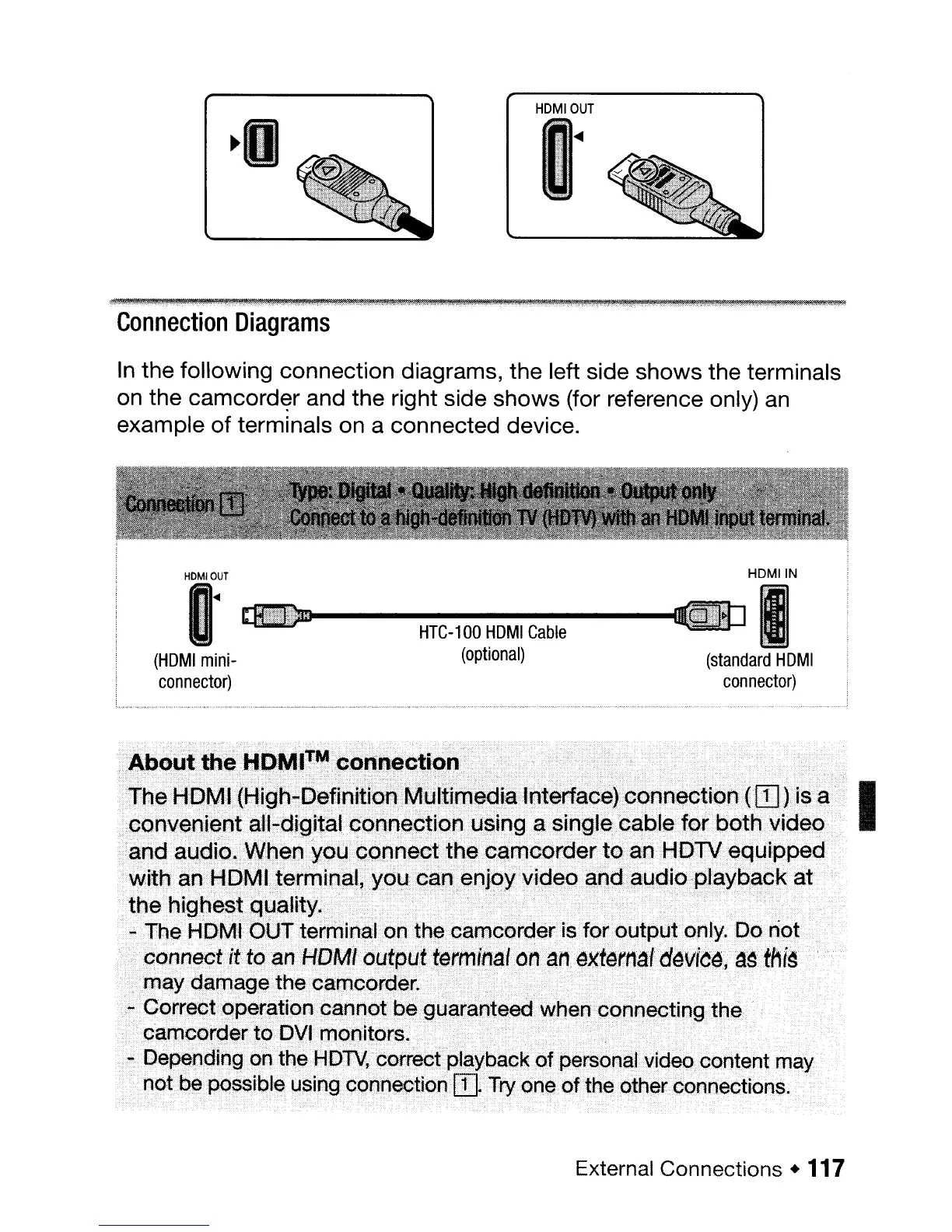

HDMIOUT
....
Connection
Diagrams
In
the following connection diagrams, the left side shows the terminals
on
the
camcord~r
and the right side shows (for reference only)
an
example of terminals
on
a connected device.
HDMIOUT
I
·:···
...
:~
!l~
(HDMI
mini-
connector)
HTC-100
HDMI
Cable
(optional)
HDMIIN
(standard
HDMI
connector)
About
the
HDMI™
connection
The HDMI (High-Definition Multimedia Interface) connection (ITJ) is a I
convenient aU-digital connection using a single cable for both video
and audio. When you connect the camcorder to
an
HOlY
equipped
with an HOMI terminal, you
can
enjoy video and aUdio-playback at
the highest quality.
- The HDMt OUT terminal
on
the camcorder is for
output
only. Do riot
connect it
to
an
HDMI
output
terminal
on
an
t1xternat
devi~~,
a~
tl1i~
may
damage the camcorder.
- Correct operation cannot be guaranteed when connecting the
camcorder
to
DVI
monitors.
- Depending on the
HDTV,
correct playback
of
personal video content may
not be possible using connection
[D.
Try
one
of
the other connections.
External Connections.
117
