98 9

MODEL NO. 088-0342-8

ASSEMBLY

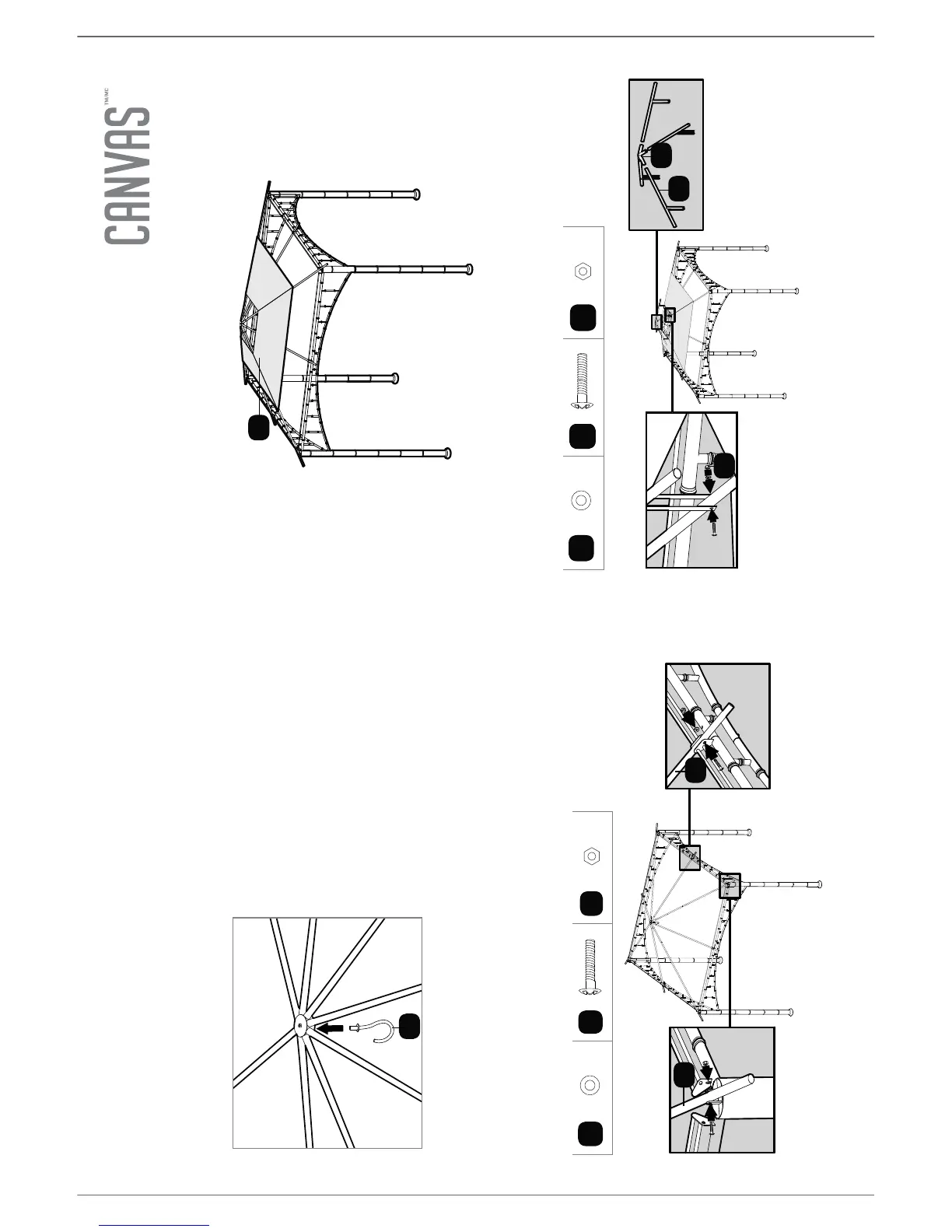

Step 6

Requires 2D, 2E, BB, CC, DD

Attach the other end of the medium bars (2D) to the supports on the corners

of the assembled frame with one M6 x 40 screw (CC), one M6 ﬂat washer (BB),

and one M6 nut (DD) for each corner of the gazebo frame.

Likewise, fasten the other end of the long bars (2E) to the supports on the

sides of the assembled frame with one M6x40 screw (CC), one M6 ﬂat

washer (BB), and one M6 nut (DD) for each side of the gazebo frame.

Step 8

Requires 3B, 3C, BB, CC, DD

Insert the top poles (3C) into the upper roof top connector (3B). Secure them

onto the corners of the lower roof assembly using an M6 x 40 screw (CC), an

M6 ﬂat washer (BB), and an M6 nut (DD).

Step 7

Requires 3A

Place the lower roof canopy (3A) on top of the roof frame.

Note: Do not unfold the canopy completely in this step in order to assemble

the top roof.

Step 5

Requires 2B

Insert and screw the hook (2B) tightly at the centre of the lower roof top

connector.

Canvas 088-0342-8 User Manual
