76 7

MODEL NO. 088-0342-8

ASSEMBLY

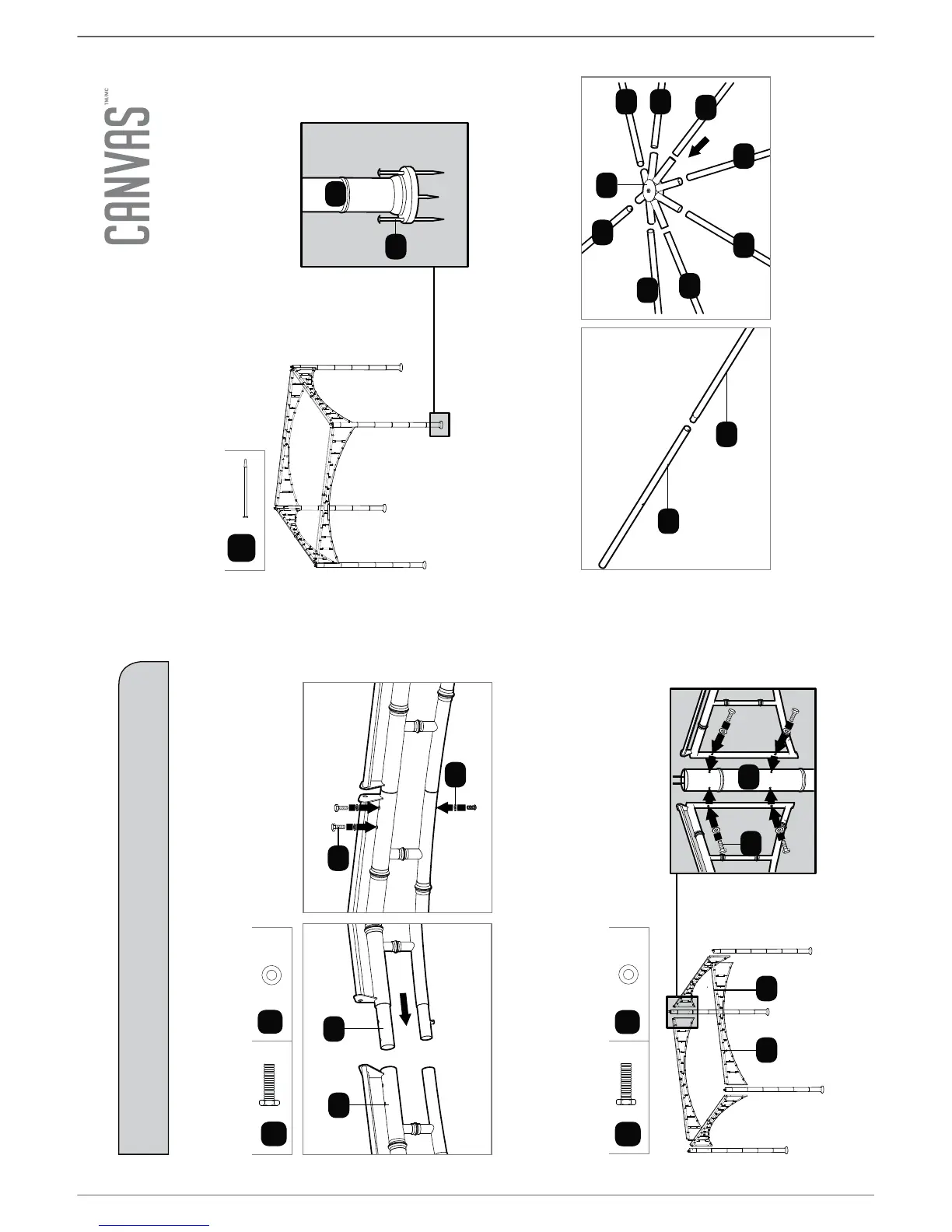

Step 1

Requires 1A, 1B, AA, BB

Step 3

Requires 1C, GG

Anchor the pole (1C) to the ground using stakes (GG). Repeat this step for

every pole until all four poles are anchored.

Step 2

Requires 1A, 1B, 1C, AA, BB

Step 4

Requires 2A, 2C, 2D, 2E

Note: When using screws and nuts to assemble the product, always use a ﬂat washer between the

frame and the screw and/or nut. This will protect the parts from wear and tear.

Connect the left frame (1A) to the right frame (1B) on the upper and lower

sides using M6 x 20 bolts (AA) and M6 ﬂat washers (BB).

Align the holes of the assembled frames (1A, 1B) with the holes of the poles (1C).

Secure the frames with the poles using four M6 x 20 screws (AA) and four

M6 ﬂat washers (BB).

Connect the four short bars (2C) to the four medium bars (2D). Insert the

other end of the short bars (2C), as well as the long bars (2E), into the lower

roof top connector (2A), alternating the bars as shown in the illustration.

2E 2C

1A 1B
