Requires

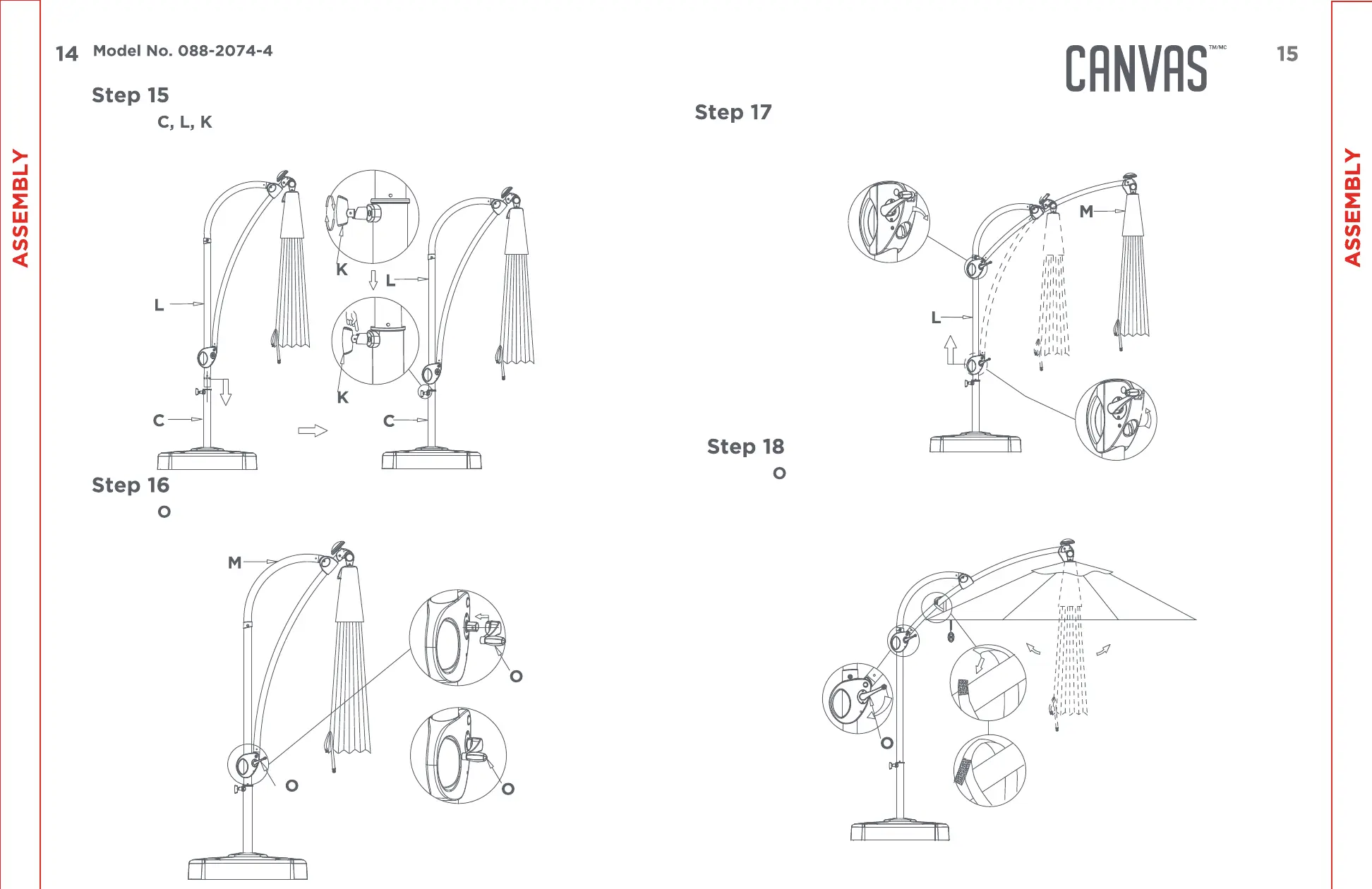

Insert the pole (L) into the base tube (C) as shown in below left figure.
Rotate the locking knob (K) 180 degrees clockwise as shown in below
right figure.
Requires
Attach the crank (O) to the handle as shown.
(1) Loosen the knob on the handle by turning it counter clockwise.
(2) Slide umbrella handle upward until the pole is fully extended and stops.
(3) Securely tighten the knob on the handle clockwise to lock into position.
Requires
Shake the canopy to separate the umbrella ribs and slowly turn the crank (O) clock-
wise to open the umbrella. Anchor the canopy to the pole with strap.
