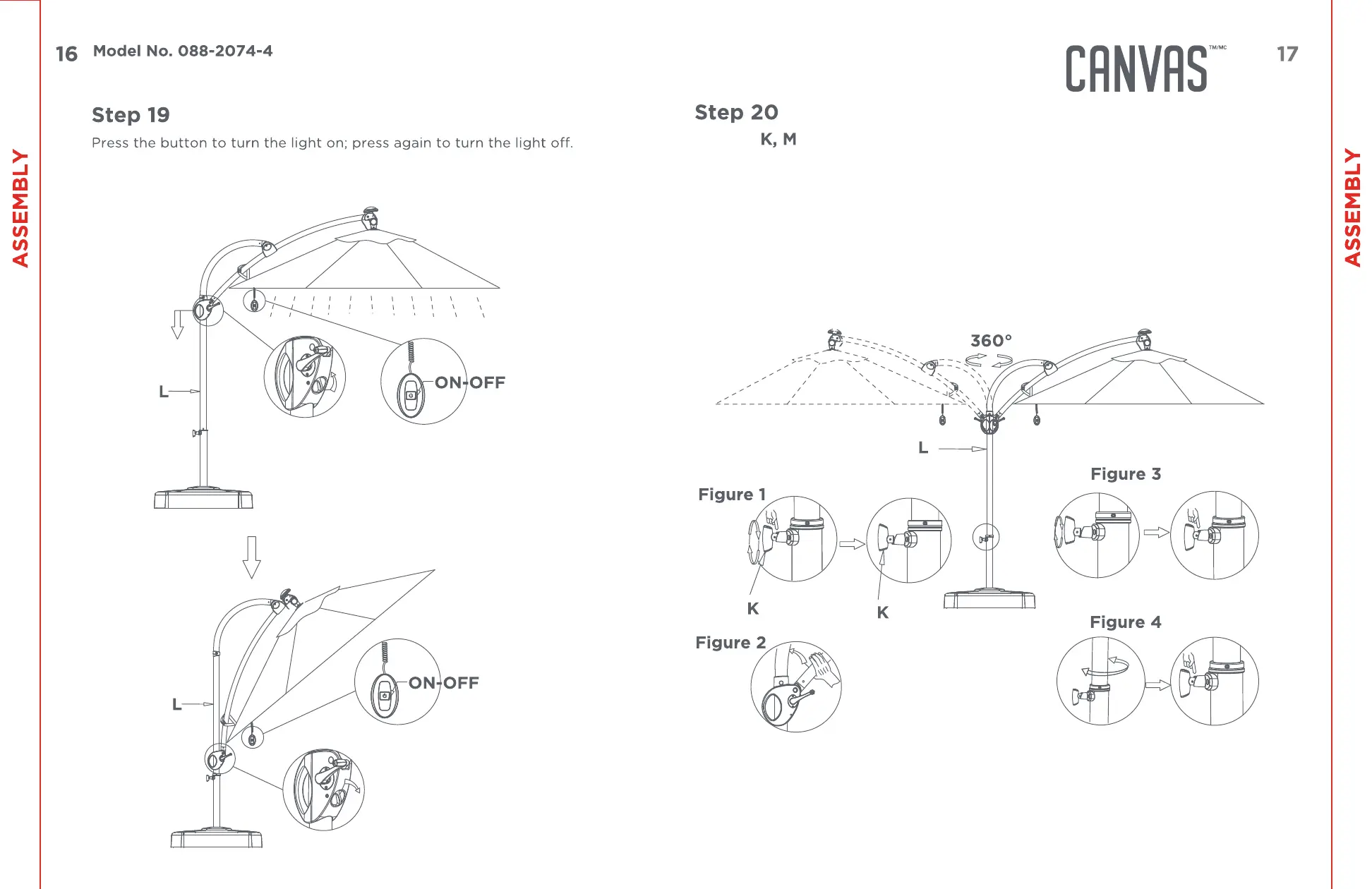

Loosen the knob on the handle holder counter-clockwise, then pull the
hand holder down to adjust the angle of the umbrella. When it is the
ideal angle to shade the sunlight, tighten the knob clockwise.
Requires
(1) Rotate the locking knob (K) 180 degrees clockwise as shown in figure 1.
(2) Hold the umbrella handle with one hand and hold the short bent tube with the other
hand to rotate the umbrella as shown in figure 2 (The umbrella can rotate up to 360
degrees).
(3) When the umbrella is at the desired position, rotate the knob 180 degrees
counter-clockwise as shown in figure 3.
(4) Rotate the umbrella shade (M) until the locking knob (K) automatically secures as
shown in figure 4.
