Canvas 088-2075-2 - Assembly Steps; Base Construction and Stability; Pole and Bracket System Assembly

Model NO. 088-2075-2
ASSEMBLY
8
ASSEMBLY
9

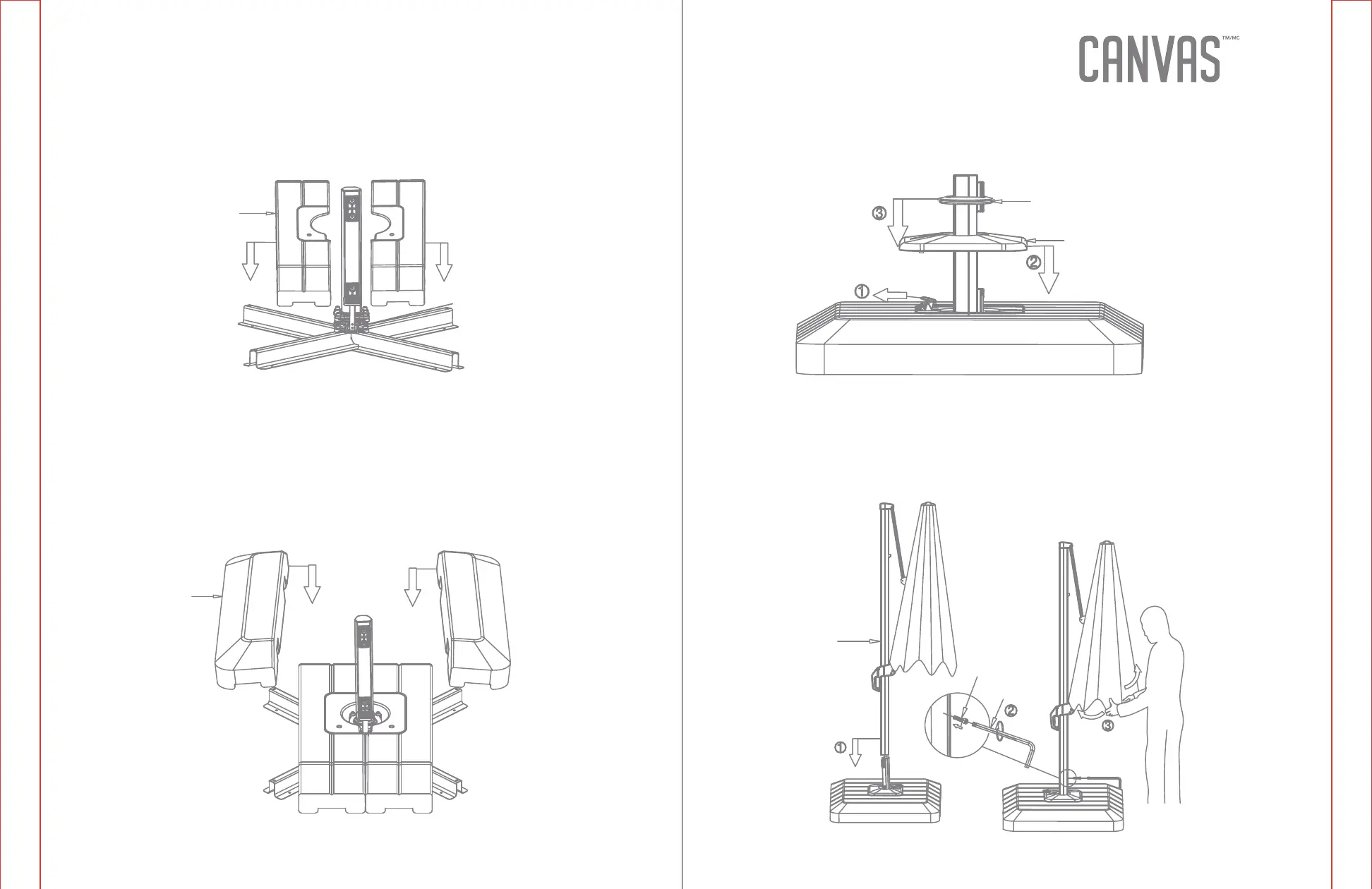

Step 4
Requires A, B, I
Attach the middle bases (I) onto the brackets (A and B).
Step 6
Requires C, D, E
Slide the lower base cover (E) and the upper base cover (D) onto
the base tube (C).
I
Step 5
Requires A, B, H
Attach the side bases (H) to the bracket (A and B).
H
D
E
Step 7
Requires C, K, DD, FF
Connect the umbrella shade (K) to the base tube (C) using M6x10
bolts (DD) and M6 hex wrench (FF).
K
DD
FF
