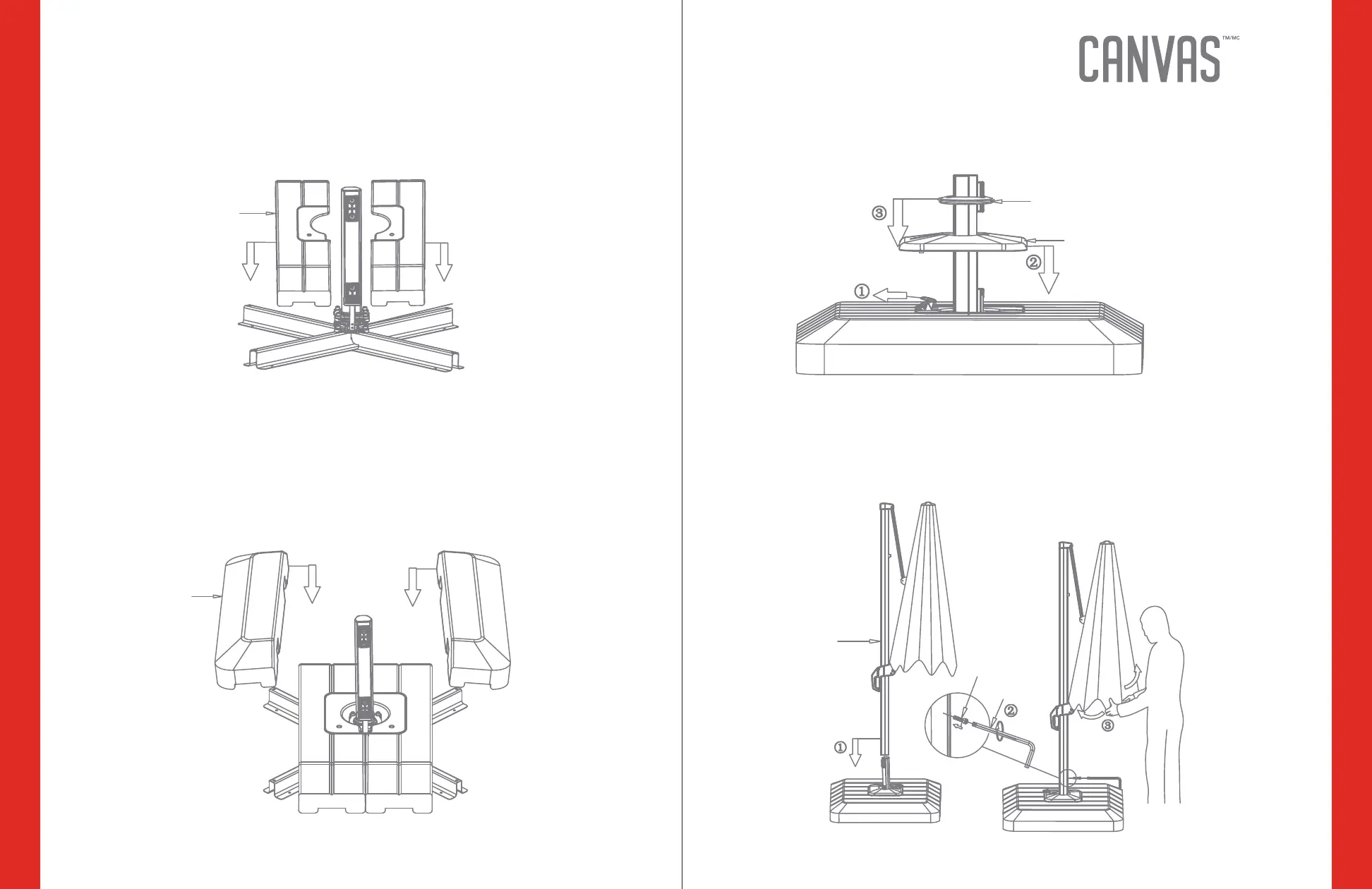

Canvas CABANA - Step 4: Attach Middle Bases; Step 5: Attach Side Bases; Step 6: Install Base Covers; Step 7: Connect Umbrella Shade

Model NO. 088-2075-2
ASSEMBLY
8
ASSEMBLY
9
Step 4
Requires A, B, I
Attach the middle bases (I) onto the brackets (A & B).
Step 6
Requires C, D, E
Insert the lower base cover (E) and the upper base cover (D) into
the base tube (C).
I
Step 5
Requires A, B, H
Attach the side bases (H) to the bracket (A & B).
H
D
E
Step 7
Requires C, K, DD, FF
Connect the umbrella shade (K) to the base tube (C) using M6x10
bolts (DD) and M6 hex wrench (FF).
K
DD
FF
NOTE: Do not
completely tighten.
