Canvas CABANA - Step 8: Position and Attach Crank; Step 9: Open Umbrella; Step 10: Rotate Umbrella; Step 11: Tilt Umbrella

Model NO. 088-2075-2
ASSEMBLY
10
ASSEMBLY
11

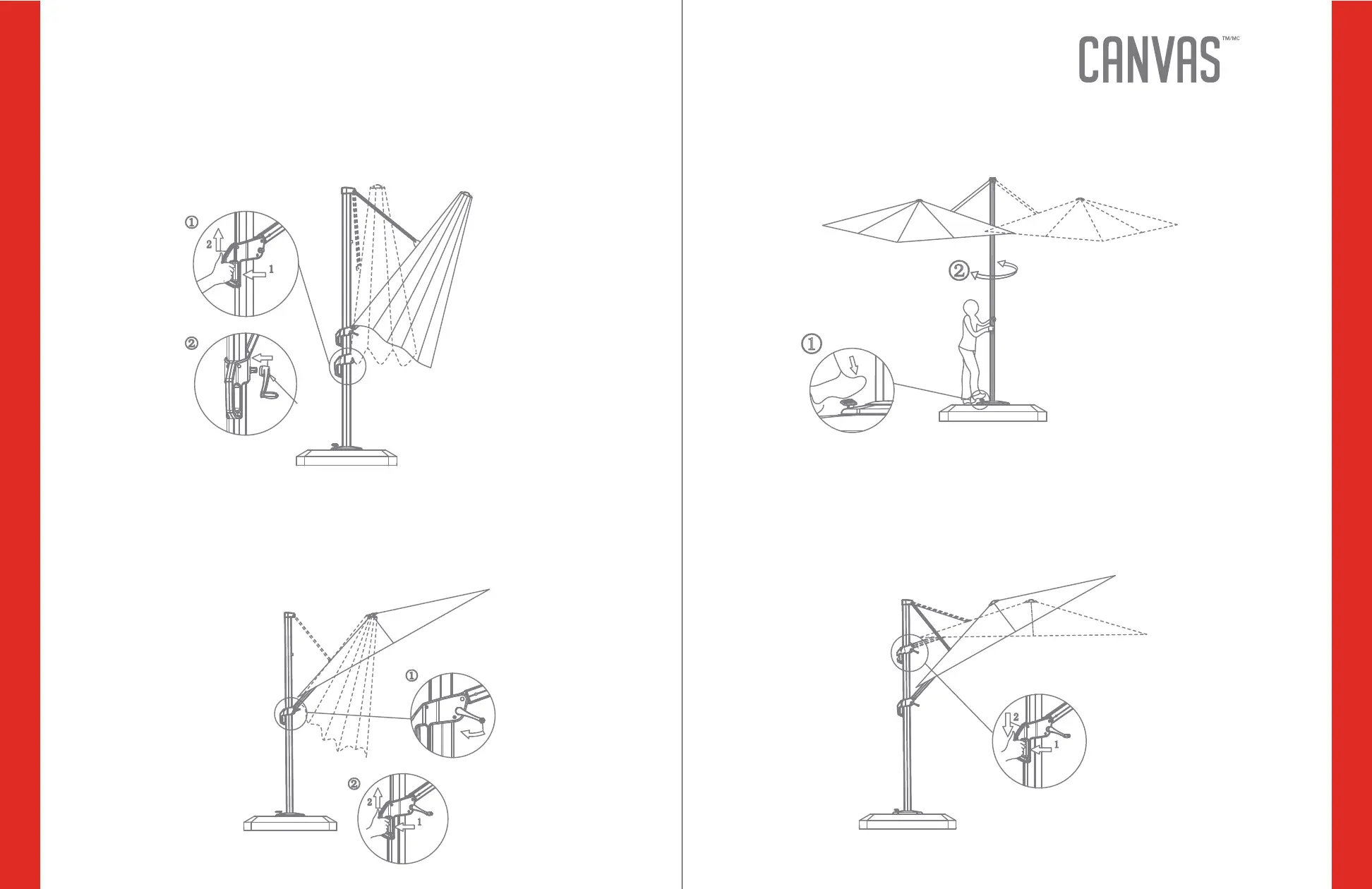

Step 8
Requires J, K
(1) Press the button on the umbrella shade (K) and push up to
desired position.
(2) Attach the crank (J) to the umbrella shade (K).
Step 10
Requires F
Hold the pedal (F) with one foot and rotate the umbrella pole, the
umbrella can rotate up to 360 degrees.
Step 9
Requires J, K
Shake the umbrella fabric before opening the umbrella.
Press the button on the umbrella shade (K) and slowly turn the
crank (J) clockwise to open the umbrella.
Step 11
Requires K
To tilt the umbrella, press the button on the umbrella shade (K)
and push up or push down to desired position.
J
