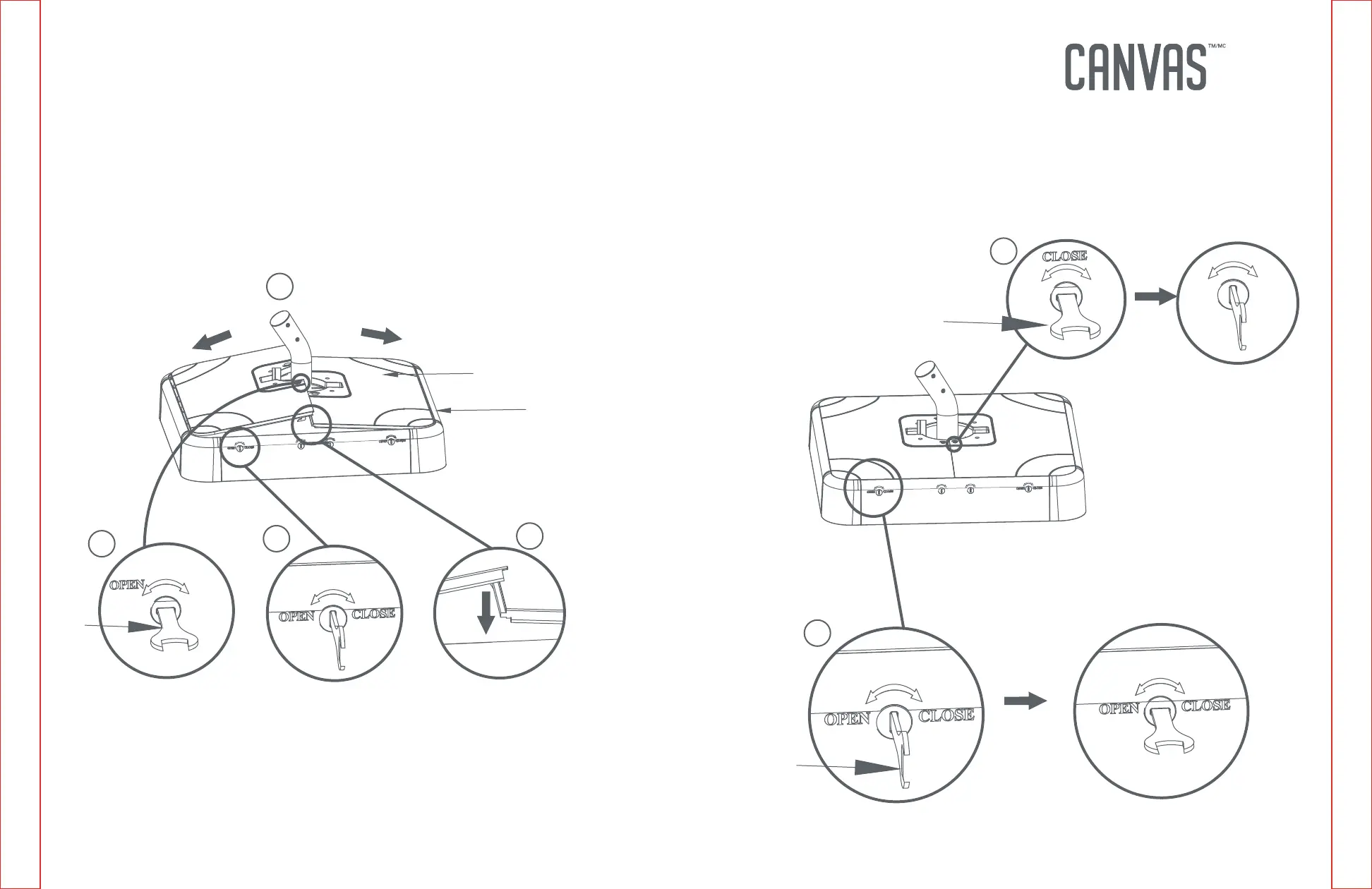

Step 8
Requires K, L, O, Y
1. Ensure the locking mechanism on the lower base cover (O) is in the
OPEN position by using the wrench (Y).
2. Ensure the locking mechanism on the lock panel (K) is in the OPEN
position by using the wrench (Y).
3. Attach the lower base cover (O) to the side panels (L).
4. Close the lower base cover (O) and ensure they are fully closed.
Step 9
Requires K, O, Y
Lock the lower base cover (O) and the lock panel (K) by turning the locking
mechanisms to the CLOSE position using the wrench (Y) as shown.
O
L
Y
Y
Y
3
1
2
4
2
1
