Model No. 088-0798-4
ASSEMBLY ASSEMBLY ASSEMBLY ASSEMBLY

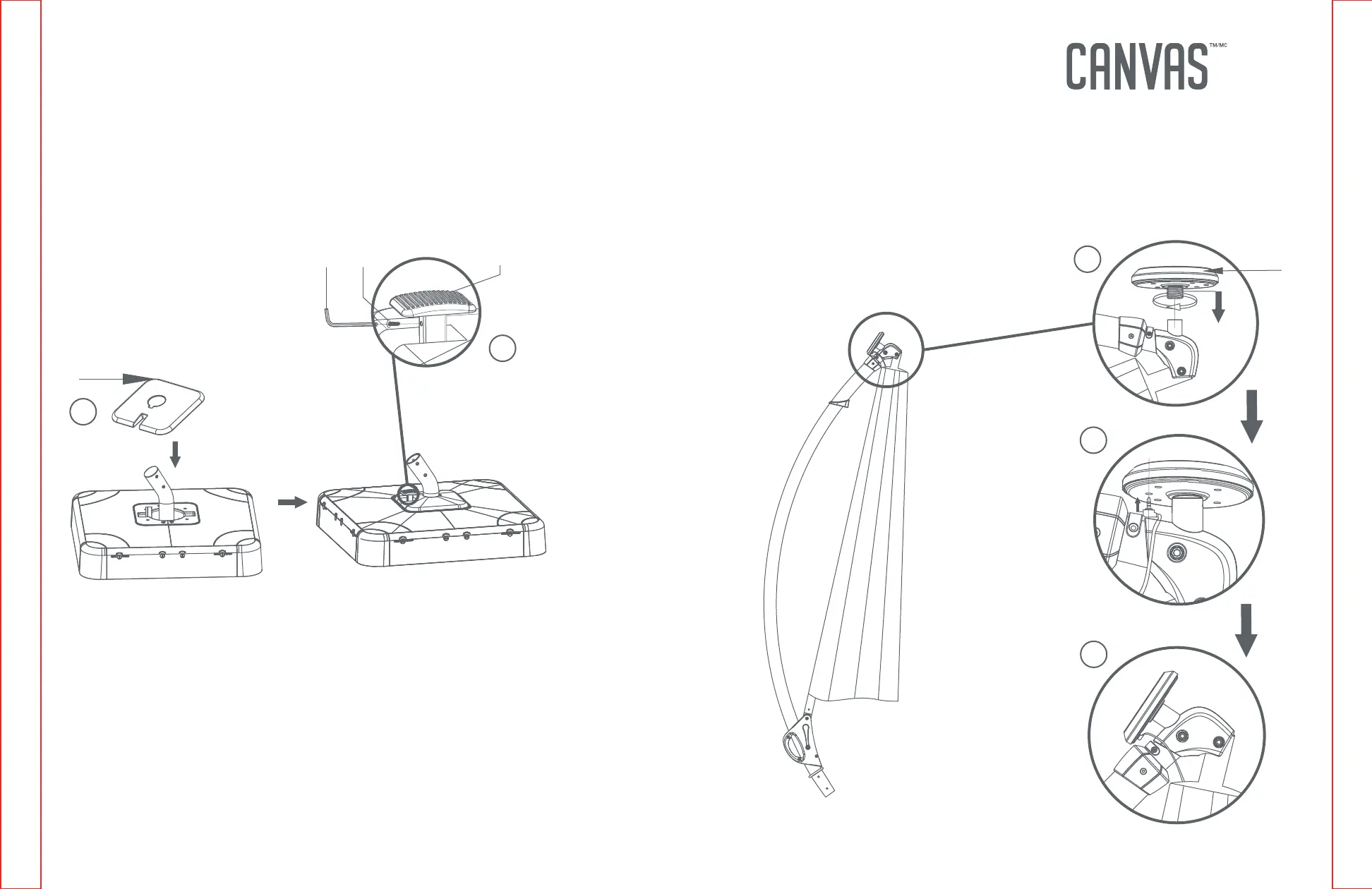

Step 10
Requires E, F, I, P, T
1. Place the upper base cover (P) onto the foot plate support arm (F).
2. Insert the foot pedal (E) into the foot plate support arm (F),
securing by inserting M6x10 mm bolt (I) and tighten with the hex
wrench S5 (T).
Step 11
Requires R, Z
1. Attach the solar receiver (Z) to the umbrella shade (R) by turning the solar receiver
(Z) clockwise until fully tightened.
2. Insert the plug into the plug hole of the solar receiver (Z).
P
T
I E
Z
1
1
2
2
3
