STEP 3:

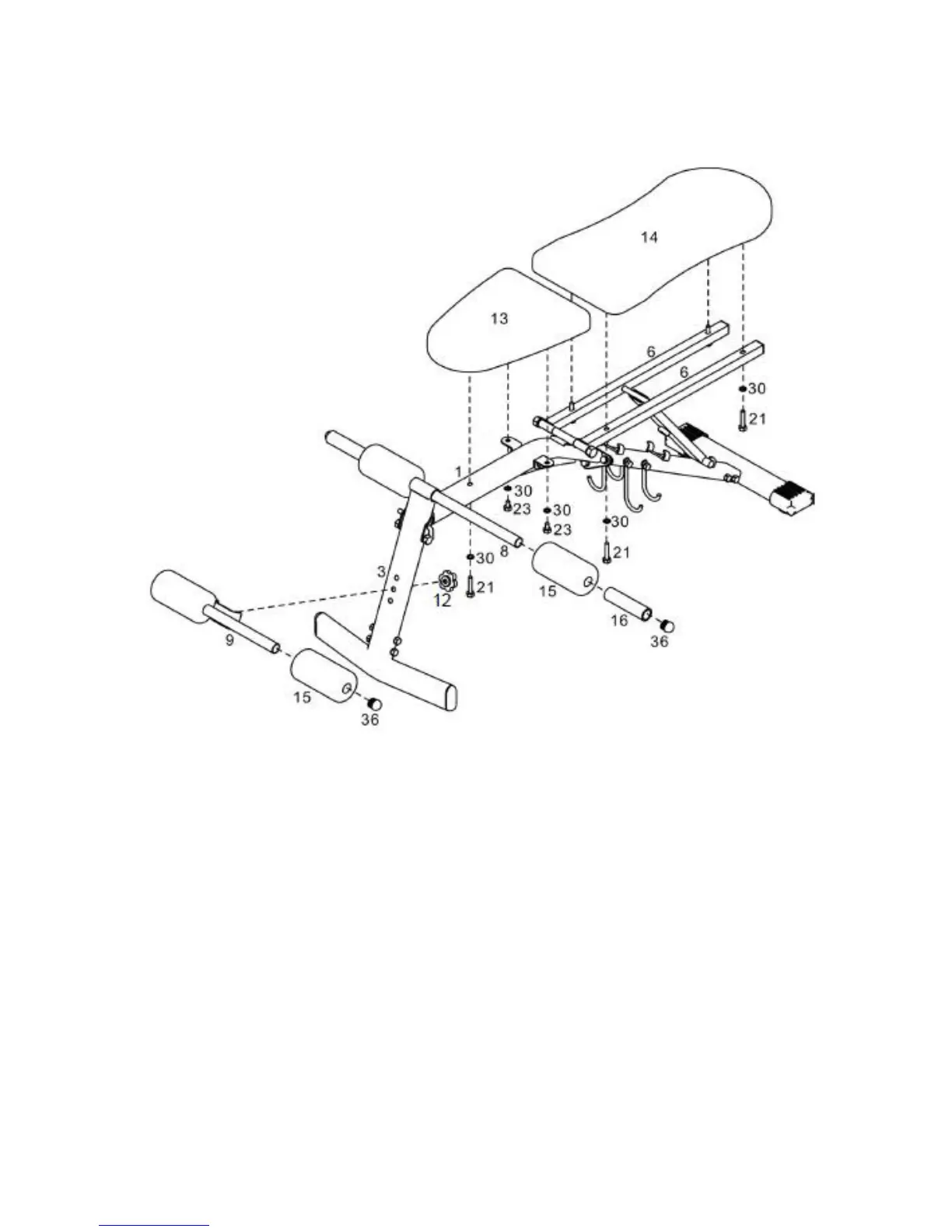

A.) Place the Seat (#13) onto the Center Support Frame (#1). Secure it to the Center
Support – Frame (#1) with two M8 x15mm Bolts (#23) and M8 Washers (#30). Secure
the Seat to the Center Support Frame with one M8 x 45mm Bolt (#21) and M8 Washer
(#30).
B.) Place the Backrest Board (#14) onto the Backrest Supports (#6). Secure it with four
M8 x 45mm Bolts (#21) and M8 Washers (#30).
C.) Attach the Cross Tube (#9) to the Front Vertical Frame (#3). Use a Knob (#12) to
secure the Tube at selected hole. Push two Foam Rolls (#15) onto the Cross Tube.
D.) Insert the Foam Tube (#8) halfway through the hole on the Front Vertical Frame (#3).
Push two Foam Rolls (#15) onto the Tube.
E.) Lubricate the inside of the Foam Grips (#16) with water. Slide the Foam Grips onto
the Foam Tube (#8) from both sides. 12
