CAP RK-14A - Product Assembly Instructions; Assembly Steps and Diagrams

PartsList/ListadePartes/Listedespièces
#
Part/ Pieza /
Pièce
Description Descripción Description
Qty./
Cant./
Qté.
1 PRK14-01 Left Main Frame Marco Izquierdo Châssis gauche 1
2 PRK14-02 Right Main Frame Marco derecho Châssis droite 1
3 PRK14-03 Main Frame Support Soporte del Marco central Support de Châssis principal 2
4 PRK14-04 Support Bar Barra de soporte Barre de support 2
5 PRK14-05 Shelves Estantes Étagères 6
6 PRK14-06 M10 x 45mm Carriage Bolt M10 x 45mm Perno Din M10 x 45mm Boulon DIN 12
7 PFM2240-21 M10 x 70mm Bolt M10 x 70 Perno M10 x 70 Boulon 6
8 PRK1-05 M10 Nylon Locknut M10 Contratuerca de nilón M10 Écrou de blocage en nylon 18
9 PRK1-06 M10 Washer M10 Arandela M10 Rondelle 24
10 PFM4004-25 50mm Square Rubber Cap 50mm Tapa cuadrada goma 50mm capuchon caoutchouc carré 4
11 PRK3-05 50mm Square Inner Cap 50mm Tapa cuadrada interna 50mm Capuchon carré intérieur 2
12 PFMS80-19 30mm Square Inner Cap 30mm Tapa cuadrada interna 30mm Capuchon carré intérieur 12











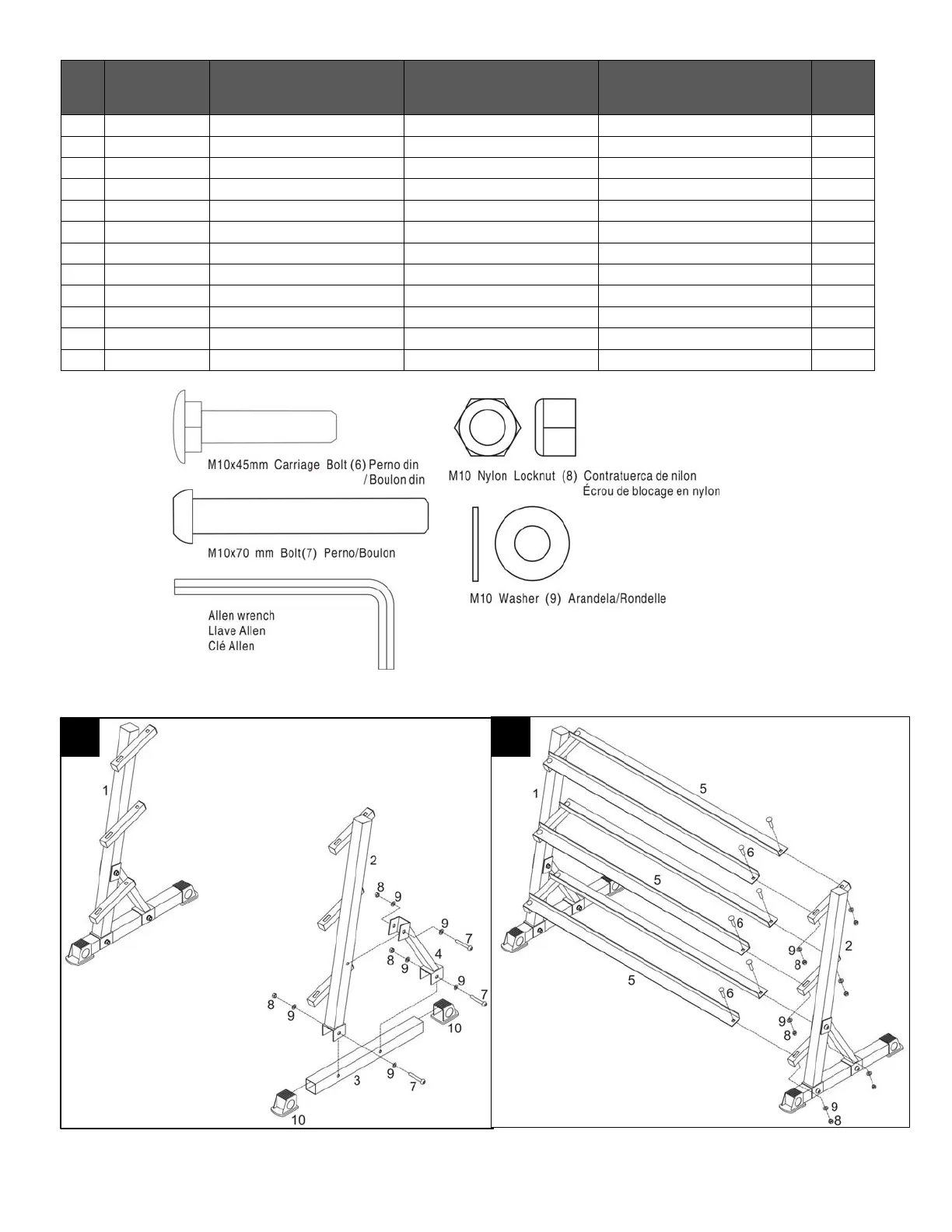

Assembly/Ensamblaje/Montage:


















1 2
