MODEL: C1071G

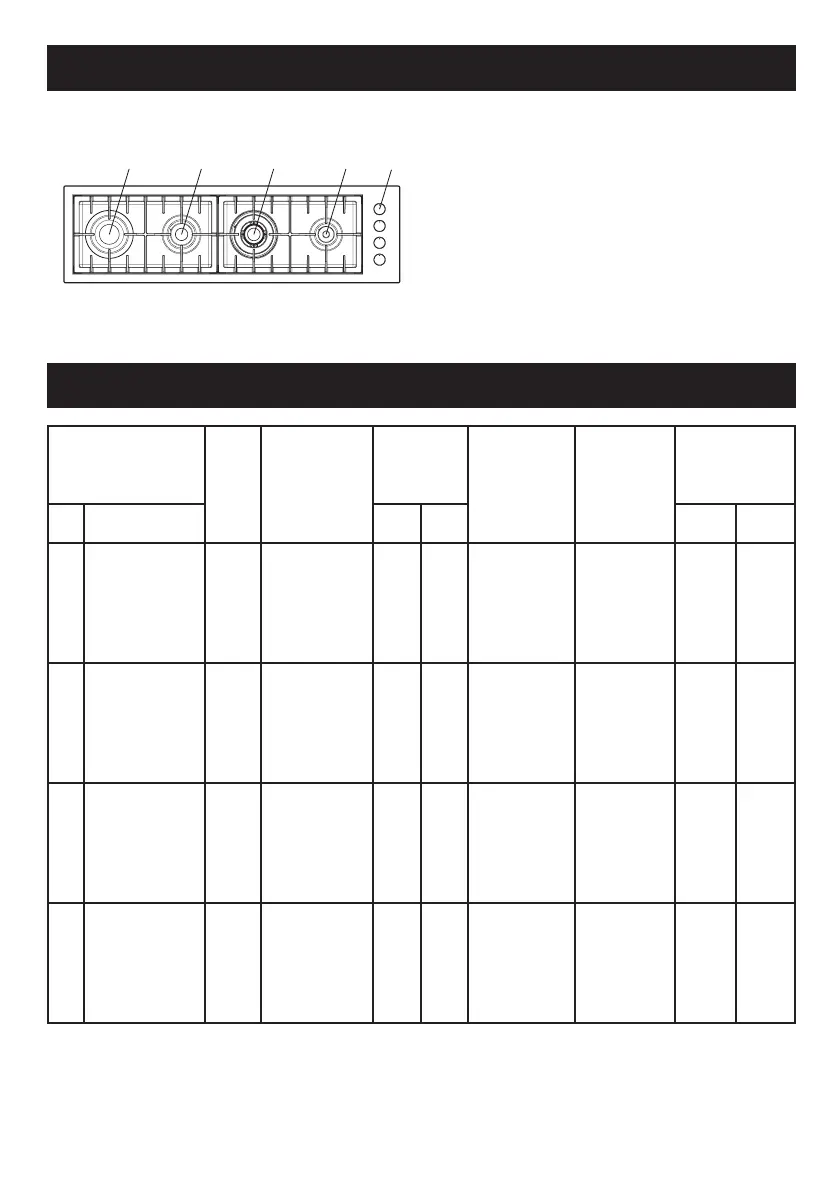

TECHNICAL CHARACTERISTIC TABLES
BURNERS
GAS
NORMAL
PRESSURE
NOMINAL
RATE
I N J E C T O R
DIAMETER
TYPE BY
PASS
DIAMETER
NOMINAL
HEAT INPUT
(W)
N°
DESCRIPTION
mbar g/h L/h 1/100 mm 1/100 mm Max. Min.
1 RAPID
G30 28 - 30 225 - 85 42 3000 950
G31 37 214 - 85 42 3000 950
G20 20 - 290 115Y Reg. 3000 950
G25 25 - 332 121 (F2) Reg. 3000 950
2 SEMI-RAPID
G30 28 - 30 126 - 65 31 1750 600
G31 37 125 - 65 31 1750 600
G20 20 - 165 97Z Reg. 1750 600
G25 25 - 194 94 Y Reg. 1750 600
3 AUXILIARY
G30 28 - 30 73 - 50 27 1000 450
G31 37 71 - 50 27 1000 450
G20 20 - 99 72X Reg. 1000 450
G25 25 - 111 72 (F1) Reg. 1000 450
4 TRIPLE RING
G30 28 - 30 255 - 95 60 3500 2100
G31 37 250 - 95 60 3500 2100
G20 20 - 334 130 Reg. 3500 2100
G25 25 - 388 138 Reg. 3500 2100
1
2
3
4
8
1 Rapid burner 3000 W
2 Semi-rapid burner 1750 W
3 Auxiliary burner 1000 W
4 Triple ring burner 3500 W
8 Control knob for burner
