Instruction manual DD610BK
46
Please keep this instruction manual for future reference
WORK SURFACE CUT-OUT:
Cut out the worktop recess accurately with a good, straight saw blade or recessing machine.
The cut edges should then be sealed so that no moisture can penetrate.
The area is cut out as illustrated. The glass ceramic hob must have a level and ush bearing.
Any distortion may lead to fracture of the glass panel. Make sure that the sealing of the hob is
properly seated.

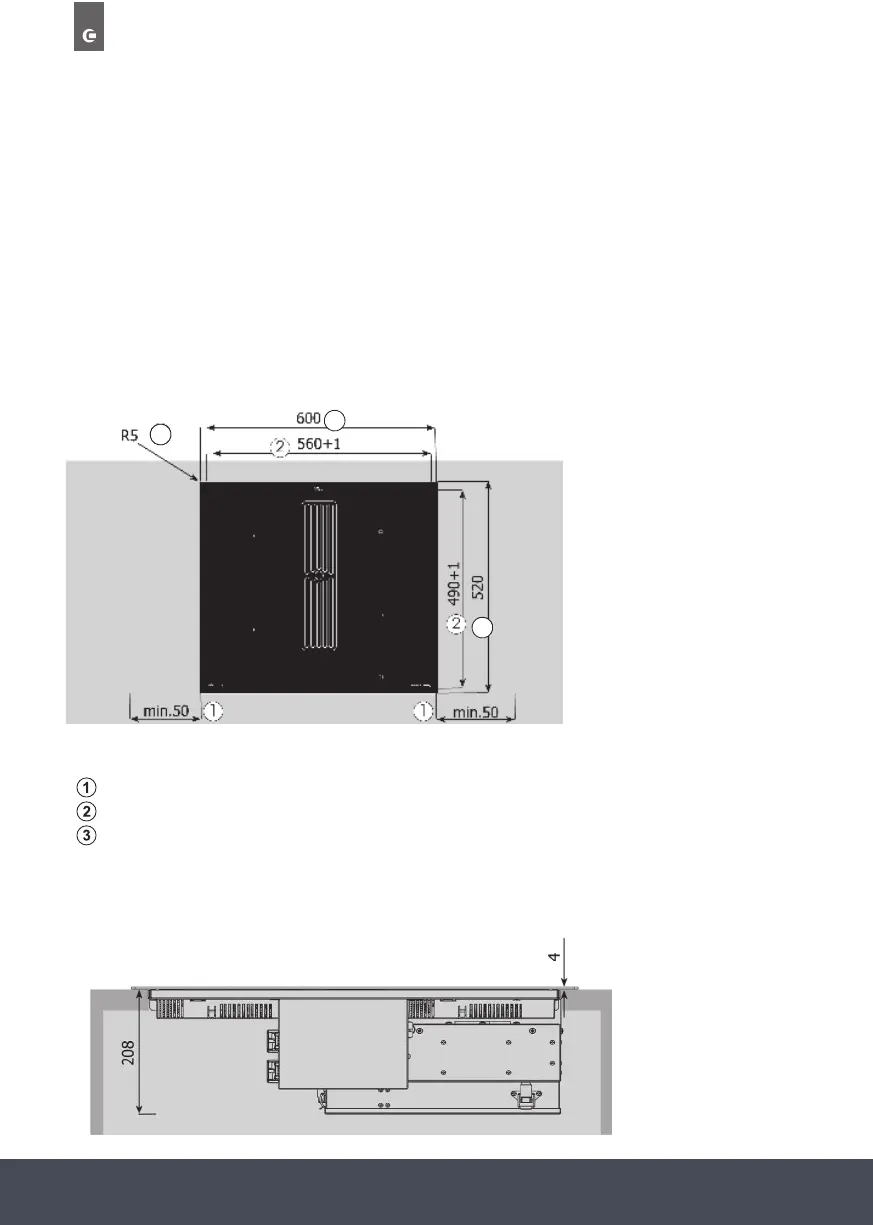

INSET INSTALLATION:
Insert the hob and align it.
Minimum distance to adjacent walls
Cutout dimensions
Outer dimensions of the hob
IMPORTANT:
There is a risk of breakage if the hob is canted or subjected to stress during installation.
Minimum distance to adjacent walls
Opening dimensions
Cutout dimensions
Outer dimensions of the hob
IMPORTANT:
There is a risk of breakage if the hob is canted or sub-jected to stress during installation.
2
Insert the hob and align it.
OVERLYING INSTALLATION
750+1
min.50
500+1
520
800
1
1
2
24
4
R5 4
min.50
3
3
3
