Instruction manual Di48232
Please keep this instruction manual for future reference
INSTALLATION INSTRUCTIONS
ATTENTION:
We strongly recommend the installation of the pipes and electrical connections should be made by
a qualified engineer or similarly qualified professional.
WARNING:
Electrical Shock Hazard. Disconnect electrical power before installing dishwasher. Failure to do so
can result in death or electrical shock.
INSTALLATION PREPARATION
The installation position of dishwasher should be near the existing inlet and drain hoses and
power cord.
One side of the cabinet sink should be chosen to facilitate the connection of drain hoses of
the dishwasher.
NOTE:
Please check the accompanying installation accessories (fixing for aesthetic door panel).
WATER SUPPLY AND DRAIN
COLD WATER CONNECTION
Connect the cold water supply hose to a
threaded 3/4 inch connector and make sure
that it is fastened tightly in place. If the water
pipes are new or have not been used for an
extended period of time, let the water run to
make sure that the water is clear. This precaution
is needed to avoid the risk of the water inlet to
be blocked and damaged.
ABOUT THE SAFETY SUPPLY HOSE
The safety supply hose consists of the double walls. The hose’s system guarantees its intervention
by blocking the flow of water in case of the supply hose breaking and when the air space between
the supply hose itself and the outer corrugated hose is full of water.
WARNING
A hose that attaches to a sink spray can burst if it is installed on the same water line as the
dishwasher. If your sink has one, it is recommended that the hose be disconnected and the
hole plugged.
WATER SUPPLY AND DRAIN
COLD WATER CONNECTION
ABOUT THE SAFETY SUPPLY HOSE
The safety supply hose consists of the double walls. The hose’s system guarantees its intervention
by blocking the flow of water in case of the supply hose breaking and when the air space between
the supply hose itself and the outer corrugated hose is full of water.
WARNING
A hose that attaches to a sink spray can burst if it is installed on the same water line as the
dishwasher. If your sink has one, it is recommended that the hose be disconnected and the
hole plugged.
HOW TO CONNECT THE SAFETY SUPPLY HOSE
1. Pull The safety supply hoses completely out from storage compartment located at rear
of dishwasher.
2. Tighten the screws of the safety supply hose to the faucet with thread 3/4inch.
3. Turn water fully on before starting the dishwasher.
HOW TO DISCONNECT THE SAFETY SUPPLY HOSE
1. Turn off the water.
2. Unscrew the safety supply hose from the faucet.

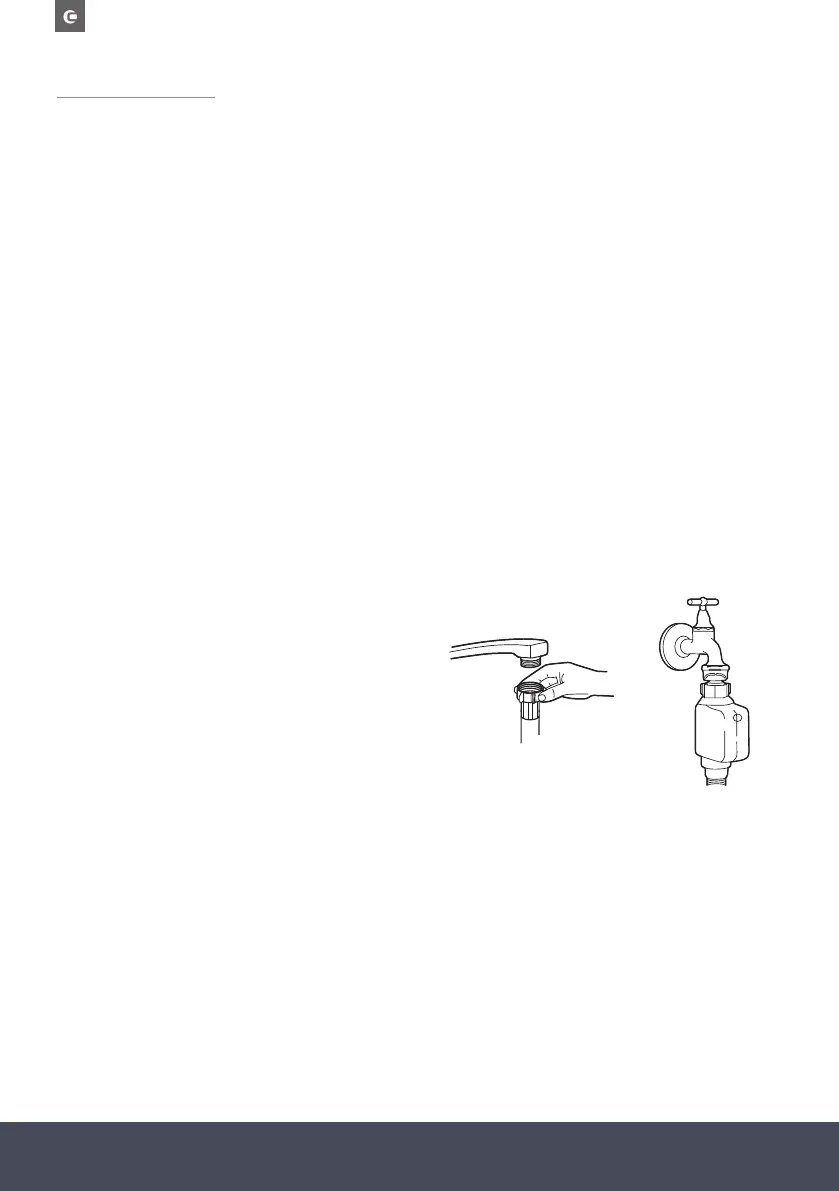

safety supply hose
ordinary supply hose
Connect the cold water supply hose to a
threaded 3/4 inch connector and make sure that
it is fastened tightly in place. If the water pipes
are new or have not been used for an extended
period of time, let the water run to make sure
that the water is clear. This precaution is needed
to avoid the risk of the water inlet to be blocked
and damaged.
