TO WIRE YOUR DISPOSER DIRECTLY INTO THE MAINS
GROUNDING INSTRUCTIONS
This appliance must be connected to a grounded, metal, permanent wiring system, or an
equipment grounding conductor must be run with the circuit conductors and connected to the
equipment grounding terminal or lead on the appliance.
IF YOU USE A BX CABLE:
1. These products are designed for household use.
2. Connect a line wire to blue lead of disposer with a wire nut. Connect the neutral wire to
the brown lead of disposer with a wire nut. Connect the bare ground wire to the ground
screw. The ground wire should be clamped and held by a strain relief bracket.
3. Do not use a rigid conduit for the wiring connection.
4. A dedicated acceptable motor switch, with the off position marked,shall be provided for
this disposer at the time of installation (not included). The switch shall be mounted in sight
of the disposer or the sink opening for the disposer.
5. If a BX cable is not used, provide a separate ground wire to the nearest reliable ground,
using the screwin the end bell for the ground wire.

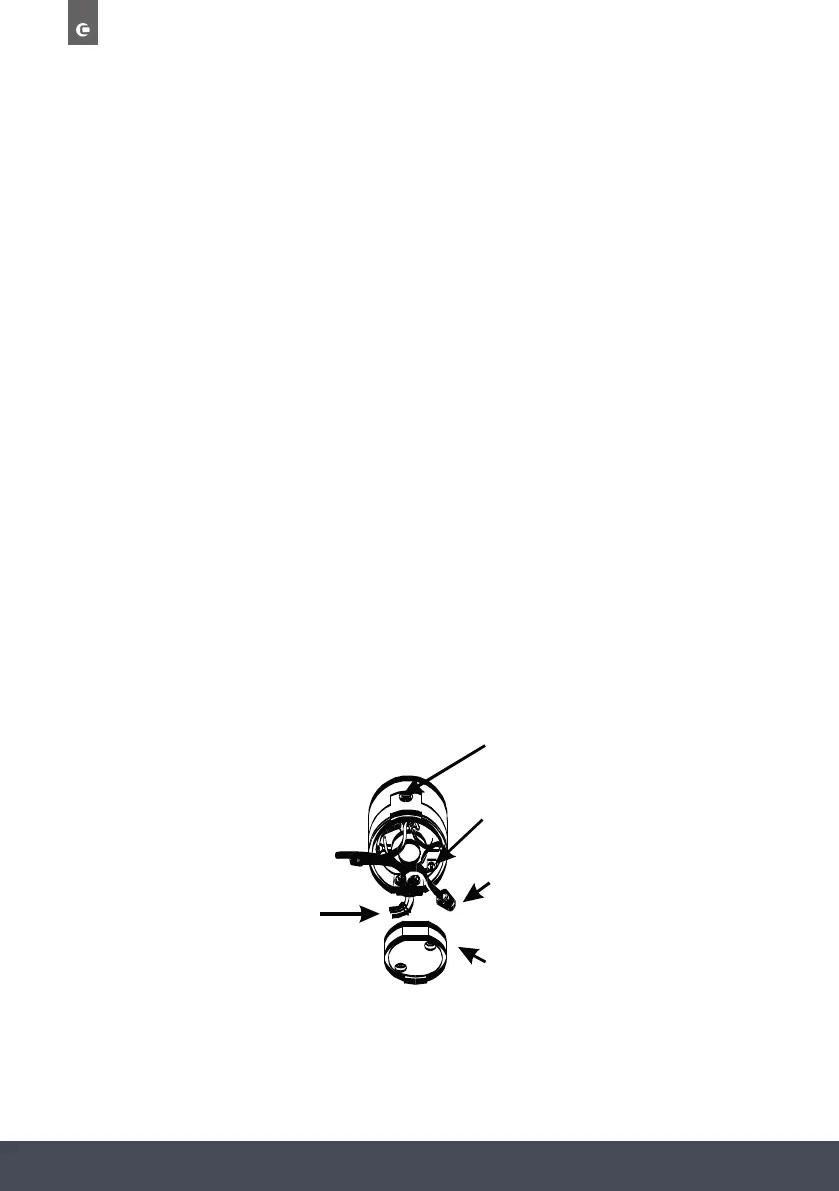

Red reset button
Ground screw
Wire nut
Remove
bottom cap
Bottom of the
disposer (end bell)
To house curren
t
or the power cord
