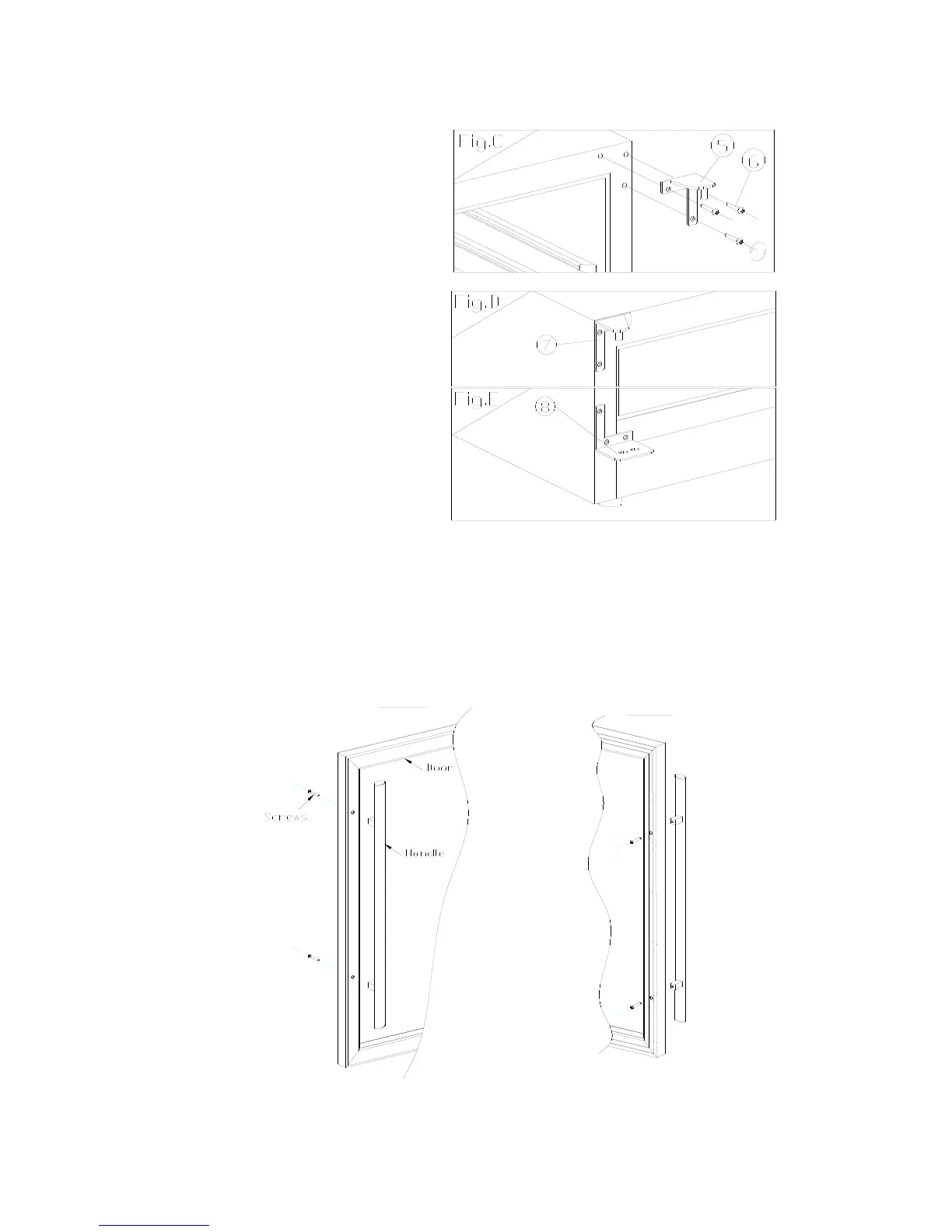

2. To remove 3 screws⑥ of right upper
Hinge, then to remove right upper⑤ &
Right lower hinges①; (See fig.C)
3. To use the screws which you removed
From right side hinges to fix left upper
& lower hinges (See Fig.D & Fig.E)
4. To rotate door at 180 degrees,
then assemble the door as per the
reverse way of remove.
Install the bar handle
Remove the door gasket on the drilling holes side to install the handle. (see below
drawing)
