18 Instruction manual Wi6135 & Wi6136 Please keep this instruction manual for future reference
INSTALLING THE FULL HEIGHT GRILLE

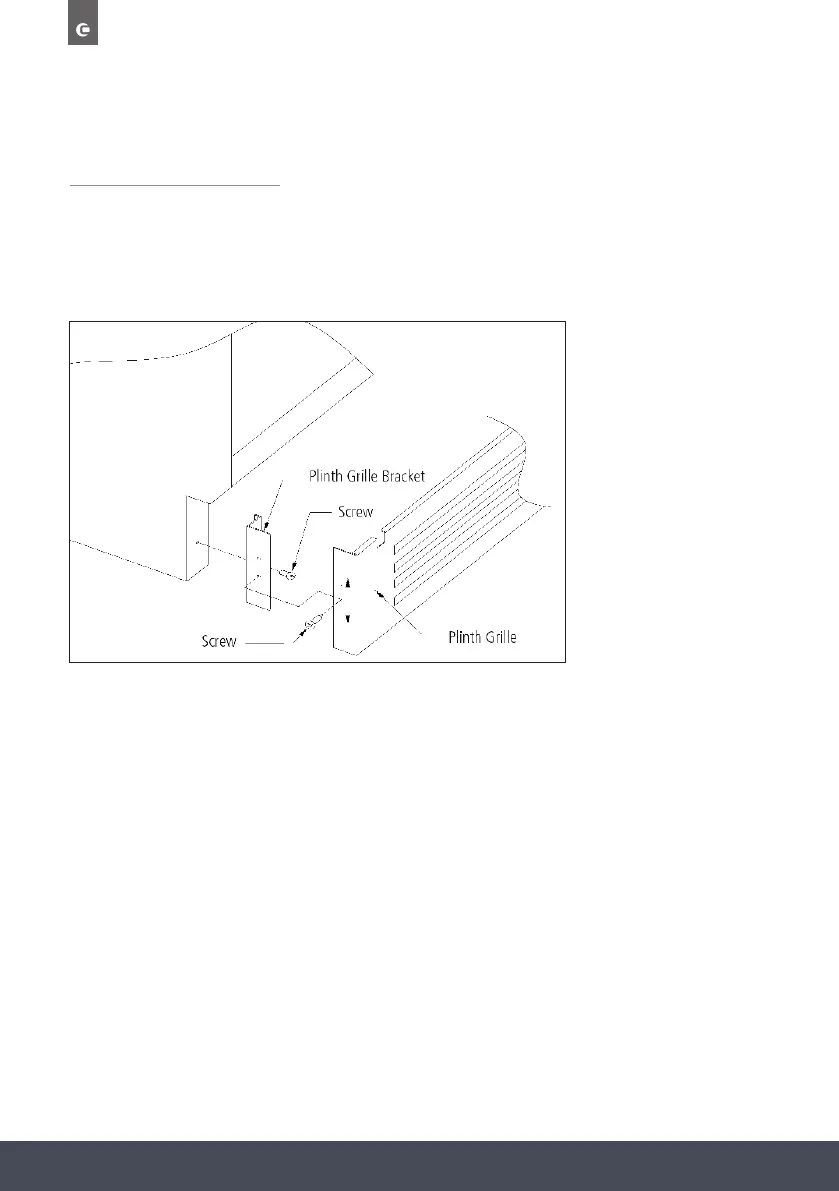

Take out the full height plinth grille and the brackets from the accessories box. Fix the brackets
to the cabinet with screws provided and fix both sides of the grille to the brackets with the
2 supplied screws as shown in below diagram.
NOTE: To be installed
with a 150mm plinth
height.
If you wish to reduce
your plinth height, the
smaller, slot-on plinth
grille (see Installing a
slot-on plinth grille)
should be used.
Full height plinth grille
only included with
WI6135 models.
