15Please keep this instruction manual for future reference Instruction manual Wi6161
HOW TO CHANGE THE DOOR OPENING
This appliance has reversible doors but is delivered with a right hand hinged door.
Should wish to reverse the hinge on your unit, follow the directions below:
1. Decorative
2. Door
3. Hinge
4. Screws

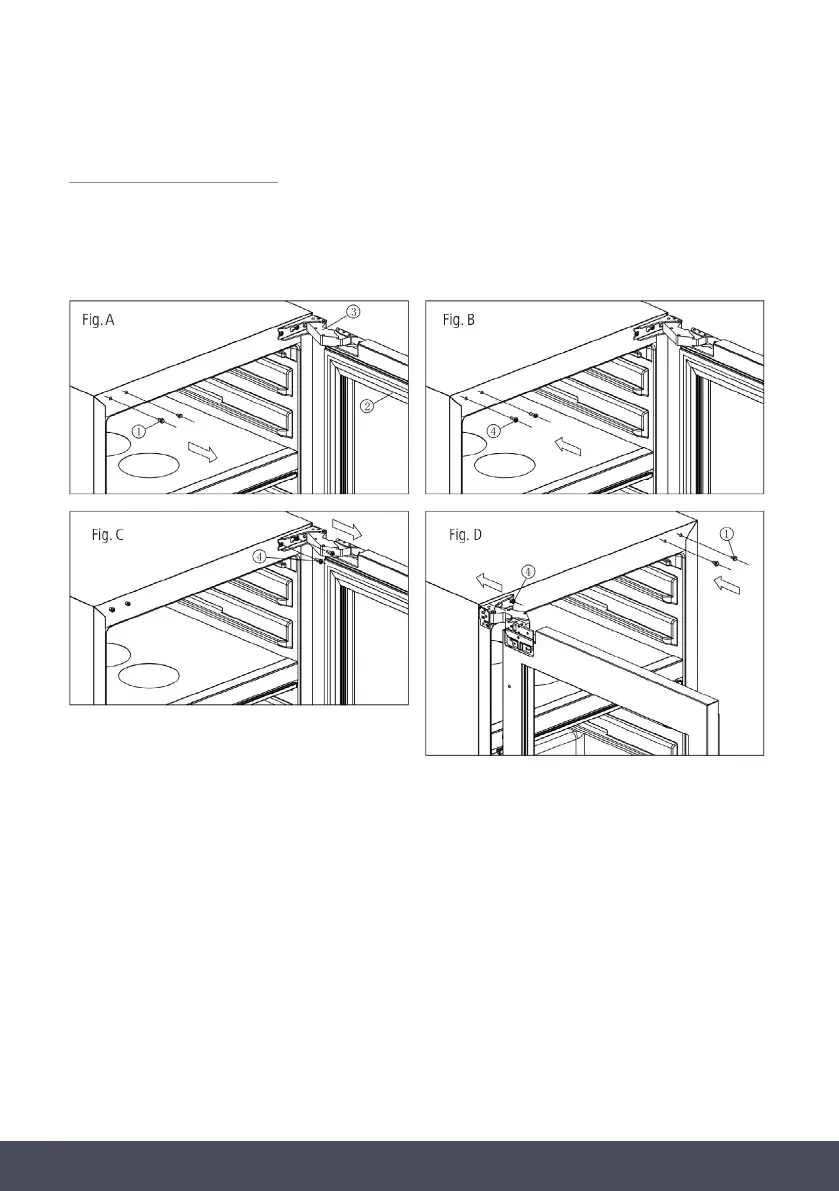

1. Open the door and remove the decorative covers (1) on the left hand side as shown
in Fig.A
2. Fix the screws into these positions a per Fig.B, but do not fasten the screws.
3. Remove all screws from both the upper and lower hinge, and then remove the door.
4. Rotate the door 180 degrees, and place the hinges into the screws fixed in Fig.B. Once
slotted onto these screws, tighten the screws to secure the hinges (Fig D).
5. Placed the decorative covers in the right hand side and screw holes as shown in Fig.D
