Caple WMi2003 - Technical Information; Washing Machine Wiring Circuit Diagram

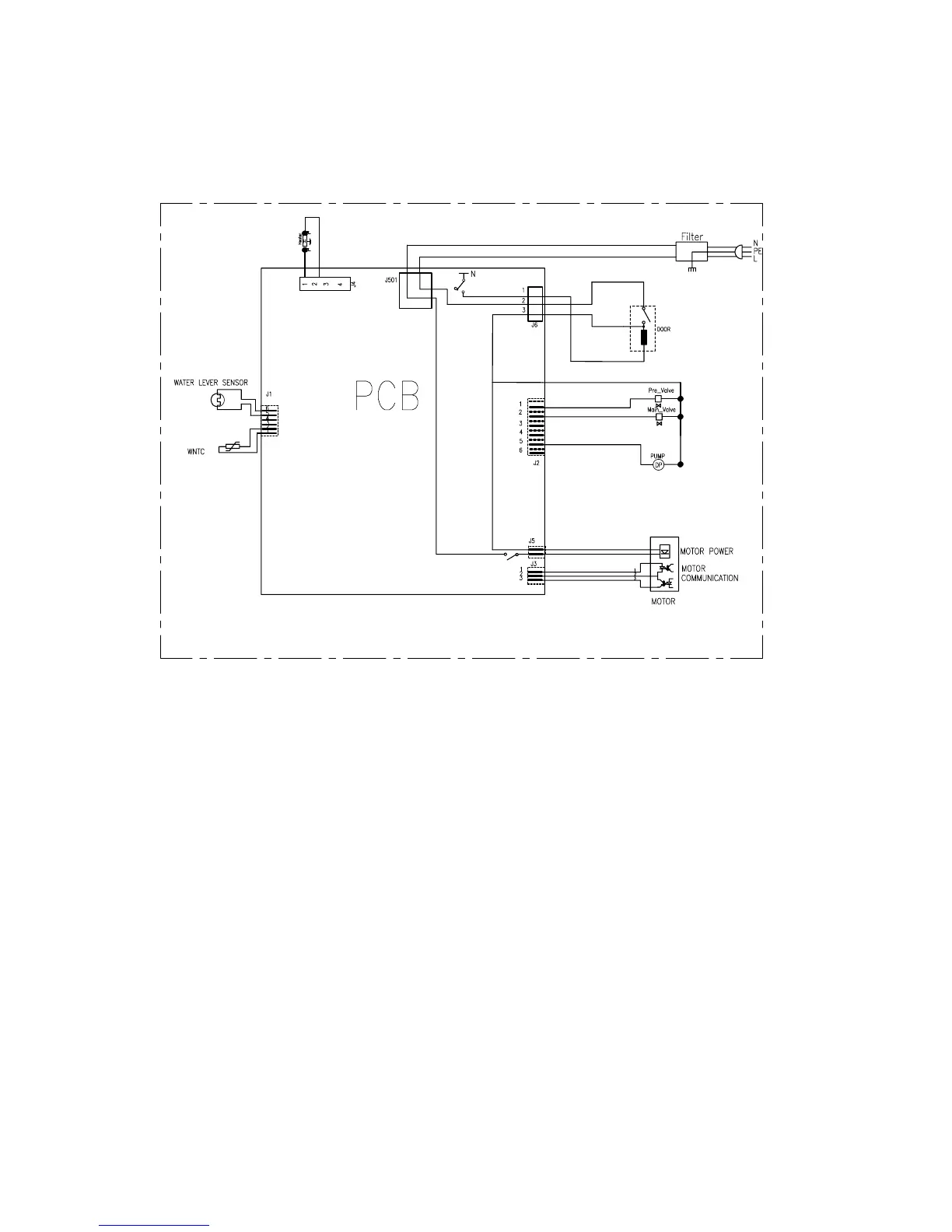

WIRING CIRCUIT
Motor--------------Motor
PCB----------------Printed Circuit Board
MR------------------Door Lock
R---------------------Heating Element
PS-------------------Drainage Pump
EVF,EVP-----------Water Inlet Magnetic Valve
P----------------------Pressure Switch
FA---------------------Interference Suppresser
NTC------------------Temperature Sensor
