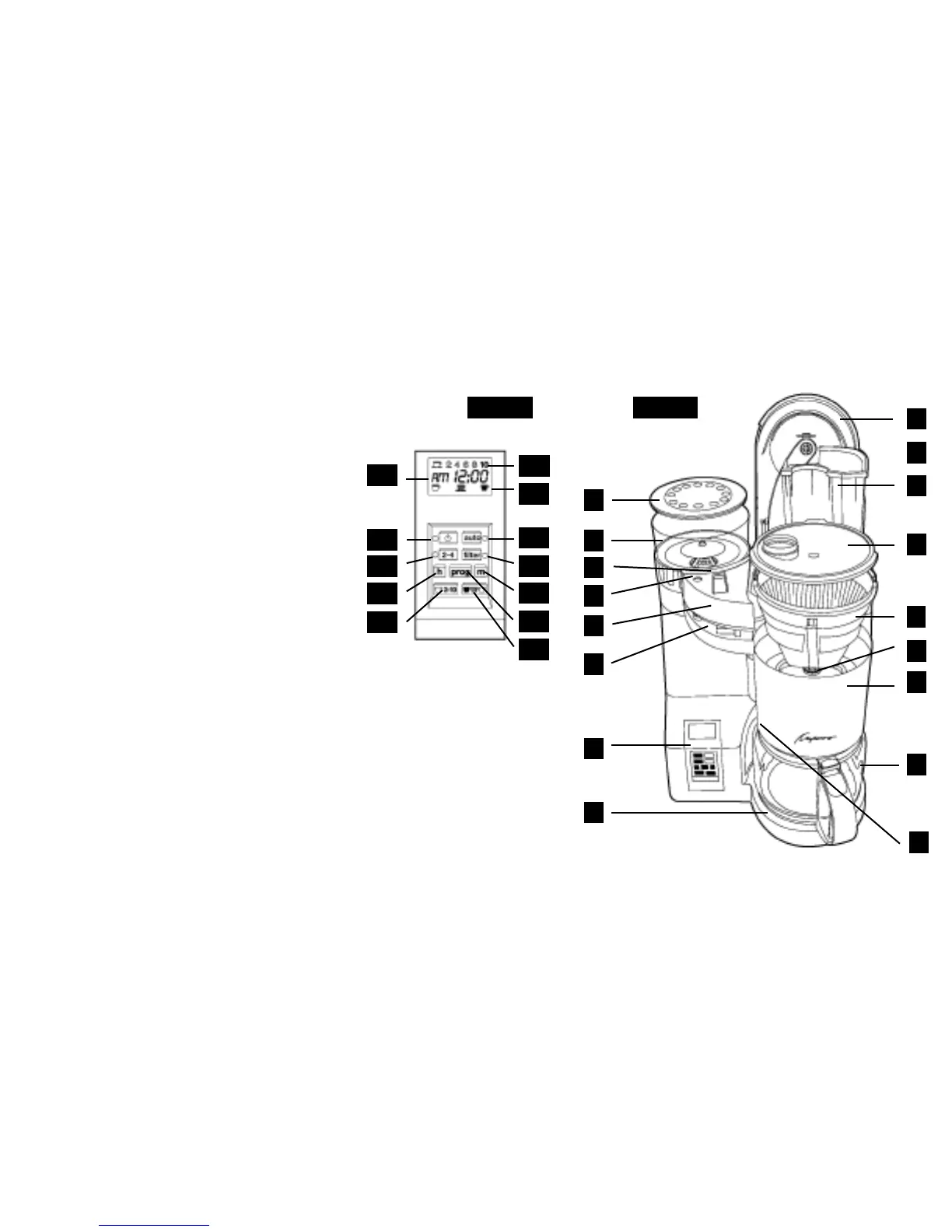

USER COMPONENTS
A Bean Container Lid
B Bean Container
C Fineness Selector Dots (not shown)
D Screw for Feeder Channel Cover
E Feeder Channel Cover with window
F Feeder Channel
G Operating Panel and Display
G1 Grind Amount Indicator
G2 Clock/Timer
G3 Strength Indicator
G4 On/Off Button with red light
G5 2–4 cup brew cycle selector with
green light
G6 “Auto” Button with green light
G7 Charcoal filter button with green light
G8 h-button to set hours
G9 m-button to set minutes
G10 Programming button
G11 “2-10” button = to set coffee amount to be ground;
changes bold number in the Grind Amount Indicator
G12 strength button: to set coffee strength; saucer
in the Strength Indicator jumps from cup to cup.
H Heating Plate
I Water Container Lid
J Hot Water Guard, not shown (see page 12)
K Water Filtration Container
L Cover Lid
M Filter Holder Insert
N Drip Stop
O Filter Holder
P Glass Carafe with snap-on lid
Q Manual filter holder release button (see page 19)
G1
G
F
E
D
C
B
A
H
P
O
N
M
L
K
J
I
G2
G3
G4
G6
G5 G7
G8
G9
G10
G11
G12
Operating Panel
and Display
Fig. 1Fig. 2
6
Q
