ASSEMBLY & INSTALLATION INSTRUCTIONS continued

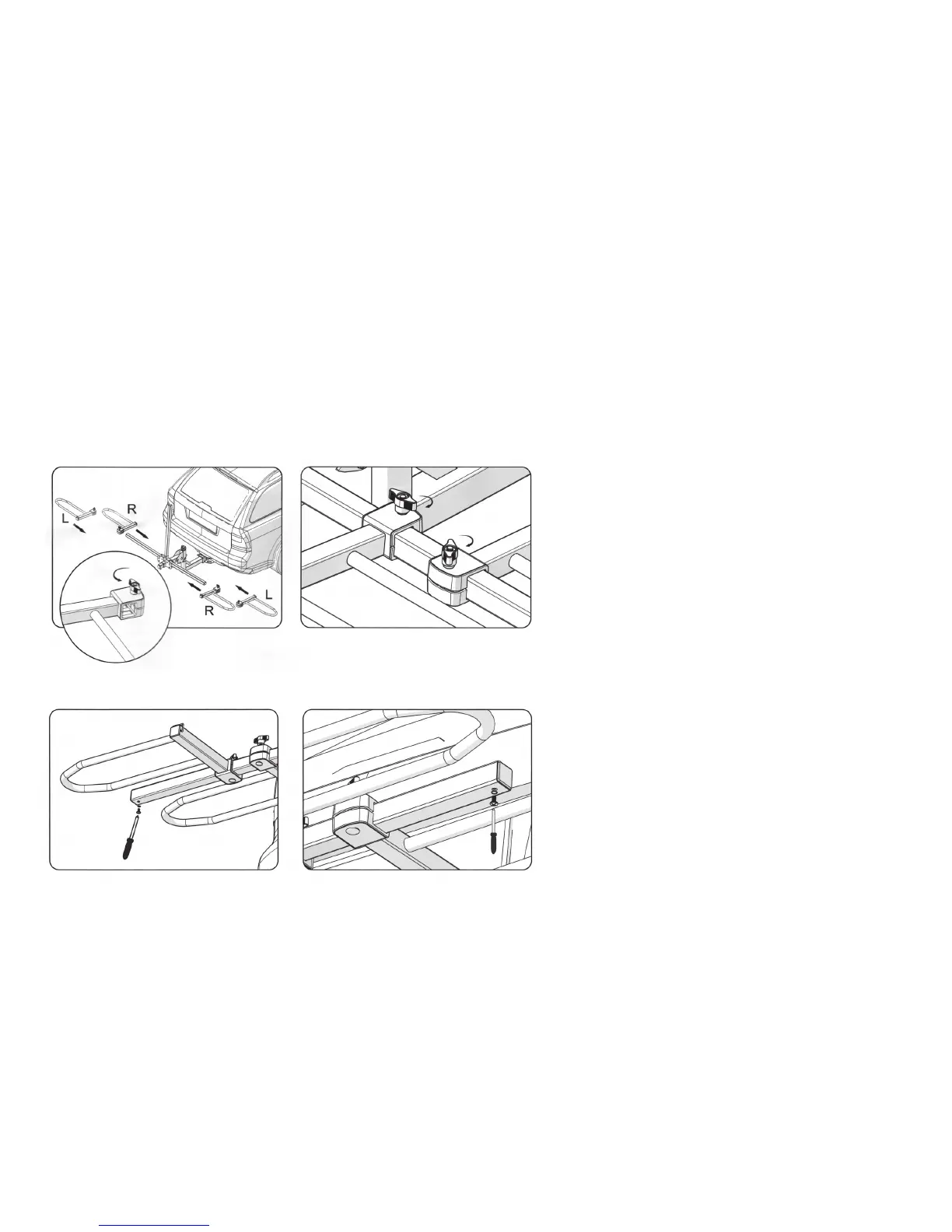

Loosen the knobs on the wheel holders
③ ④ ⑤ ⑥
and slide them onto the wheel tubes.
Install wheel holder stop screws & internal toothed lock washers with Phillips screwdriver.
