Captiva Designs E02GR009 - Page 15

Assembly Instructions
15
ENJOY YOUR CAPTIVA DESIGNS
14
15
2
3
1

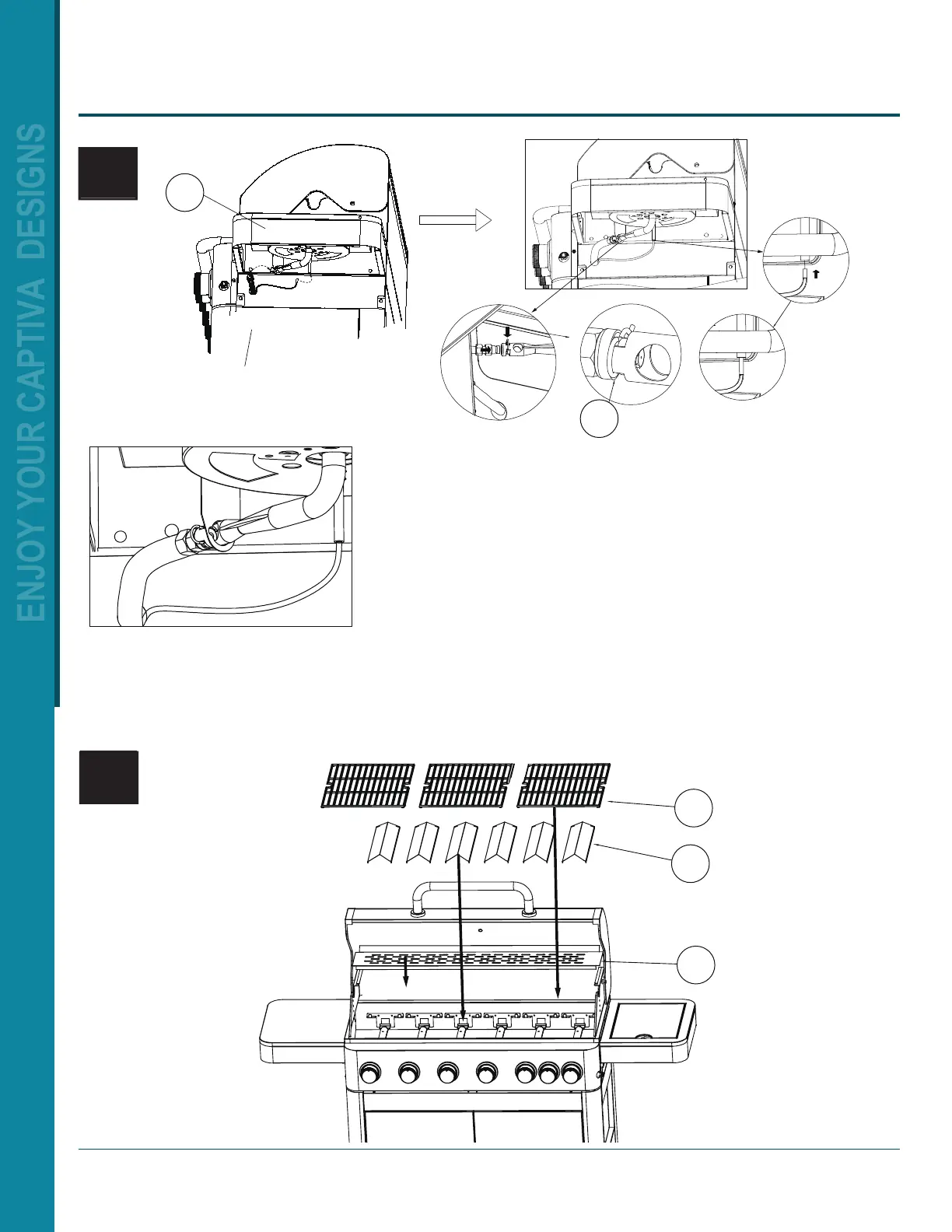

Step1: Take out the
corrugated pipe connect
gas tube to side burner.
Step2: Insert the corrugated pipe
into side burner and fix by E.
The hole here between pipe and side burner
is correct for mix Oxygen.
Step3: Connect the
ignition wire.
E Burner clamp
1 pc
23
E
Finished
