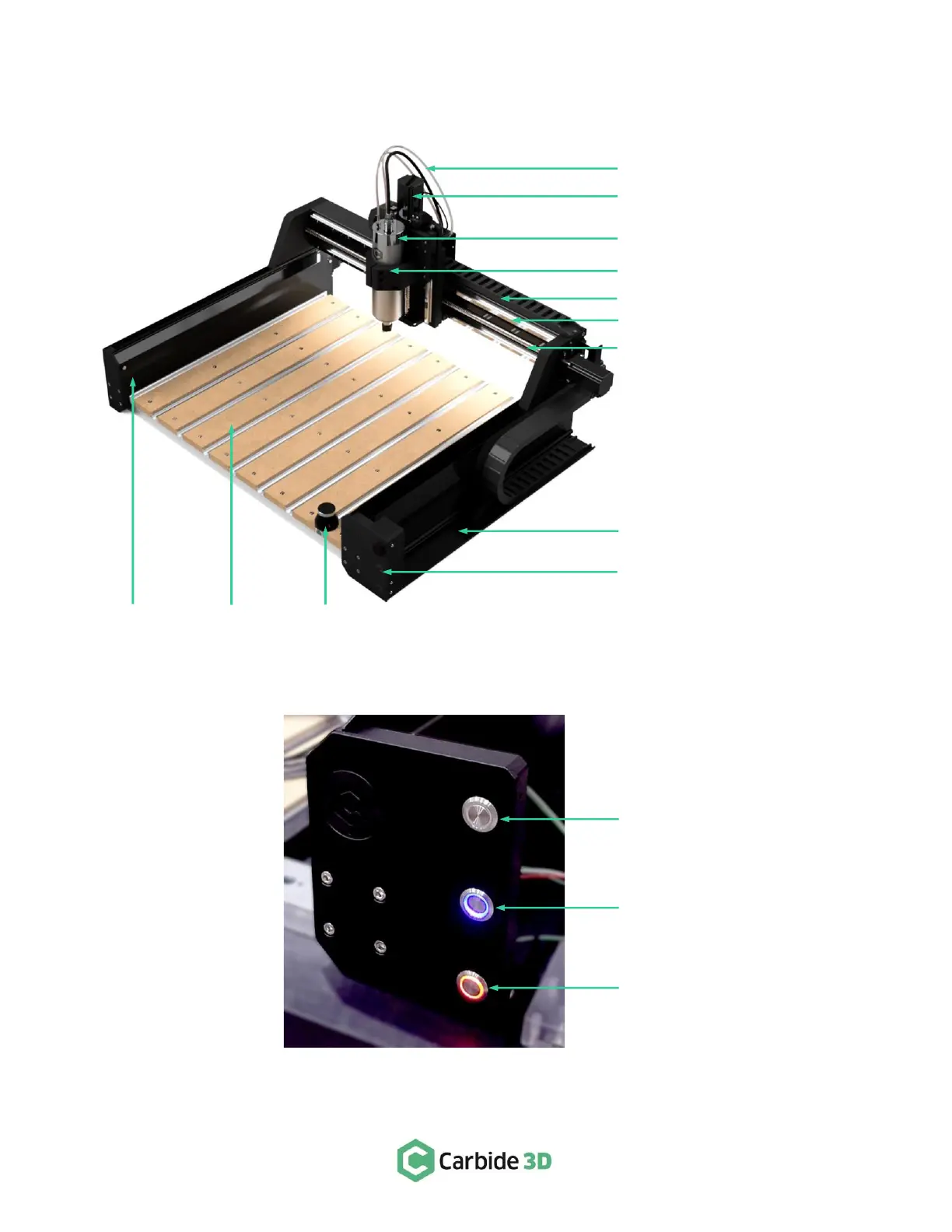

Parts of the Shapeoko HDM
Feed Hold Button
Machine Power Button
Spindle Lock-Out Button
Ballscrews (4): Z, X, YL, YR
Hybrid
Table
Y-Axis Side
Covers (2)
Machine-Control Buttons (3)
Spindle
Drag Chain Support Panels (2)
BitSetter
HDM
Stepper Motors (4): Z, X, YL, YR
Spindle Mount
Linear Rails (2 per Axis)
Drag Chains (2): X and Y
Coolant Tubes (2)
Front-Right Endplate
