Cardinal GUARDIAN User Manual

1780-M057-O1 Rev C  Hydraulic Floor Stand Tank/Hopper
4
INSTALLATION, CONT.

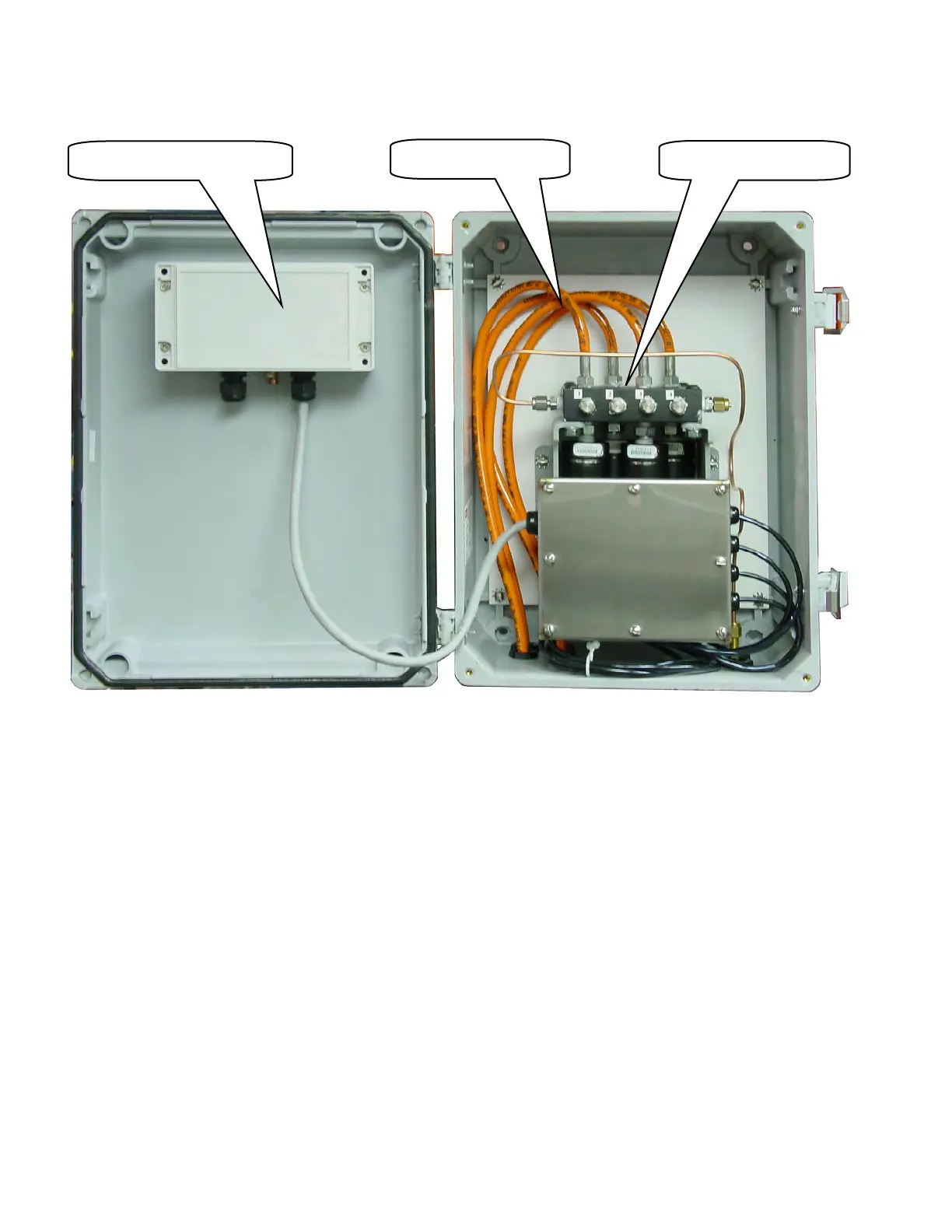

Figure No. 4
(3 & 4-Cell Totalizer Enclosure with Suppressor Package)
Connect the load cell tubes to the totalizer enclosure bulkhead fittings. The tubes are normally
installed with the tube for cell #1 being installed toward the front of the enclosure with the odd
cells on the left and even cells on the right. The tube caps should be installed finger tight then
tightened an additional 1/8 to 1/4 of a turn to lock the fitting in place. All of the cell tubes should
be installed at this time.
Suppressor Package
Manifold Fittings
Load Cell Tubes
